CEFLA RX DC - ELECTRONIC BOARDS; Power Board and Diagnostic LEDs

40
Open - 230V
Close - 115V
J2
GB
INSTALLATION
RX DC X-RAY UNIT

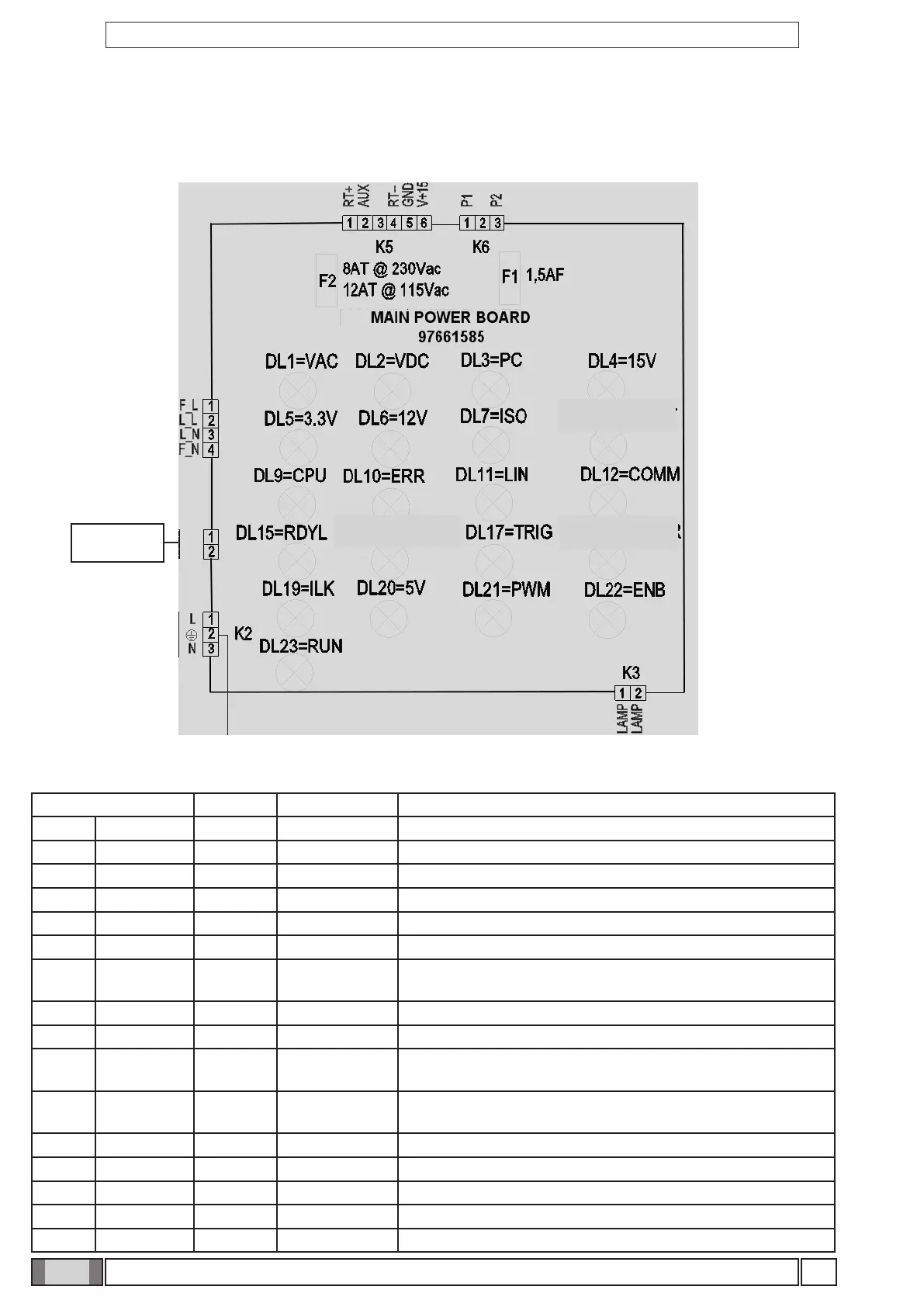

Diagnostic Led indicators
LED Colour Status Description
DL1 Vac Green On It indicates mains power on
DL2 Vdc Yellow On H jumper BUS voltage enabled
DL3 PC Yellow On It indicates bypassed pre-charge resistors
DL4 15V Green On It indicates 15V power supply on
DL5 3,3V Green On It indicates 3.3V power supply on
DL6 12V Green On It indicates 12V driver power supply on
DL7 ISO Green On
It indicates insulated power supply presence (handheld unit,
interlock and trigger)
DL9 CPU Yellow Flashing It indicates proper operation of the CPU
DL10 ERR Red O󰀨 If on, it indicates basic error condition
DL11 LIN Green Flashing
It ashes for every LIN transmission towards the head (Com-
munication OK)
DL12 COMM Green Flashing
It ashes for every LIN transmission towards the handheld unit
(Communication OK)
DL15 RDYL Green On When ready relay is activated (contact closed)
DL17 TRIG On It indicates external emission key activated
DL19 ILK Yellow O󰀨 If on, it indicates external Interlock switch open
DL20 5V Green On It indicates 5V driver power on
DL21 PWM Yellow On It indicates PWM command from head (in ready and in x-ray on)
9. ELECTRONIC BOARDS
9.1 Power Board (Code 97661585)
