41
K5
GB
INSTALLATION
RX DC X-RAY UNIT
LED Colour Status Description
DL22 ENB Green On when H jumper enabled
DL23 RUN Green On with H jumper in switching mode
Fuses
F2 - Main
fuse
230-240 Vac -> 8 A
General Fuse; if broken all leds are o
115-120 Vac -> 12 A

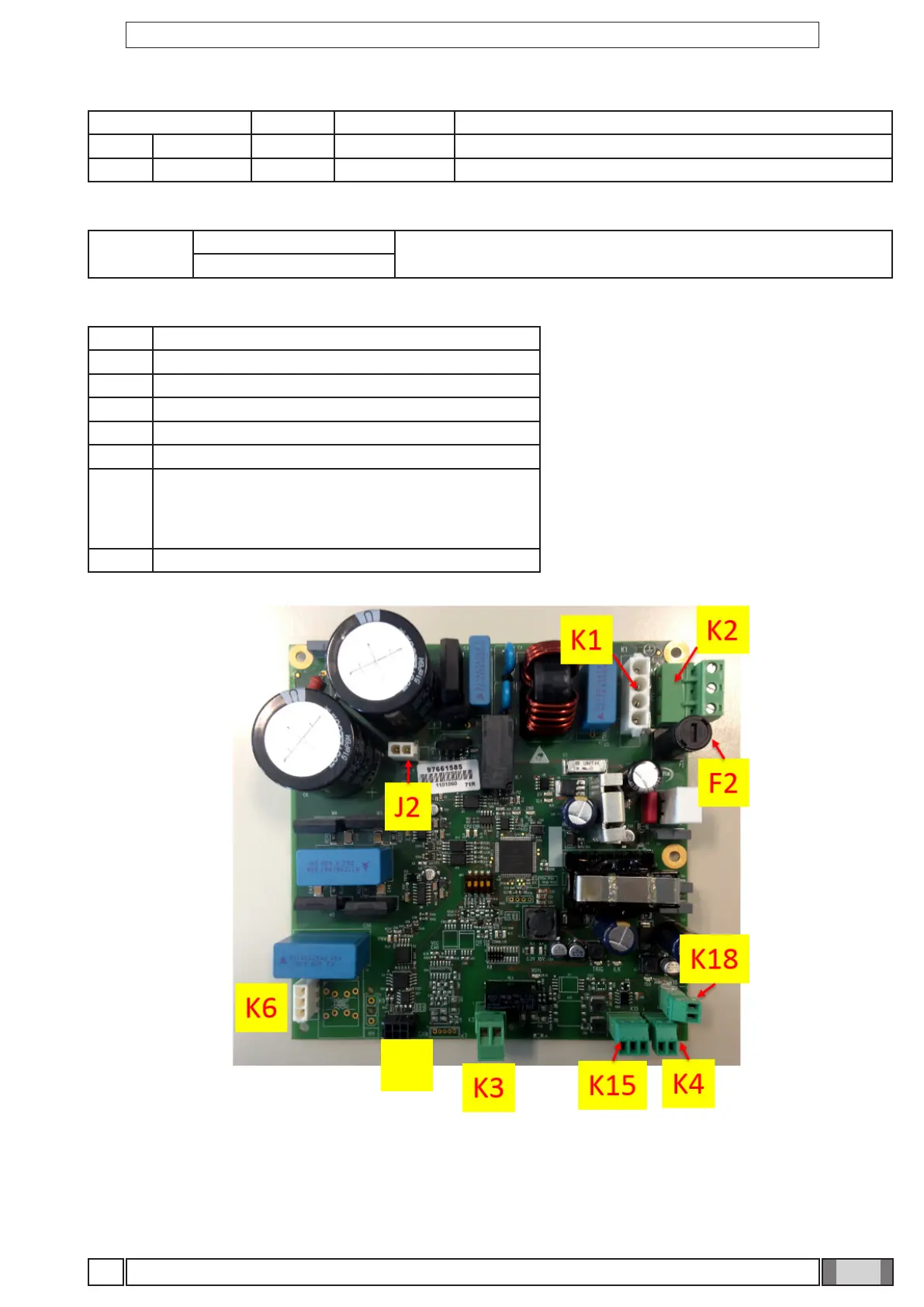

Connector list
K1 Ignition switch connection
K2 Mains power supply
K3 Contact for external lamp (max 2A - clean contact)
K4 External emission key
K5 Arm cable (head)
K6 Arm cable (power)
K15 Handheld unit connection
1 PIN Red
2 PIN White/Brown
3 PIN Blue
K18 Interlock contact
In case of board replacement check on P03 that the rmware versions of the handheld unit, X-ray head and basic board
are aligned and correspond to those of the selected update package.
In case of misalignment, carry out the rmware update procedure described in this manual.
