INSTALLATION
RX DC X-RAY UNIT

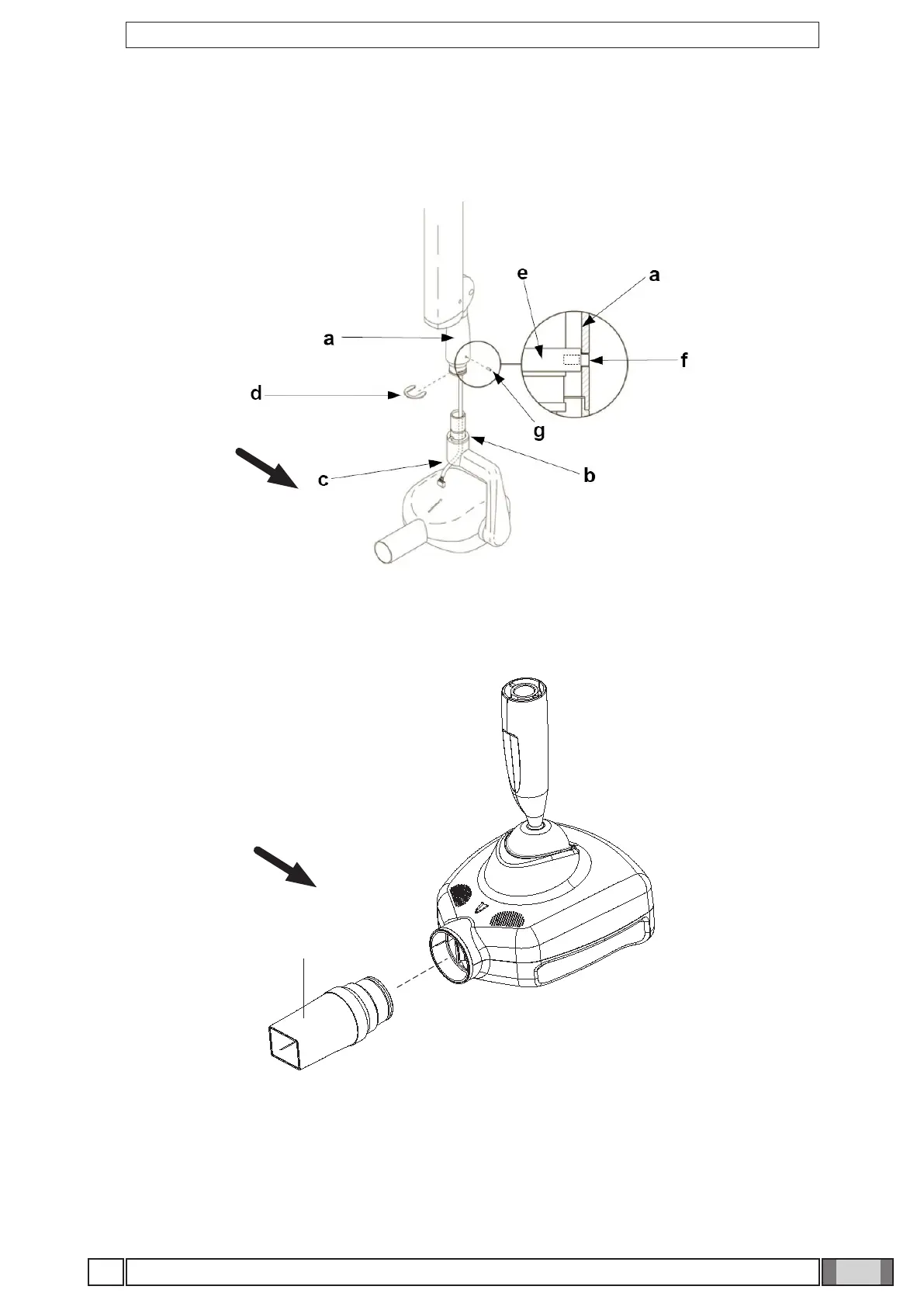

Figure O
Figure P
4.8 Installing the collimator
• Take the collimator out of the packaging:
- round in case of RX DC with standard joint
- round or rectangular in the case of RX DC with "ball end socket joint"
• Insert it in the generator and block it in place by the bayonet attachment system.
