Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 79 of 101

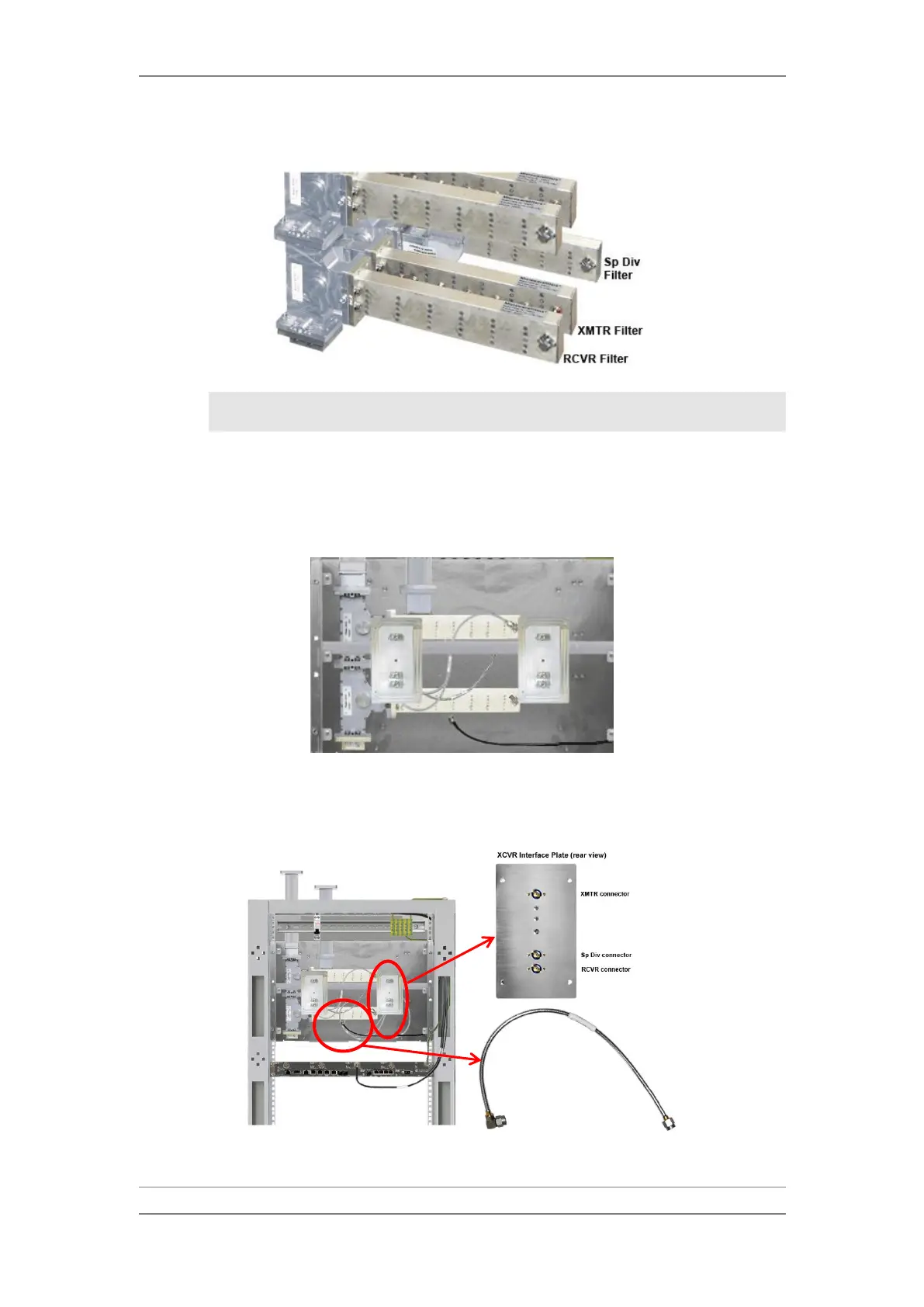

Mounting Filters
Note: To ease coax cable installation, the filters are mounted as
shown in the figure above.
6 Secure the filters using the screws you removed from the cover plates.
7 Mount the XCVR interface plate by securing it to the support bar with two
screws (mounted from the rear side of the interface plate).
Mounting XCVR Interface Plate
8 Connect coax cables between the filters and the interface plate.
Connecting Coax Cables
