CENTER
SEAT
1.
Seat
Back
(OPTIONAL)
Z.
Trim
3.
Spring
4.
Bushing
5.
Recline
Pawl
6.
Recline
Shaft
7.
Link
8.
Bellcrank
9.
Recline
Handle
10.
Seat
Bottom
*
11.
Retainer
Assembly
'
*11
/
B
DETAIL
C
*
BEGINNING
WITH
17701774
Detail
A
4
DetailB

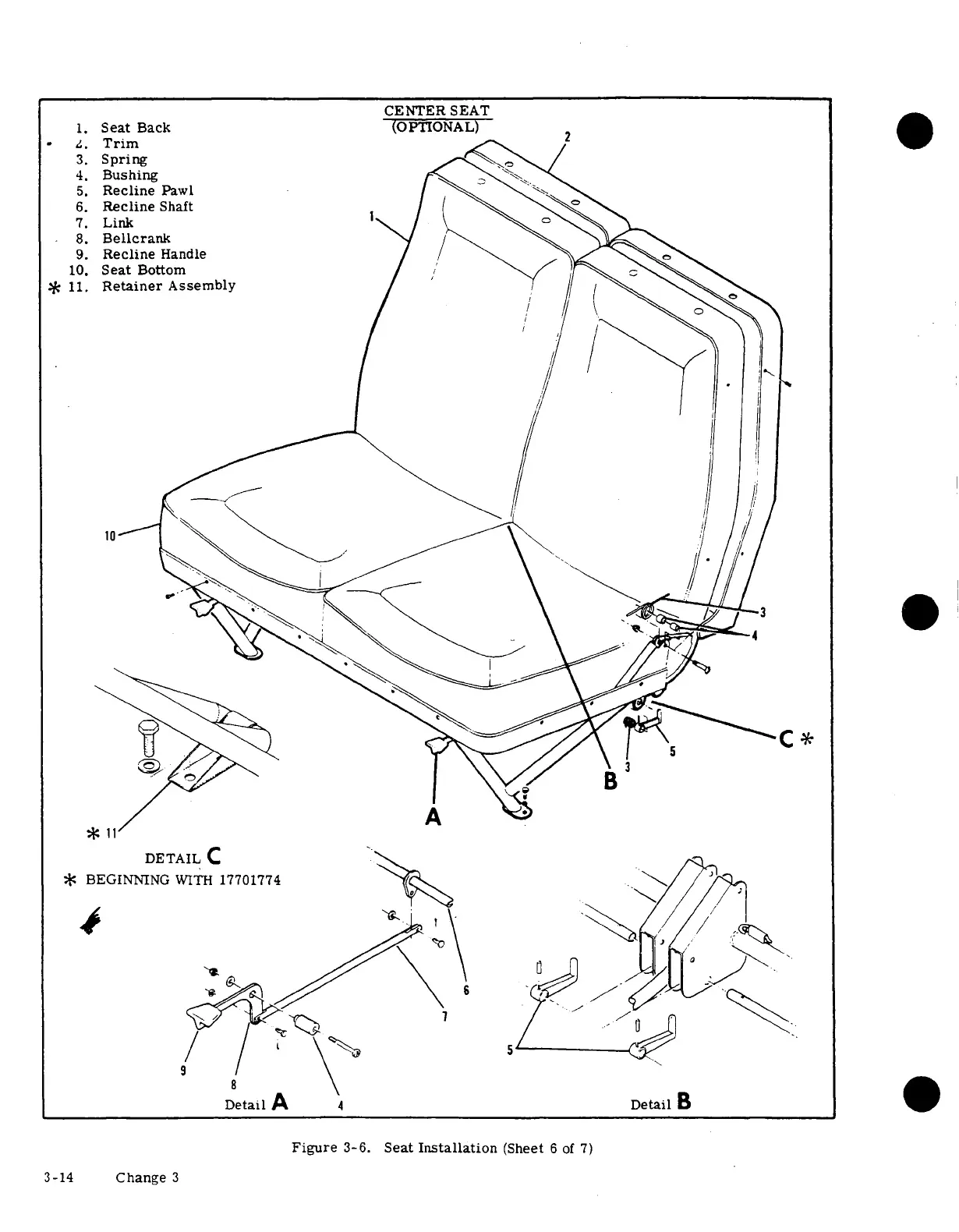

Figure
3-6.
Seat
Installation
(Sheet
6
of
7)
3-14
