AUXILIARY
SEATS
OPTIONAL
\
THRU
1969
2
3
A
-
.
I
'6 5
4
1970
THRU
1977
Detail
A
//
BEGINNING
WITH/
SERIAL
17702124
1\
/
-
1.
Seat
Back
2.
Seat
Bottom
3.
Seat
Belt
Anchor
^
4.
Hinge
Bracket
^
5.
Spacer
6.
Seat
Bottom
Structure
7.
Strap
8.
Mounting
Bracket
9.
Fuselage
Structure
10.
Bracket

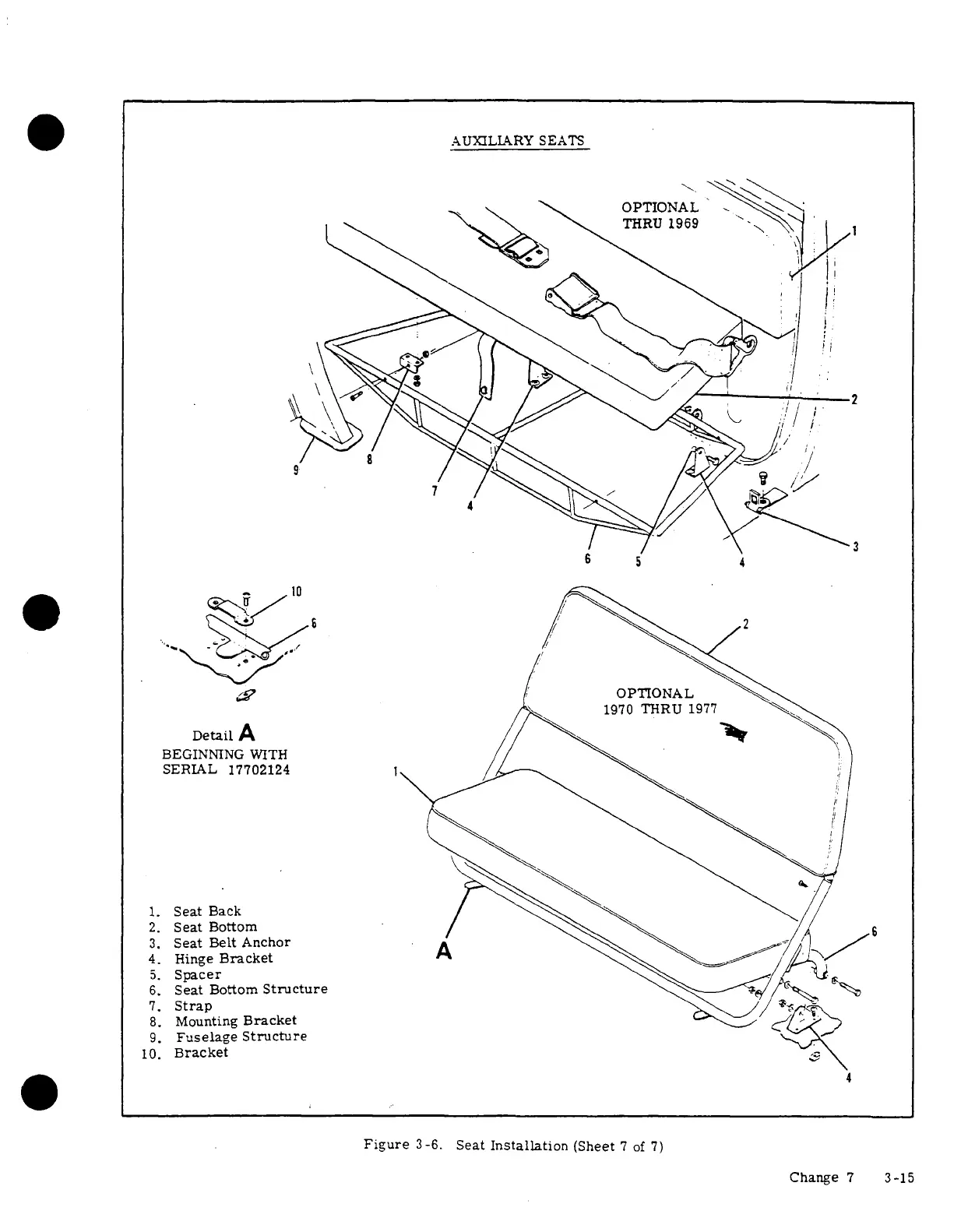

Figure
3-6.
Seat
Installation
(Sheet
7
of
7)
Change
7
3-15
