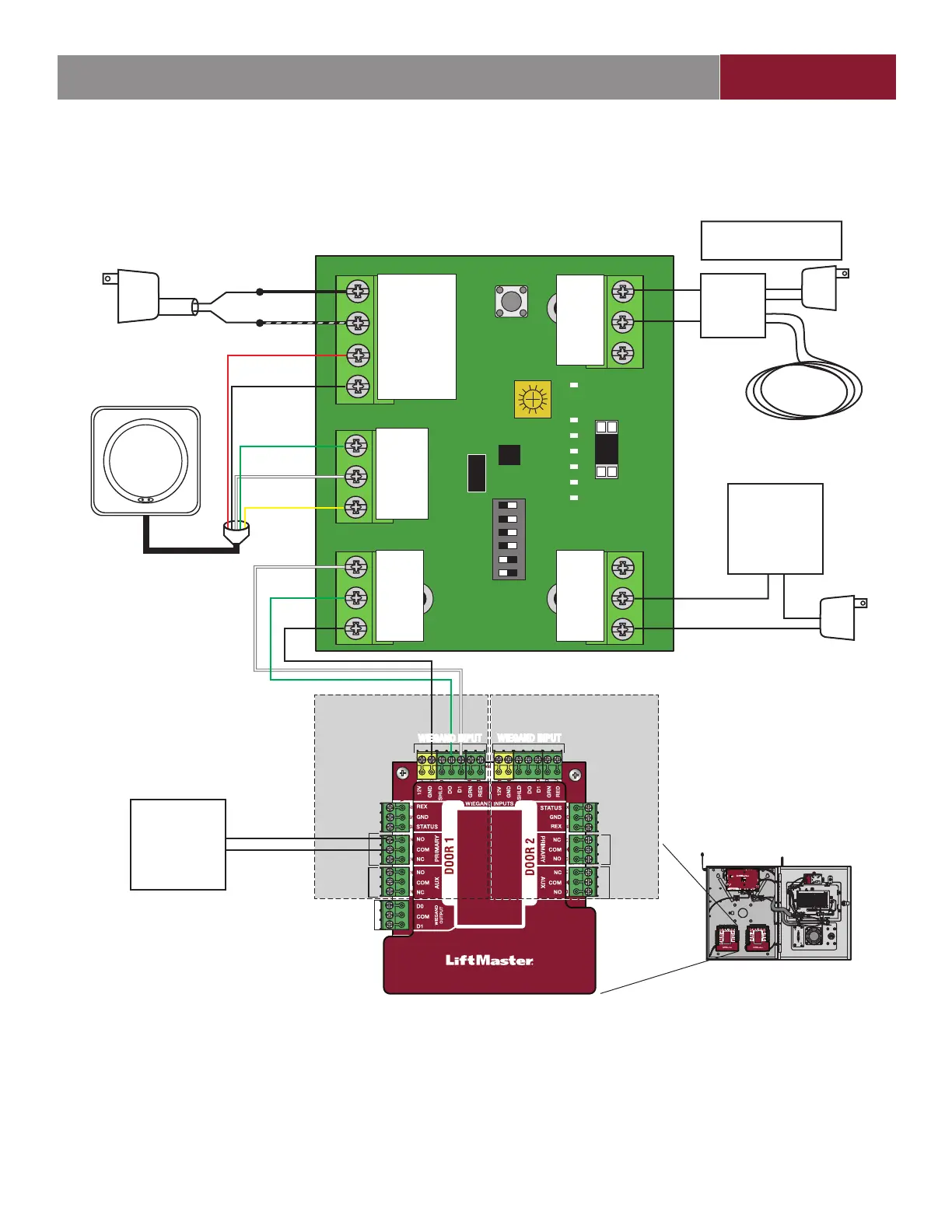

LiftMaster LMSC1000 RFID Reader Wiring Diagram
RF
LP
PWR
RESET
Serial
Power Loop
Dry ContWiegand
SET/ERR
SER I
SER 0
WO
DC
SETUP
LOOP
8SEC
4SEC
2SEC
1SEC
1
2
3
4
5
6
PWR
SET
Arming Loop Detector
(Optional)
Set Switch #5 to “ON”
to enable.
LMSC1000 RFID Reader
Power Transformer
Solid Black
Red
Black
Normally Open
Low Voltage Light
Arming
Loop
Detector
Common
24 Volts AC/DC
1 Amp max.
Green
White
Yellow
White
The gray, blue, and
brown wires from the
RFID Reader are unused.
Green
Black
DOOR BOARD 1
Door 1 Door 2
WIEGAND INPUT
PRIMARY
RELAY
AUXILIARY
RELAY
AUXILIARY
RELAY
REQUEST
TO EXIT
WIEGAND
OUTPUT
REQUEST
TO EXIT
STATUS
STATUS
Access Control System
PRIMARY
RELAY
ON
WIEGAND INPUT
ON - OFF
+12 V
- 12 VDC (GND)
+12 V
- 12 VDC (GND)
SER IN
SER OUT
GND
DATA 1
DATA 0
GND
GND
LP_INL
LP_INH
NO CONN
A
B
Normally Open
Gate Operator
Common
WIEGAND INPUT
WIEGAND INPUT
Black w/Dash
External Low Voltage
Indicator Light
(Optional)
