CAPXL / CAPXLV Capacity Resident Capacity 50,000 / Local Event History 50,000
Supply Voltage 24VDC, 60W (minimum), Class 2 Output, Level VI Effi ciency, (Power Supply
100-240VAC, 2A, 50/60Hz)
Operating Current 1.25 Amps - Without Accessories
Surge Suppression EFT: 2 kV Power Line, ESD: 15 kV HBM / 8 kV Direct / 200V MM
CAPXL / CAPXLV Operating Temperature Range - 29°C to 54°C (-20°F to 130°F)
Enclosure Stainless Steel
Storage and Shipping Temperature Range -40°C To 65°C (-40°F to 149°F)
Wiegand Inputs (4) 26-bit, *30-bit, *32-bit Mifare, *37-bit with and without facility code, and ASCII (for
keypads). 12VDC, 250mA power output (per input).
4 Primary and 4 Auxiliary Relay Outputs SPDT, Rated Load 3A at 30VDC (each)
Accessory Compatibility Refer to the accessory page for compatible accessories
Network Compatibility 10/100/1,000 Ethernet
Wi-Fi
®
Compatibility 802.11 a/b/g/n and 802.11 ac 2.4 GHz
Wi-Fi
®
Security CAPXL / CAPXLV is compatible with routers using the following security protocols: WPA2-
PSK, (AES) (Recommended), WPA2-PSK (TKIP) (Recommended), WPA2 Personal
(Recommended), WPA-PSK (AES), and WPA-PSK (TKIP). CAPXL / CAPXLV is NOT
compatible with routers using the following security protocols; WPA2 Enterprise, WEP, Open
(No password or encryption)
Wi-Fi
®
Range Up to 500 feet (152.4 m), Open Air/Line-of-Sight (range will vary depending on obstructions)
Built-in LiftMaster Passport Receiver Security+ 2.0
®
Wireless Communication to Gate Operator Up to 750 feet (228.6 m), Open Air/Line-of-Sight (range will vary depending on
obstructions), Compatible with LiftMaster Security+ 2.0
®
gate operators
CAPXLV Video Camera 1080p, Viewing angle - 135 degree diagonal

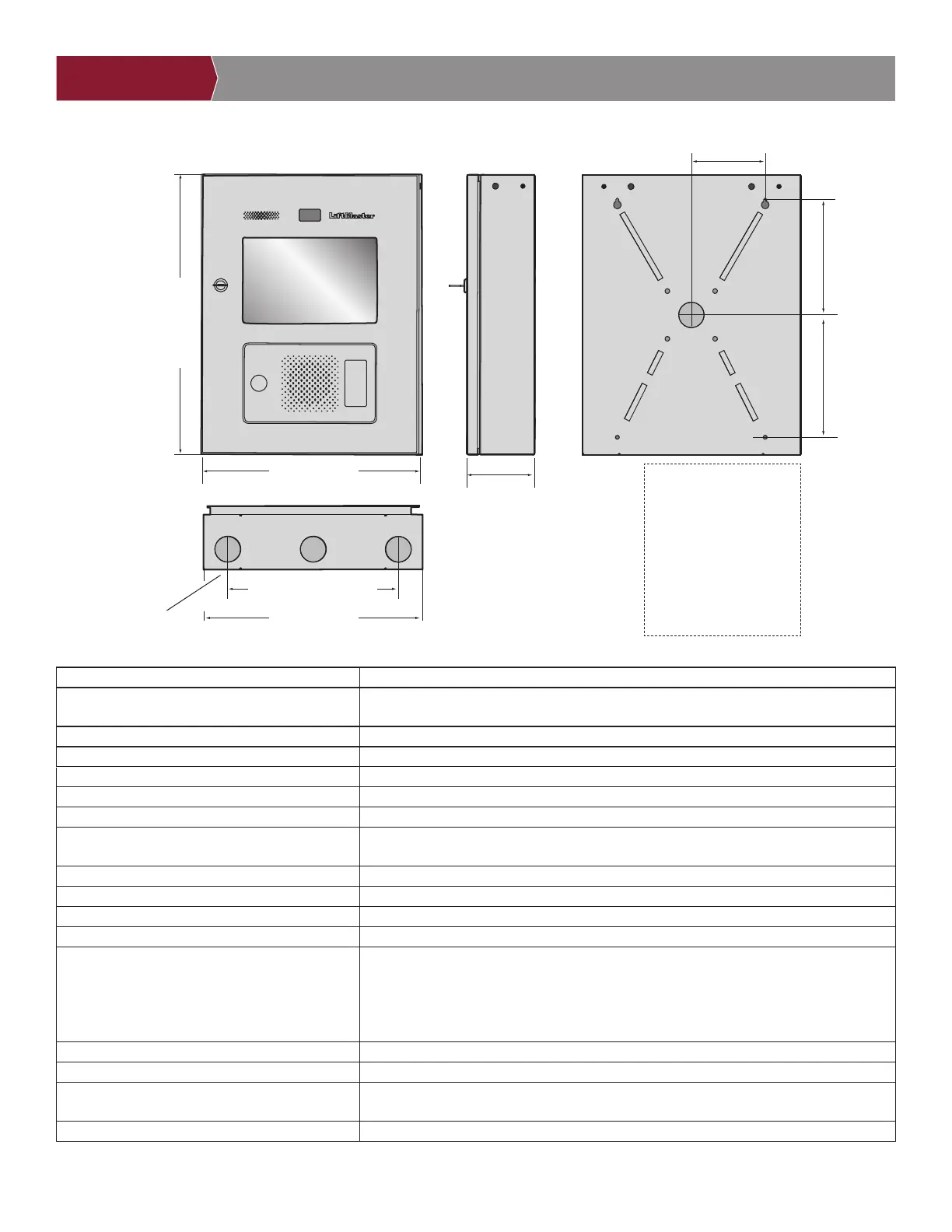

Dimensions
Specifi cations
18" (45.7 cm)
14" (35.6 cm)
4-1/4"
(10.8 cm)
FRONT VIEW SIDE VIEW BACK VIEW
BOTTOM VIEW
10-59/64" (27.7 cm)
14" (35.6 cm)
E = Electrical Wiring
P = Pedestal Mount
R = Recess Mount
S = Security+ 2.0
®
Radio Antenna
W = Wi-Fi
®
Antenna
4-3/4"
(12.1 cm)
7-13/32"
(18.8 cm)
7-7/8"
(20.0 cm)
PRE-INSTALL NETWORKINSTALL ACCESS CONTROLINTRODUCTION
RW
S
S
WW
RR
R
R
PP
PP
E
EE
E
Diameter 1-5/8"
(4.2 cm)
*NOTE: Only the 26-bit weigand protocol is compatible in UL installations. Wi-Fi
®
and wireless ranges were not evaluated by UL.
