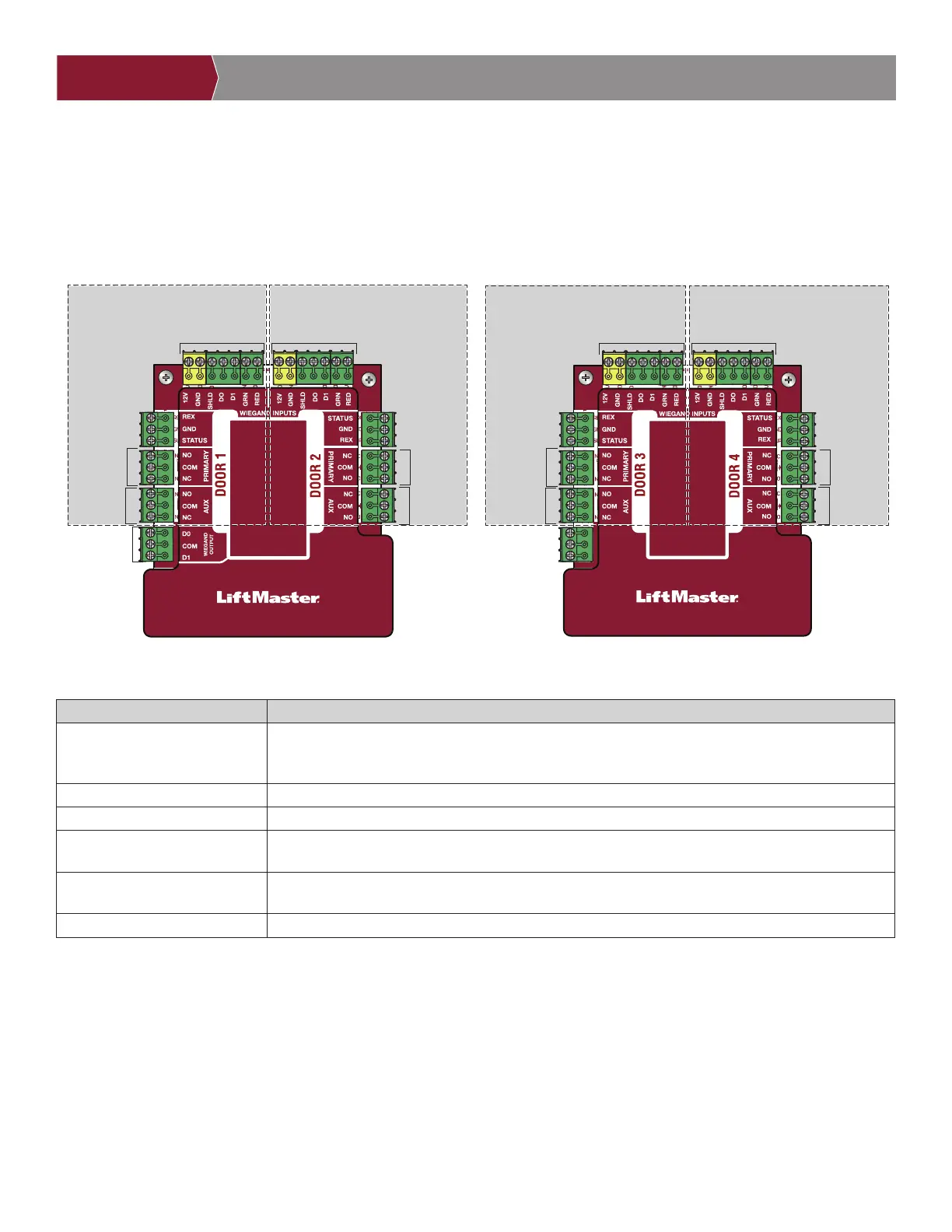

Door Board Overview
The CAPXL / CAPXLV has a combination of access control inputs/outputs on the Door Boards that work in conjunction to
control up to 4 access points.
INPUT/OUTPUT USED FOR
Wiegand Input Proximity Readers, ASCII keypads, RFID readers transmitting 26-bit *30-bit, *32-bit Mifare, *and
*37 bit with or without facility code. (12 Vdc Power for readers only. Do not use to power external
devices)
Request to Exit External Free Exit Loop Detectors, Push Buttons, and Proximity Sensors
Status Door Sensors, Supervised Gate Operators, and EOL (End of Line) Wiring
Primary Relay Closed Door Sensor, Closed Gate Sensor, Supervised with EOL (End of Line) or unsupervised Gate
Operators, Door Strikes, and Maglocks
Auxiliary Relay Gate Operator, Door Strikes, Alarm Shunt, Maglocks and Lights (for control only - power to be
provided by external supply
Wiegand Output 26 Bit Access Granted Activity for integration with third party systems
*NOTE: Only the 26-bit weigand protocol is compatible in UL installations.
