ChargePoint CPF50 - Pedestal; Cable Management Kit (CMK)

Introduction
7
Pedestal

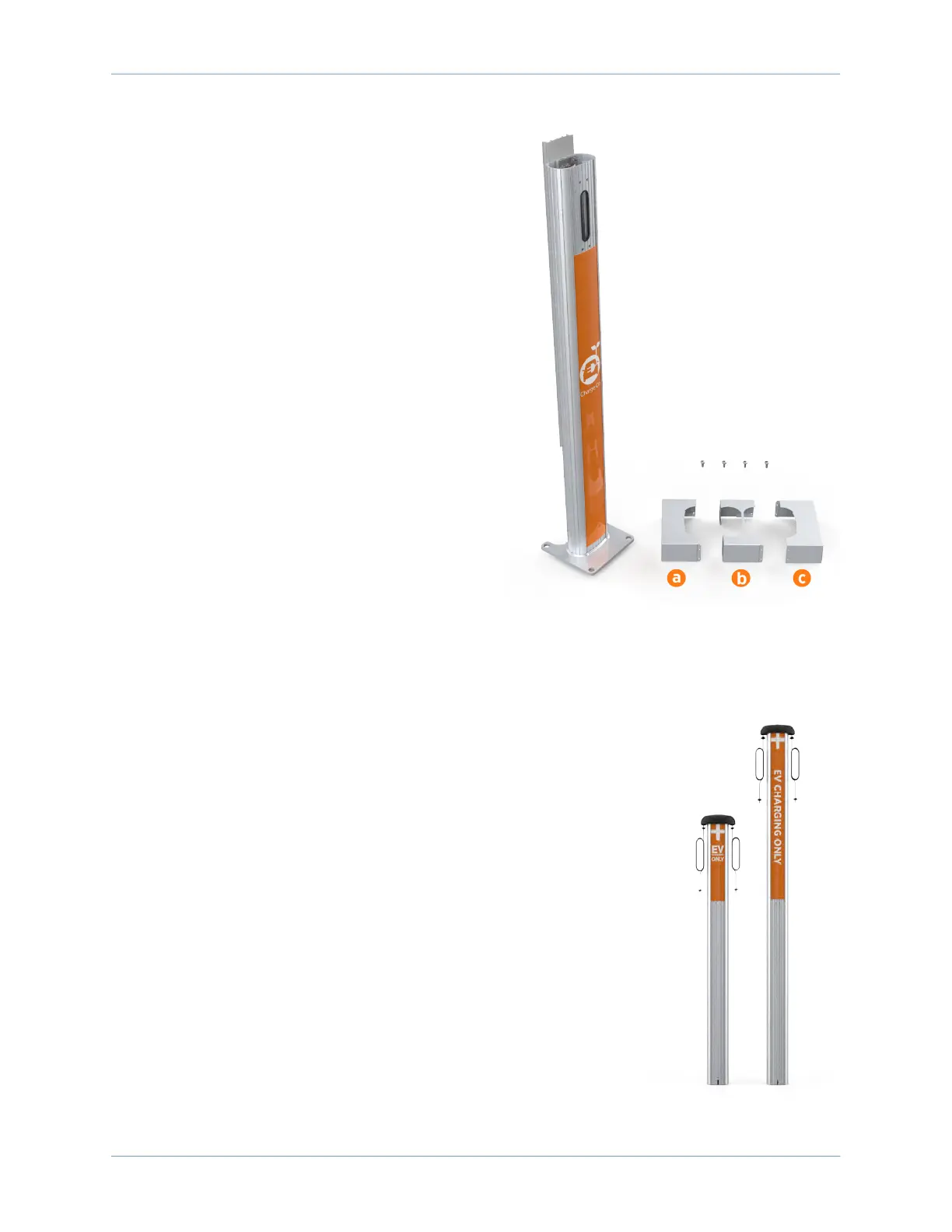

The pedestal box contains:
• Main body
• Pedestal covers (3)*
• Front (a)
• Back with CMK (b)
• Back without CMK (c)
• Pedestal CMK spacer (attached to rear of main
body)
• 8-32 x 3/8 in screws (4)
• Charging station sign (attached to front of the
main body)
Determine which back cover you need for your
installation. Discard the remaining back cover.
Note: To prepare the installation site for installing a
pedestal mount charging station, you also need the
contents of the Pedestal Mount Kit. This ships
separately and should already be installed prior to
unboxing and installing the CPF50 charging station
to allow for concrete or epoxy cure times. For
additional information about site preparation,
please see the CPF50 Site Design Guide.
Cable Management Kit (CMK)
The CMK comes in two sizes: CMK6 or CMK8.
• The CMK6 works with a 5.5 m (18 ft) charging
cable.
• The CMK8 works with a 7 m (23 ft) charging
cable.
The CMK includes:
• Cable Management assembly with pre-installed
“EV Charging Only” sign and attached knot
bearings
• Cable clamps (2 extra sets)
Note: The cable clamps are pre-installed on the
charging cable and these extra sets will not be
used when installing the CPF50.
