HIPOT Tester 19051/19052/19053/19054 User’s Manual

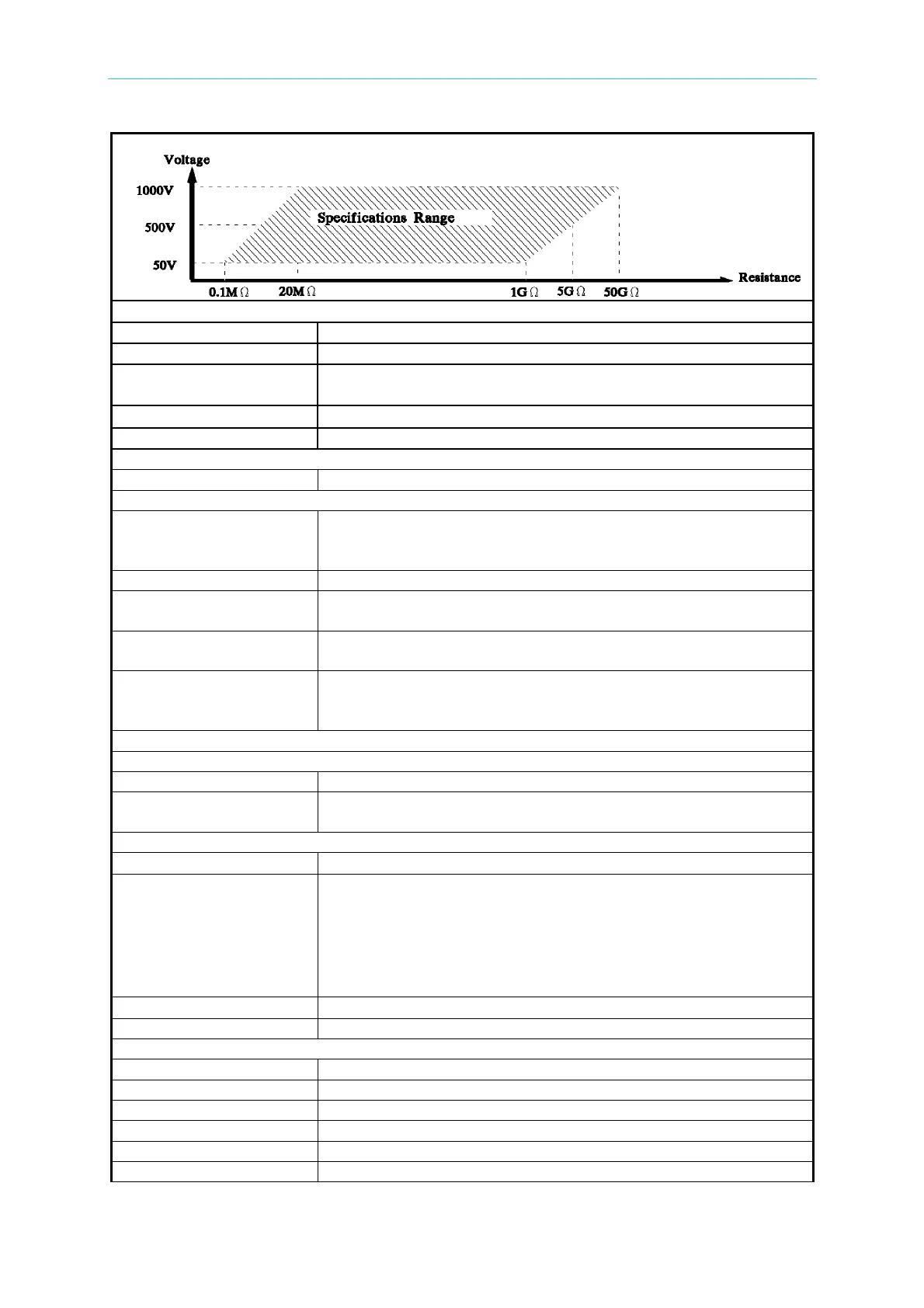

Secure Protection Function
Fast Output Cut-off 0.4mS typical after NG happen
Fast Discharge 0.2S, Typical
Ground Fault
Interrupt
0.5mA ± 0.25mAac (ON), OFF
Continuity Check
1Ω ± 0.2Ω, ON/OFF
Panel Operation Lock YES
Memory Storage
Memories, Steps 99 steps or 99 groups for total 500 memory locations
GO/NG Judgment Window
Indication, Alarm
GO: (Short Sound)
NG: W-Arc, W-Hi, W-Lo, IR-Lo, IR-Hi, GFI, Continuity-fail (Long
Sound)
Remote Connector
Rear Panel 9 Pin
D-type Connector
Input: Start, Stop, Interrupt (at 11 pin terminal block)
Output: Under test, Pass, Fail
TEST/RESET
Control
Low - active control, (24V open voltage typical).
Input requirements
Input time duration: 20msec. approx.
The above input circuits are not isolated from other internal
circuits.
Options
Interface Card
GP-IB Interface Talk, Listen all function
RS232 (standard
option)
Baud rate: 300 ~ 19200, data bits: 8, stop bit: 1
Ambient Temperature and Relative Humidity
Specifications range
18 to 28°C (64 to 82°F), ≤ 70% RH.
Operable range
Maximum relative humidity 80% for temperature up to 31°C
(88°F). Decreasing linearly to 50% relative humidity at 40° C
(104°F)
Altitude up to 2000m.
Indoor use only.
Pollution degree 2
Storage range
-10 to 60°C (-14 to 140°F), ≤ 80% RH.
Installation Category CAT II
Power Requirement
Line Voltage AC 100V, 120V, 220V ± 10%, 240V +5 -10%
Frequency 50 or 60 Hz
Power No load: < 100W
Consumption With rated load: 500W max.
Dimension 320W x 105H x 400D mm
Weight 19051, 19052: 14kg approx.
