HIPOT Tester 19051/19052/19053/19054 User’s Manual

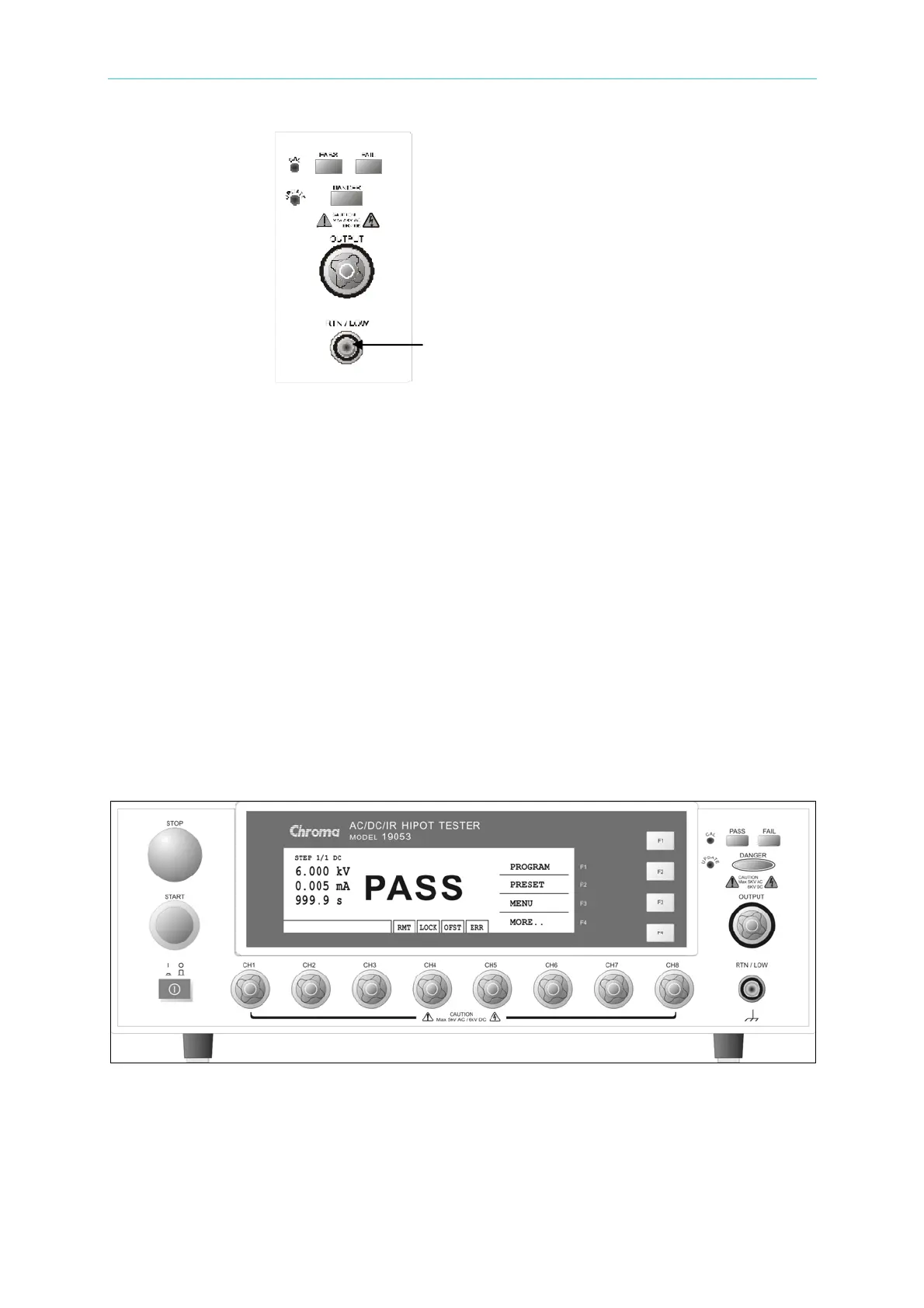

The test cable of the terminal
should be connected and locked
well.
Figure 3-2
4. Connection test of high voltage output terminal
After the test cable of COMMON terminal has been connected. Then follows the below
procedures to connect high voltage output cable.
• Press [STOP] key firstly.
• Confirm DANGER indication LED is not light.
• The test cable of COMMON terminal with high voltage output terminal is short,
confirm there is no voltage output.
• Plug high voltage test cable in high voltage output terminal.
• Connect the test cable of COMMON terminal to DUT finally, and then high voltage
test cable also be connected.
5. Test stop
When the test is over the and no need to use, or the tester is not run status or needs to
exit during use, please be sure power switch is on 0 (that is turn off power). As Figure
3-3 is shown.
Figure 3-3
6. The dangerous area under test mode
It is very danger to touch high voltage area under operation status. Such as touch DUT,
test cable, probe and output terminal.
3-2
