Automatic Transformer Test System 3300/3302 User’s Manual
Use the forward key to move the block area to the pin input box of the transformer (2).
and input : [7] [Enter] [8] [Enter]
Use the forward key to move the block area to the pin input box of the transformer (3).
and input : [9] [Enter] [1] [0] [Enter]
Use the forward key to move the block area to the pin input box of the transformer (4).
and input : [1] [1] [Enter] [1] [2] [Enter]

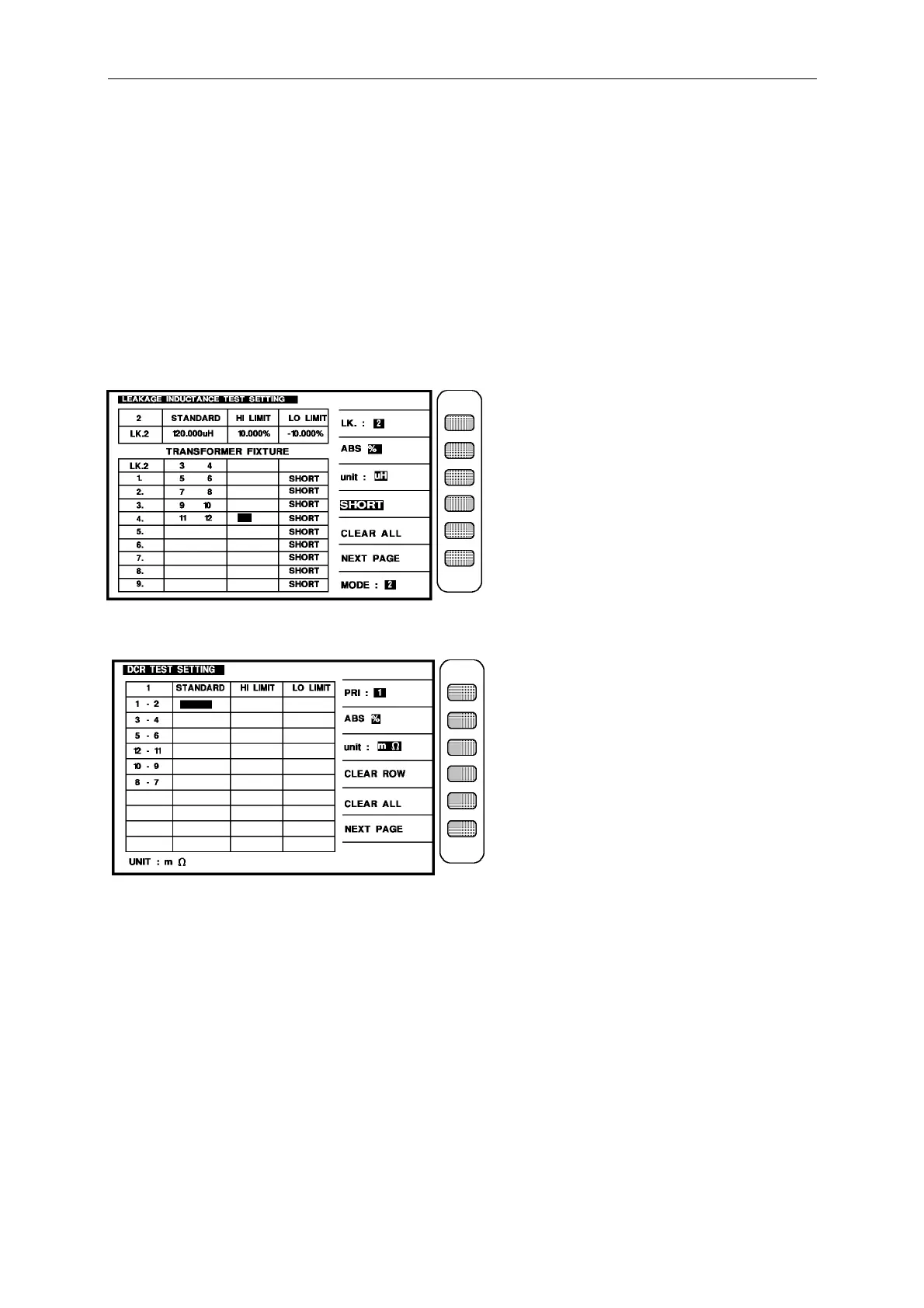

After input the Lk2 value, the screen is as below:
Then press [ENTER] to enter next setting screen as below: (DCR)
When into this screen is entrance to the judgment setting of transformer DC resistance, it is
also still guidable operation, just according the block area on the screen and number keys to
input the pin number, press [ENTER] then automatically change to next pin setting item, use
the same method till the last item of pin number on the same screen, press [ENTER] then
automatically change to next the setting screen of parameter.
Ex.: The transformer DCR and high/low limit of the every windings are following:
