Automatic Transformer Test System 3300/3302 User’s Manual
When into this screen is entrance to the judgment setting of transformer pin short, it is also
guidable operation, just according the block area on the screen and number keys to input the
pin number, press [ENTER] then automatically change to next pin setting item, use the same
method till the last item of pin number on the same screen, press [ENTER] then automatically
change to next the setting screen of parameter.
Ex.: The pin of the testing transformer pin short are following:
PIN 2 – 3, PIN 4 – 5, PIN 8 – 9, PIN 10 – 11.
Then the input is as below:
Use the forward key to move the block area to the pin input box of the transformer (Short 0)
and input : [2] [Enter] [3] [Enter]
Use the forward key to move the block area to the pin input box of the transformer (Short 1)
and input : [4] [Enter] [5] [Enter]
Use the forward key to move the block area to the pin input box of the transformer (Short 2)
and input : [8] [Enter] [9] [Enter]
Use the forward key to move the block area to the pin input box of the transformer (Short 3)
and input : [1] [0] [Enter] [1] [1] [Enter]

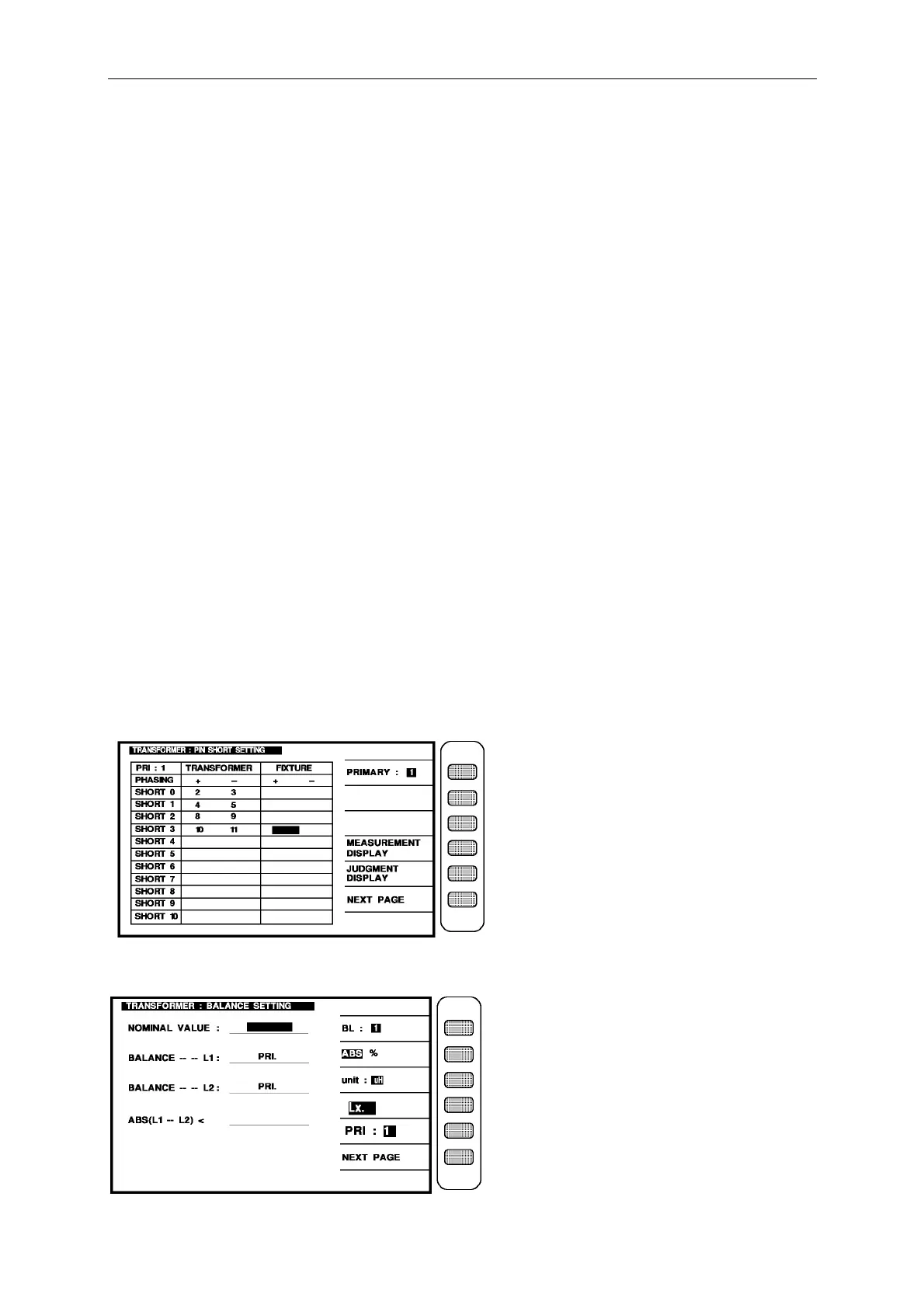

After input whether the pin short setting, the screen is as below:
Press [ENTER] again then enter next setting screen as below : (BALANCE)
