HIGH VOLTAGE CHARGING OPERATION
SAE J1772 CHARGING INLET
Your vehicle uses an industry standard SAE
J1772 charge inlet (vehicle charge inlet) for both AC
Level 1 (120 V), and AC Level 2 (240 V) charging.
Open the charge port door by pushing near the rear
outer edge of the door, near the center to unlatch. To
close the charge port door, engage the door latch by
pushing on the rear outer edge near the center.
AC LEVEL 1 CHARGING (120 VOLT,
12 AMP)
Your vehicle may be equipped with a 120 Volt AC, SAE
J1772 Level 1 Electric Vehicle Supply Equipment
(EVSE), also referred to as a Portable Charging Cordset
(EVSE). AC Level 1 charging requires a conventional
NEMA 5-15R 120 Volt AC grounded wall outlet along
with the Portable Charging Cordset (EVSE) provided
with the vehicle.
WARNING!
Please be sure to follow these warnings. Failure to do
so may result in serious injury or death.
•
Discontinue use of the Portable Charging Cordset
(EVSE) immediately if the plug or outlet becomes
hot to the touch or if you notice any unusual odors.
•
Do not use the Portable Charging Cordset (EVSE)
in building structures that use fuse-based circuit
protection. Use only with electrical circuits pro-
tected by circuit breakers.
•
Do not use the Portable Charging Cordset (EVSE) if
other devices are plugged into the same circuit.
•
When unplugging the Portable Charging Cordset
(EVSE) from the wall outlet, be sure to pull by the
plug, and not the cord.
•
Do not pull, twist, bend, step on or drag the cord of
the Portable Charging Cordset (EVSE).
•
Stop using the Portable Charging Cordset (EVSE)
immediately if charging stops before it’s completed
when the plug or cord is moved or adjusted.
•
Do not use the Portable Charging Cordset (EVSE) if
the plug has a loose connection with the wall out-
let or if the wall outlet is damaged or rusted.
•
If in any doubt about the wall outlet and/or circuit,
contact a qualified electrician.
•
Do not use if a malfunction occurs or if the Por-
table Charging Cordset has been damaged in any
manner. It is recommended that you contact an
authorized dealership.
•
There are no user serviceable parts inside the Por-
table Charging Cordset (EVSE). Do not attempt to
repair or service the Portable Charging Cordset
(EVSE), doing so will void the New Vehicle Warranty.
WARNING!
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR
ELECTRIC SHOCK: Electrical shock, fire, and other
serious hazards can occur if the Portable Charging
Cordset (EVSE) is not used properly. This vehicle uses
a high voltage current. Failure to follow the proper
charging instructions in this publication can cause
serious injury or death. There are no serviceable
parts in the Portable Charging Cordset (EVSE). Do not
open, disassemble, penetrate, or tamper with the
Portable Charging Cordset (EVSE). Failure to follow
this warning can result in electrical shock, fire, prop-
erty damage, and death or serious injury.
To access the Portable Charging Cordset (EVSE), open
the door of the cargo area storage bin if equipped, on
the driver’s side, and remove the Portable Charging
Cordset (EVSE) from the storage bag.

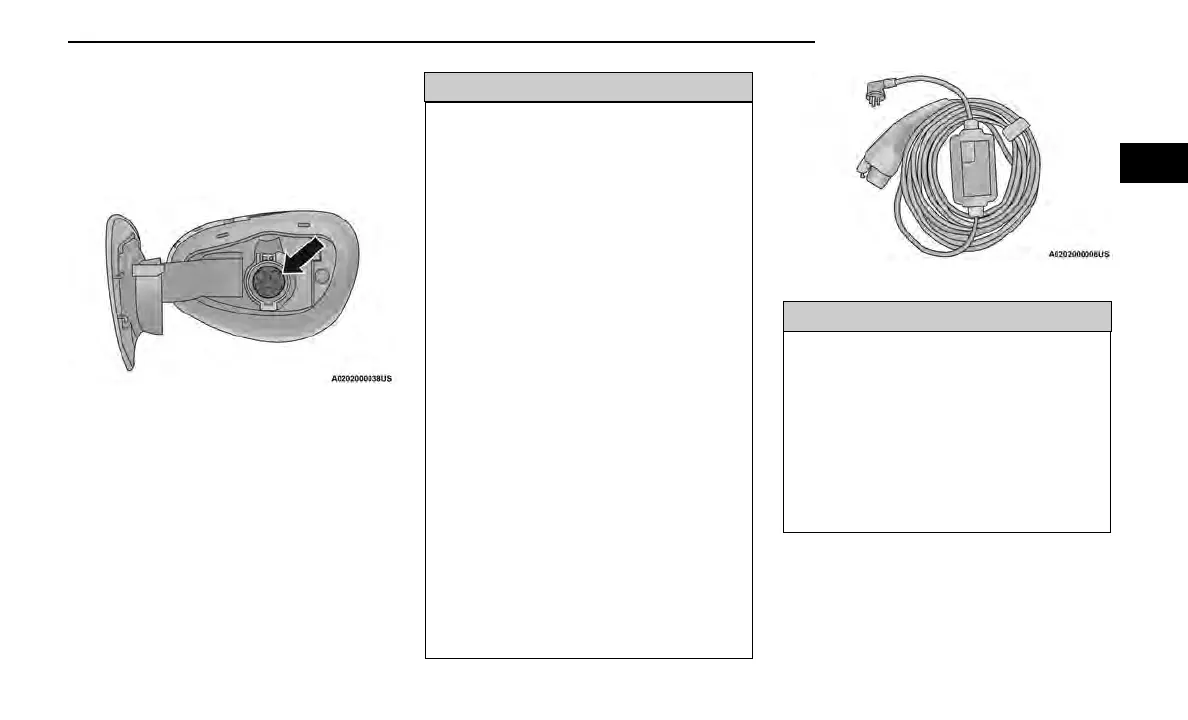

Vehicle Charge Inlet
Portable Charging Cordset (EVSE)
GETTING TO KNOW YOUR VEHICLE 15
