Chrysler PACIFICA 2024 - Engine Compartment - Hybrid Models; (If Equipped)

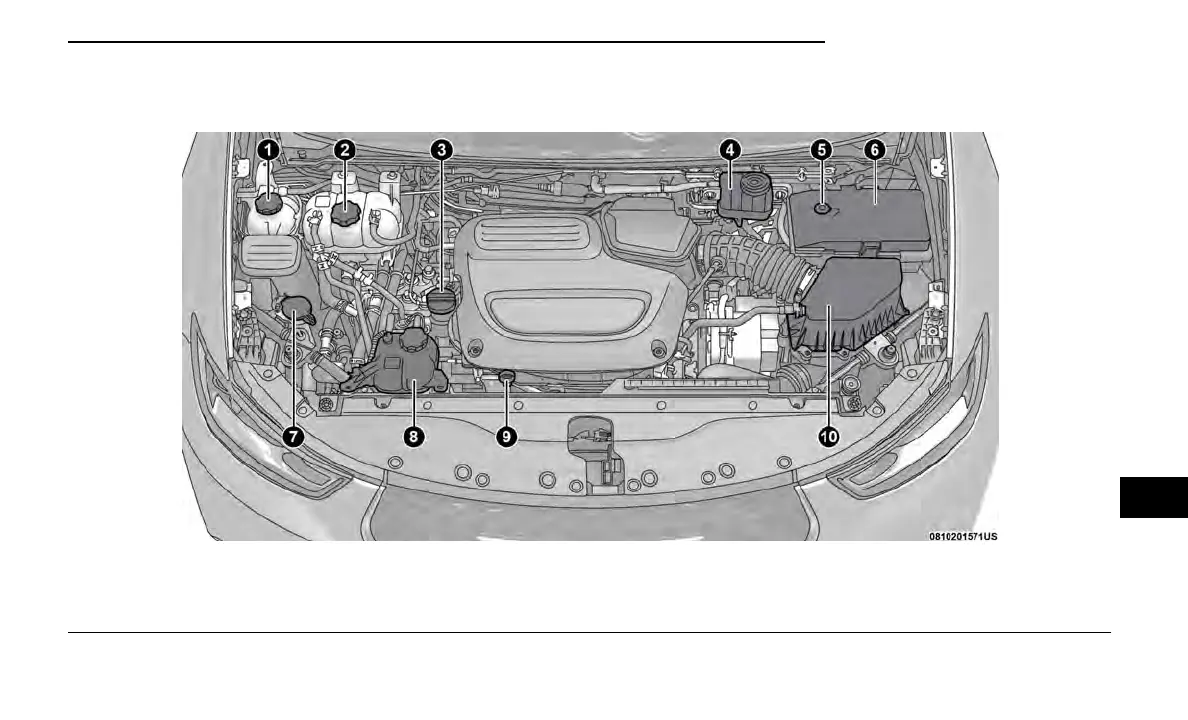

ENGINE COMPARTMENT — HYBRID MODELS (IF EQUIPPED)
1 — Battery Coolant Reservoir
1
6 — Power Distribution Center (Fuses)
2 — Engine Coolant Pressure Reservoir 7 — Washer Fluid Reservoir Cap
3 — Engine Oil Fill 8 — Power Electronics Coolant Reservoir
1
4 — Brake Fluid Reservoir 9 — Engine Oil Dipstick
5 — Remote Jump Start Positive Terminal 10 — Engine Air Cleaner, Filter
1
See an authorized dealer for service.
SERVICING AND MAINTENANCE 267
