4. Gently lower the wiper arm onto the glass.
Installing The Front Wipers
1. Lift the wiper arm off of the glass, until the wiper
arm is in the full up position.
2. Position the wiper blade near the hook on the tip of
the wiper arm with the wiper release tab open and
the blade side of the wiper facing up and away from
the windshield.
3. Insert the hook on the tip of the arm through the
opening in the wiper blade under the release tab.
4.
Slide the wiper blade up into the hook on the wiper
arm and rotate the wiper blade until it is flush against
the wiper arm. Fold down the latch release tab and
snap it into its locked position. Latch engagement will
be accompanied by an audible click.
5. Gently lower the wiper blade onto the glass.
Rear Wiper Blade Removal/Installation
1. Lift the rear wiper arm pivot cap away from the glass
to allow the rear wiper blade to be raised off of the
glass.
NOTE:
The rear wiper arm cannot be fully raised off the
glass unless the wiper arm pivot cap is unsnapped
first. Attempting to fully raise the rear wiper arm
without unsnapping the wiper arm pivot cap may
damage the vehicle.
2. Lift the rear wiper arm fully off the glass.
3. To remove the wiper blade from the wiper arm,
grasp the bottom end of the wiper blade nearest to
wiper arm with your right hand. With your left hand
hold the wiper arm as you pull the wiper blade away
from the wiper arm past its stop far enough to
unsnap the wiper blade pivot pin from the recep-
tacle on the end of the wiper arm.
NOTE:
Resistance will be accompanied by an audible snap.
4. Still grasping the bottom end of the wiper blade,
move the wiper blade upward and away from the
wiper arm to disengage.

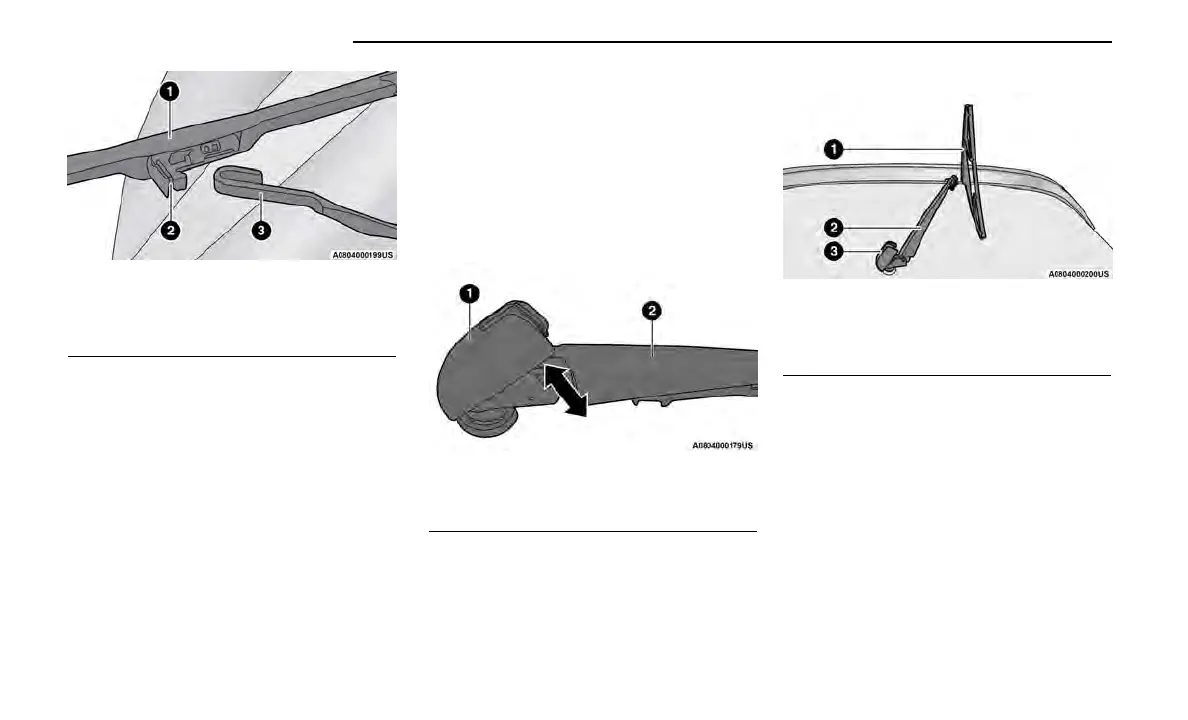

Wiper Blade Removed From Wiper Arm
1 — Wiper Blade
2 — Release Tab
3 — Wiper Arm
Wiper Pivot Cap In Unlocked Position
1 — Wiper Arm Pivot Cap
2 — Wiper Arm
Wiper Blade In Folded Out Position
1 — Wiper Blade
2 — Wiper Arm
3 — Wiper Arm Pivot Cap
