GE+ ACDC Installation and operation manual v11
78 / 121

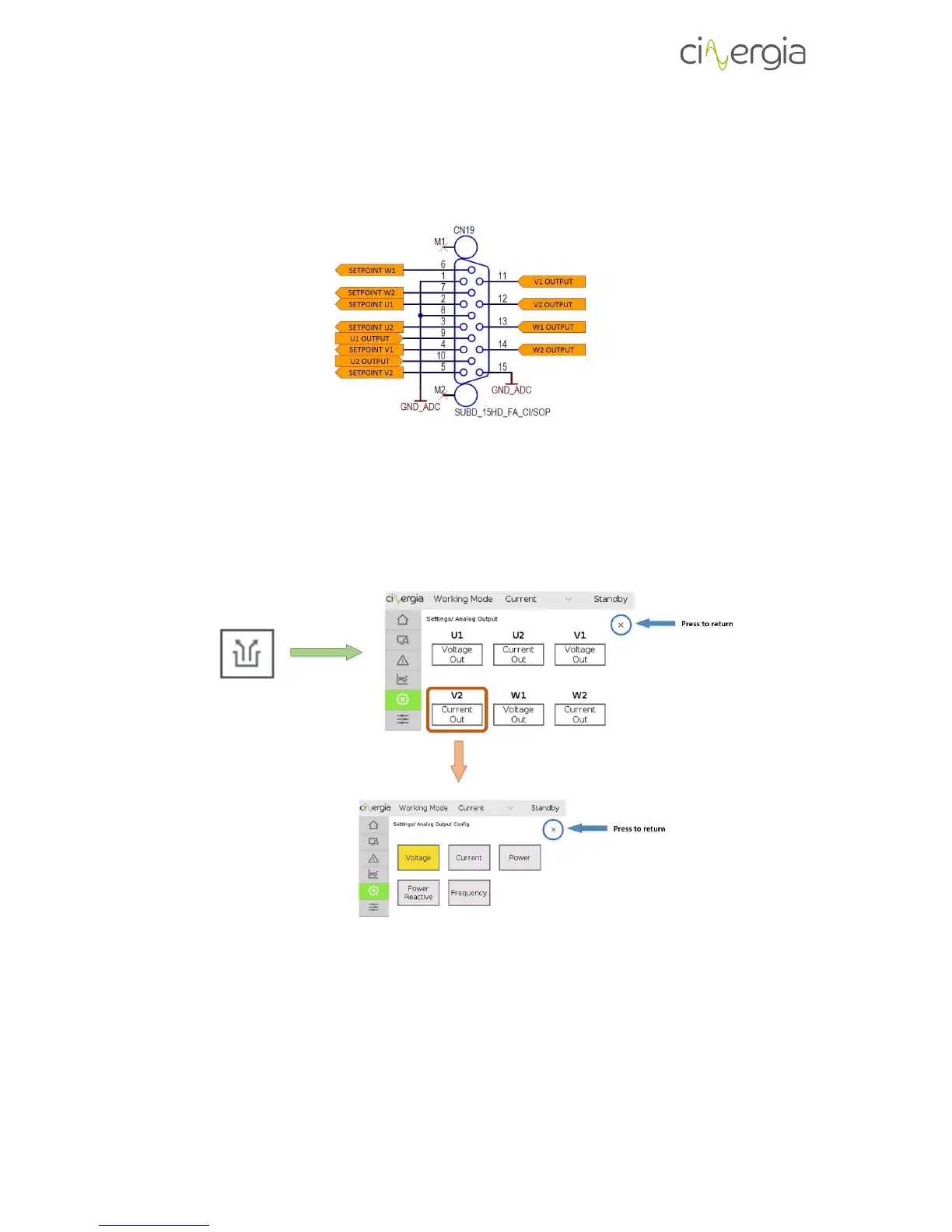

Voltage, Current, Power, Power Reactive (only AC) or Frequency (only AC). These analogue
outputs will be gathered in the X15 DB15 connector in the front panel, which its pinout is the
following:
Once the user goes in the Output Conf menu will be able to select and configure the 6 analogue
outputs (U1, U2, V1, V2, W1 and W2). By pressing one of them, another screen will appear with
the available options depending on the kind of equipment:
The selected analogue output will be illuminated in yellow.
c. About
It shows the basic information of the converter. It contains the address and the webpage of
Cinergia as well as the device information. The user can consult it by touching the arrows on the
right of the screen.
