1-4
Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views

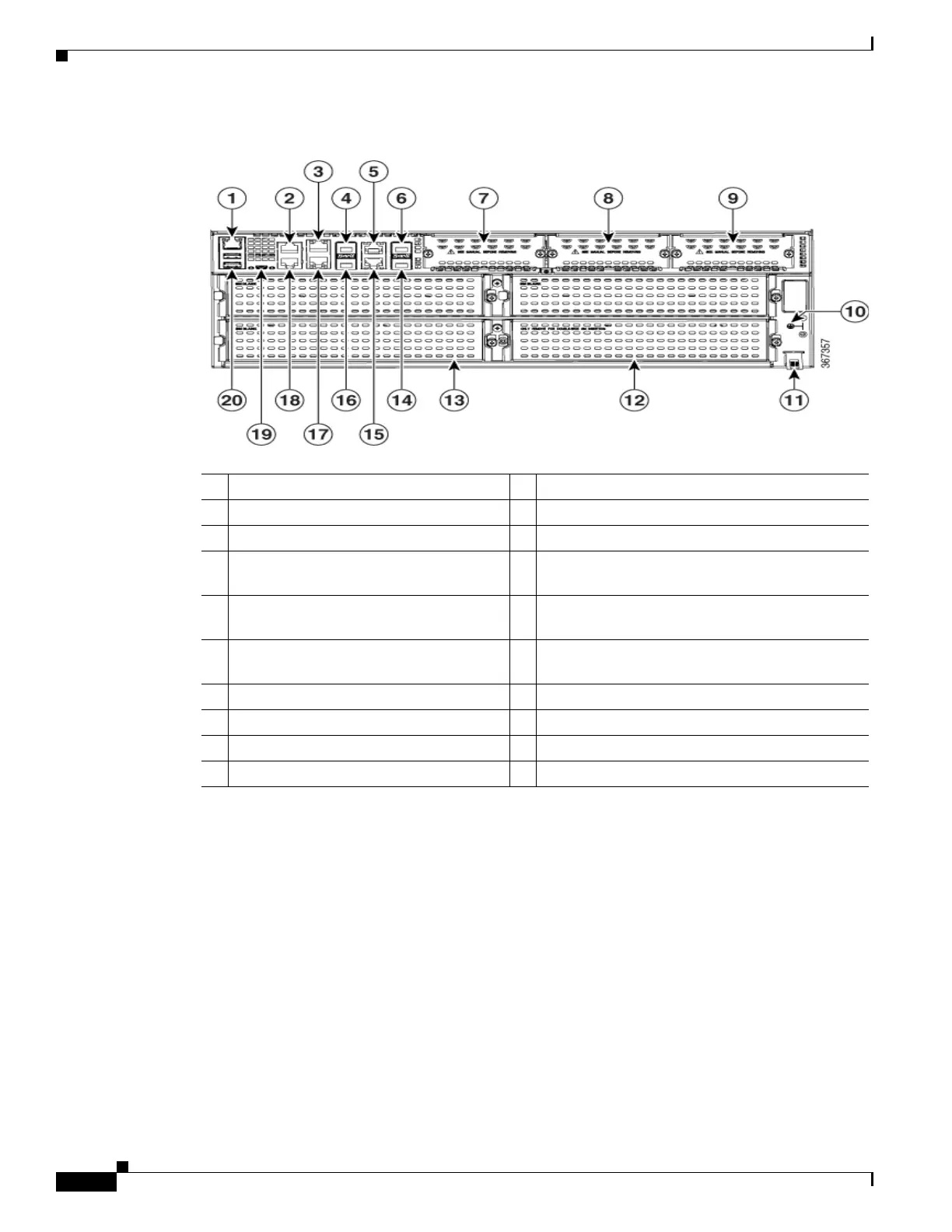

Figure 1-2 Back Panel (I/O Side) Slots and Connectors on Cisco 4461 ISR
1 GE 0 management port 2 Auxiliary port
3 RJ-45 Gigabit Ethernet port (GE 0/0/0) 4 SFP/Gigabit Ethernet port (GE 0/0/0)
5 RJ-45 Gigabit Ethernet port (GE 0/0/2) 6 SFP+/10 Gigabit Ethernet port (
TE 0/0/4)
7 NIM slot 1 (shown with slot divider
removed).
8 NIM slot 2 (shown with slot divider removed).
9 NIM slot 3 (shown with slot divider
removed).
10 Ground Connection
11
Slot for label 12 Enhanced Service Module (SM-X) with double
wide
13 Enhanced Service Module (SM-X) 3 14 SFP+/10 Gigabit Ethernet port (
TE0/0/5)
15 RJ-45 Gigabit Ethernet port (GE 0/0/3) 16 SFP/Gigabit Ethernet port (GE 0/0/1)
17 RJ-45 Gigabit Ethernet GE 0/01 18 Console Port
19 USB Console Port 20 USB Port
