Remove and Install the Flash Memory Card

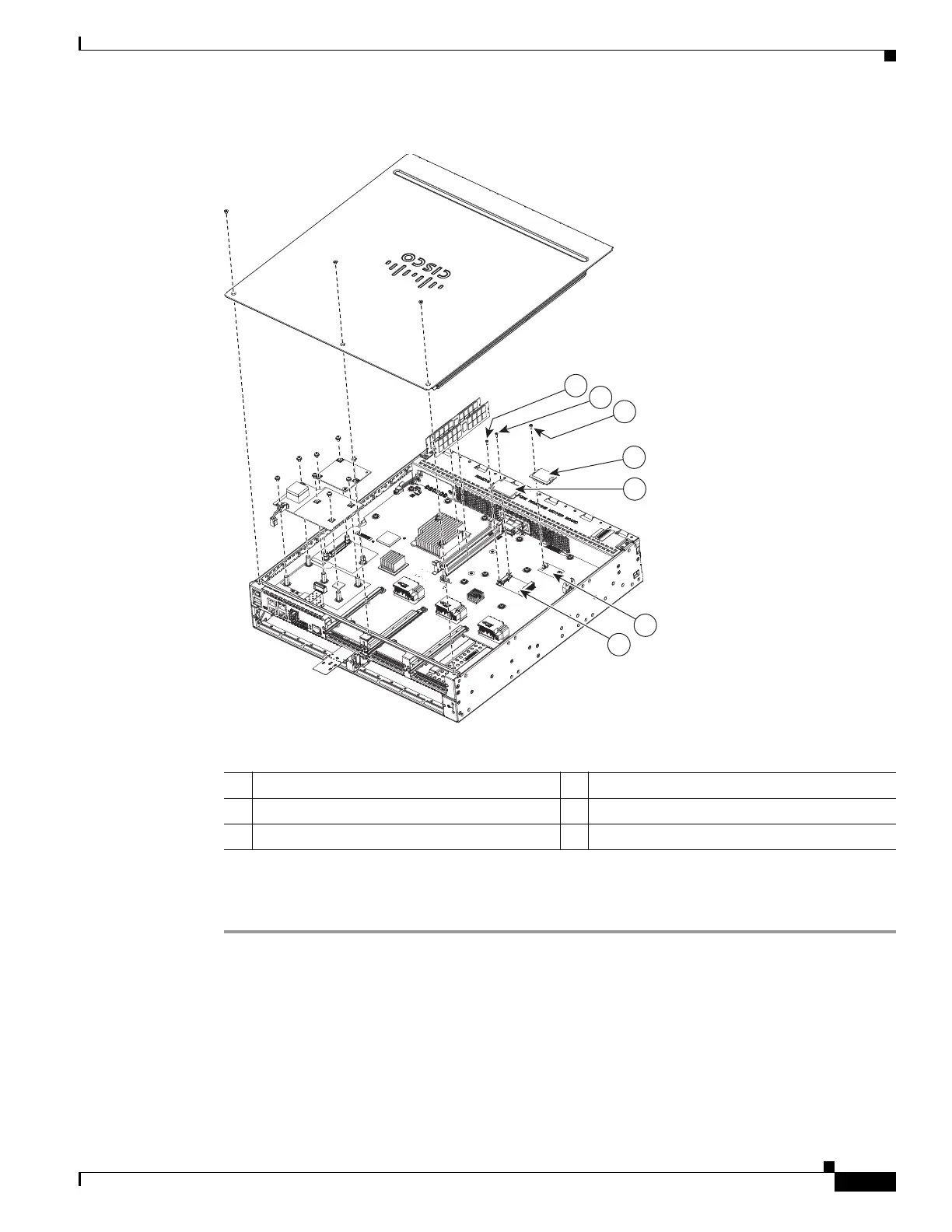

Figure 5-54 Memory Cards
Step 4
Tighten the supplied screw (see Figure 5-54) to secure the flash memory card in place.
Step 5 Replace the chassis cover. See “Remove and Replace Chassis Cover” section on page 5-4.
1 Supplied screw 2 Supplied screw
3 Flash memory card 4 SSD mSATA storage device
5 Flash memory card connector 6 SSD mSATA connector
