The following figure shows the USB port connector on the Cisco ASR 920 Series Router.

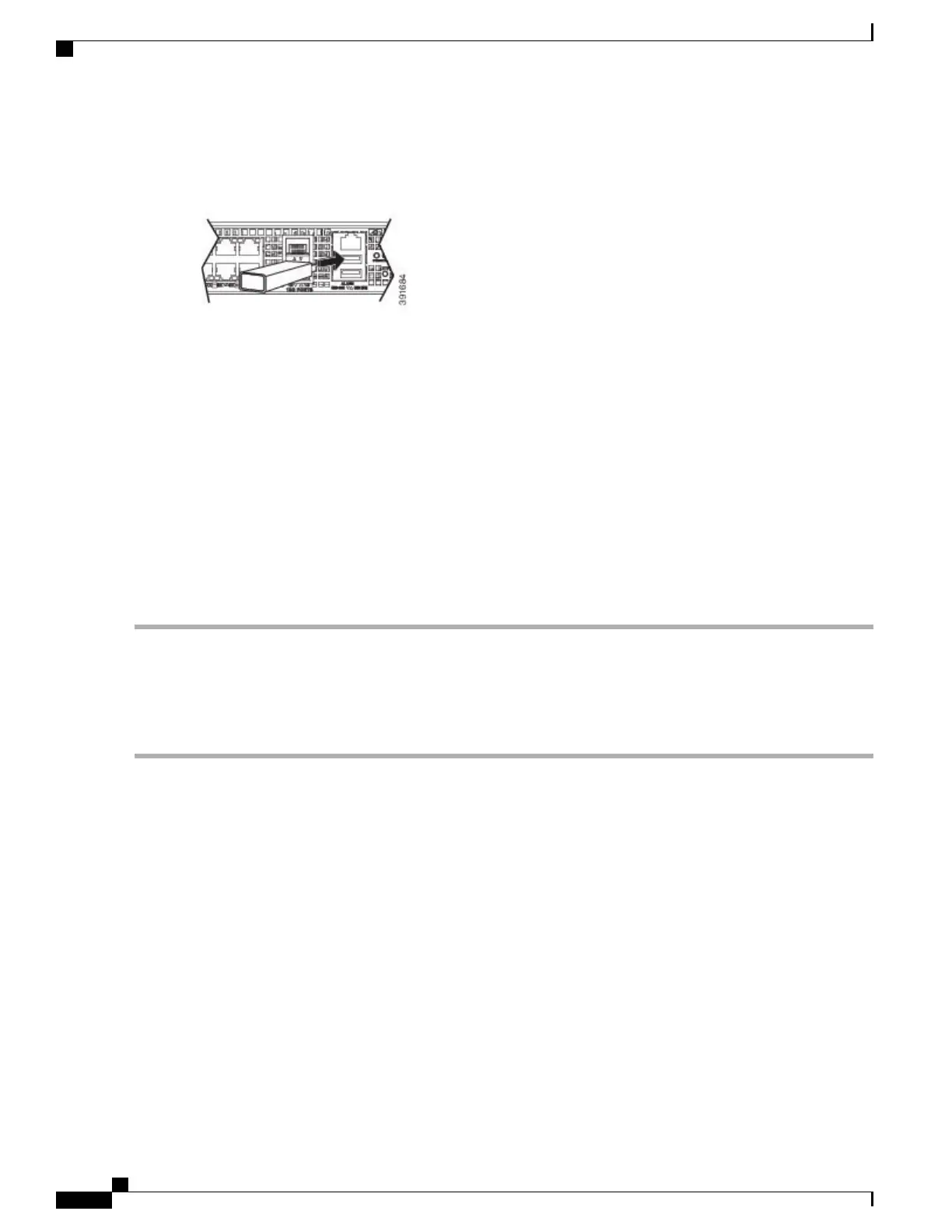

Figure 33: Flash Token Memory Stick
Removing a USB Flash Device
To remove and replace a USB flash token memory stick from and into a router, follow these steps:
SUMMARY STEPS
1.
Pull the memory stick from the USB port.
2.
To replace the Cisco USB Flash memory stick, simply insert the module into the USB port labeled USB
MEM. The Flash memory module can be inserted only one way, and can be inserted or removed regardless
of whether the router is powered up or not.
DETAILED STEPS
Step 1
Pull the memory stick from the USB port.
Step 2
To replace the Cisco USB Flash memory stick, simply insert the module into the USB port labeled USB MEM. The
Flash memory module can be inserted only one way, and can be inserted or removed regardless of whether the router is
powered up or not.
This completes the USB Flash memory installation procedure.
Connecting Timing Cables
The section describes how to connect timing cables to the Cisco ASR 920 Series Router:
Connecting Cables to a GPS Interface
The sections describe how to connect cables from the Cisco ASR-920-12SZ-IM Router to a GPS unit for
input or output timing of frequency:
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
88
Installing the Cisco ASR 920 Series Router
Connecting Timing Cables
