The following figure shows how to attach a 19-inch bracket to one side of the router. Follow the same steps
to attach the second bracket to the opposite side.

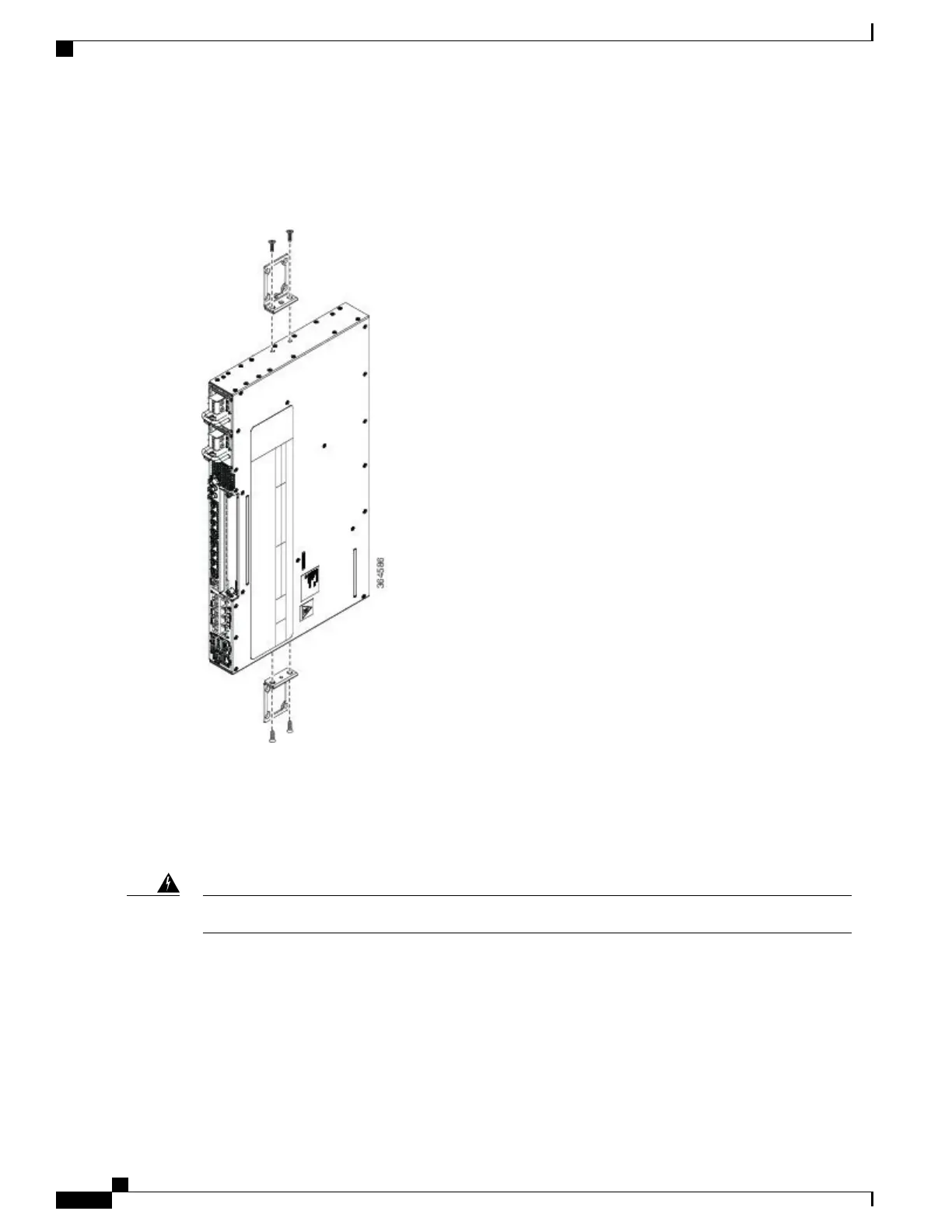

Figure 14: Attaching 19-inch Brackets for Wall Mounting
Mounting Router on the Wall
For the best support of the router and cables, ensure the router is attached securely to wall studs or to a firmly
attached plywood mounting backboard.
Suitable for mounting on and over a concrete or other non-combustible surface only. Statement 345Warning
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
50
Installing the Cisco ASR 920 Series Router
Mounting Router on the Wall
