Mount the router with the front panel as shown in the following figure.

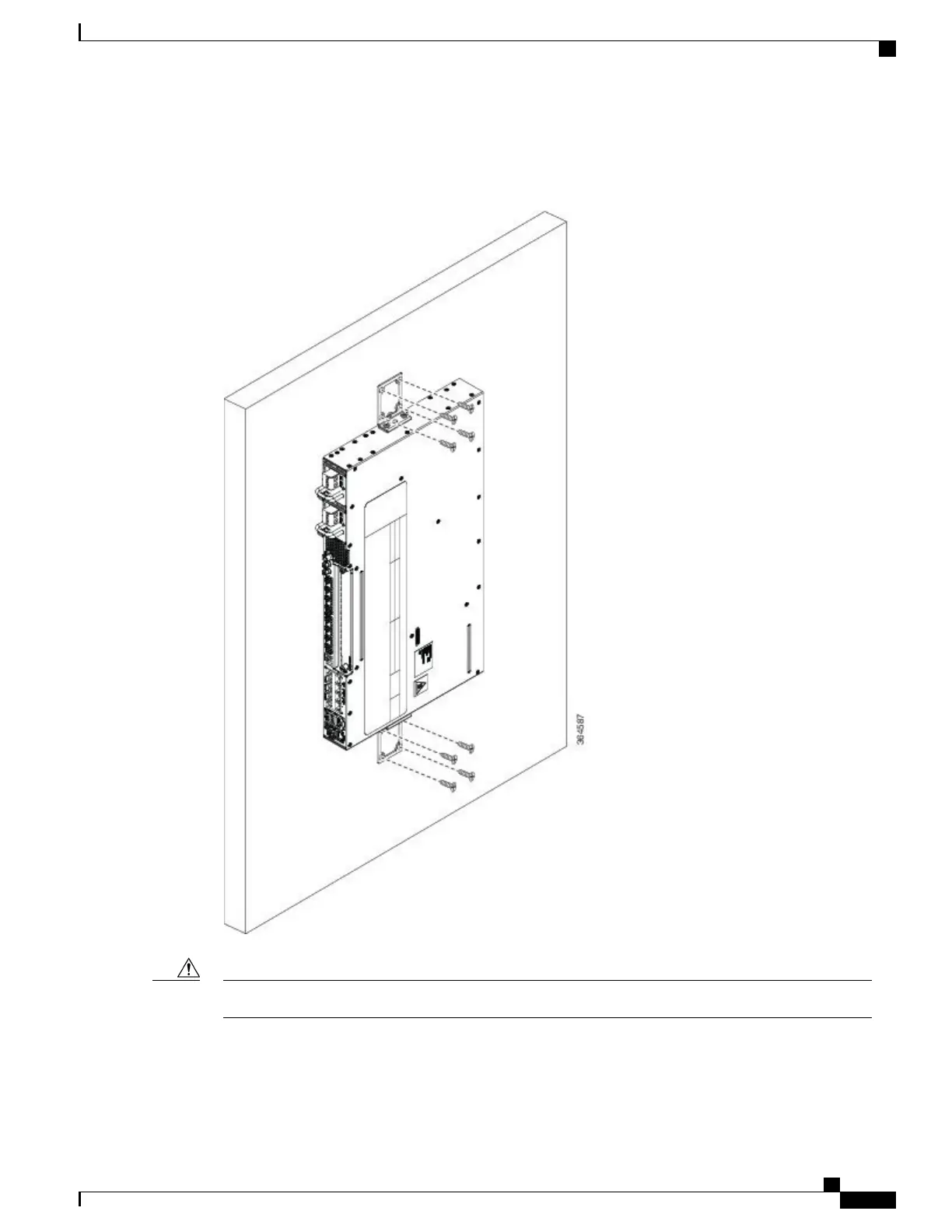

Figure 15: Mounting the Router on the Wall
When mounting the router vertically, ensure that the power supplies are at the top.Caution
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
51
Installing the Cisco ASR 920 Series Router
Mounting Router on the Wall
