Cisco ASR-920-12SZ-IM Hardware Installation Guide

DETAILED STEPS
Step 1
Locate the terminal block plug.
Step 2
Insert the DC-input power source wires into the terminal block plug.
Step 3
Attach the DC supply wires using the designated screws.
Step 4
Use a ratcheting torque screwdriver to torque the terminal block plug captive screw. See the following figure.

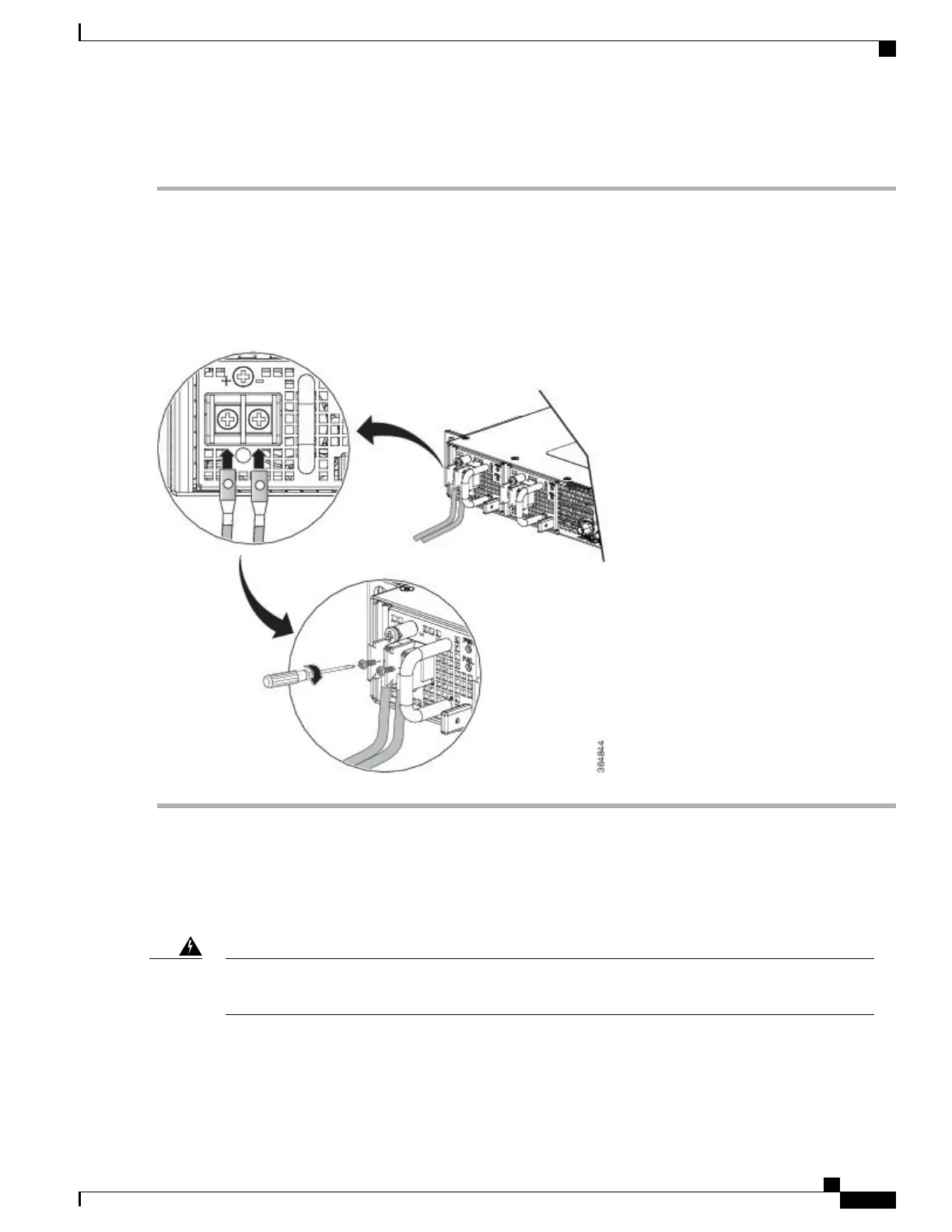

Figure 26: Attaching the DC Power Supply Wires
Removing the DC Power Supply Module
This section provides information about removing and replacing the DC power supply.
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
71
Installing the Cisco ASR 920 Series Router
Removing the DC Power Supply Module

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
