Attaching Brackets to the Router
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets for a
19-inch, 23-inch, or an ETSI rack. The following figure shows the types of mounting brackets.

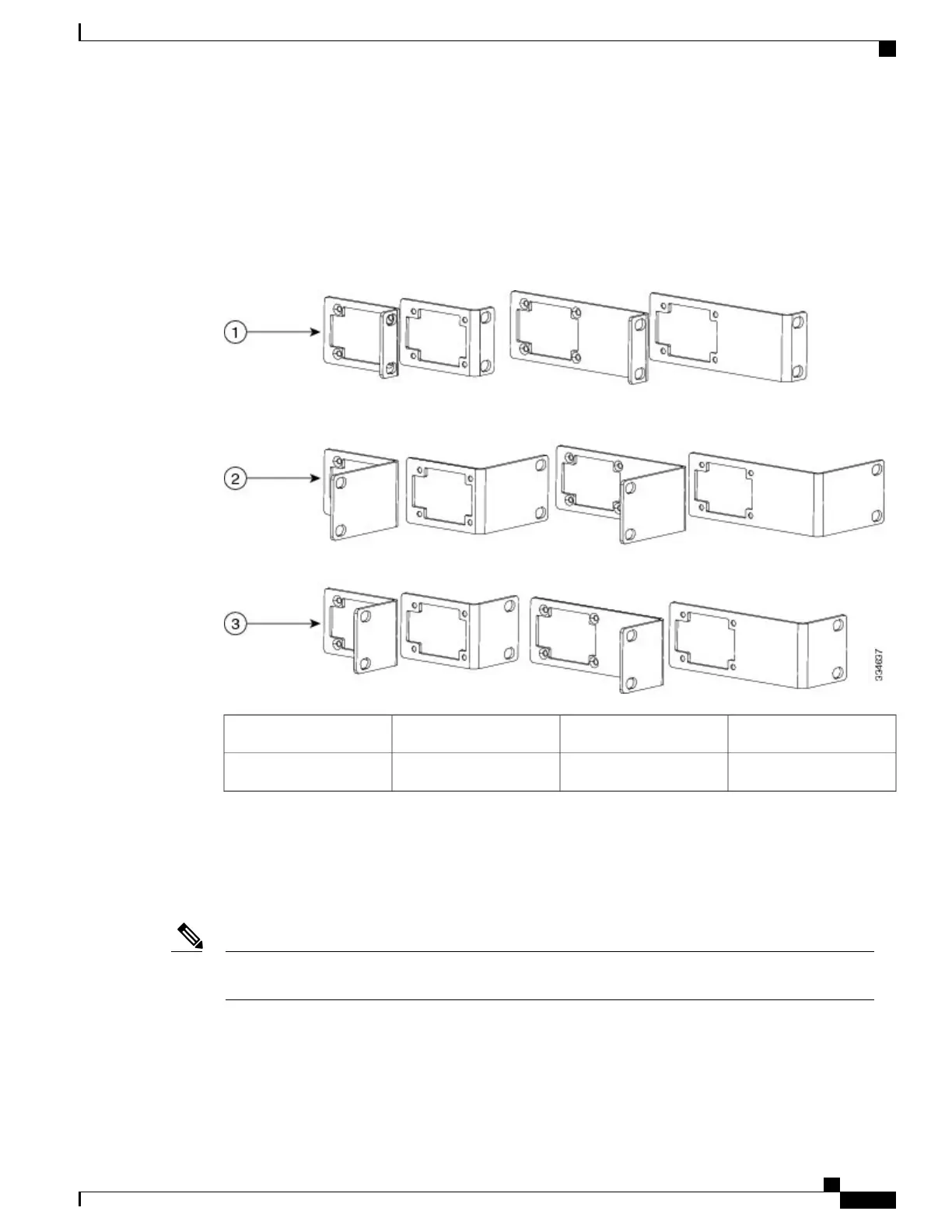

Figure 6: Rack-Mounting Brackets
23-inch brackets219-inch brackets1
—
4ETSI-rack brackets3
•
For 19-inch racks, use part number 700-39959-01 (see Attaching Brackets for 19-Inch Racks section.
•
For 23-inch racks, use part number 700-40065-01 (see Attaching Brackets for 23-Inch Racks section).
•
For ETSI racks, use part number 700-40067-01 (see Attaching Brackets for ETSI Racks section).
The bracket mounting screws are pre-installed on the router. Depending on the bracket mounting position
of the chassis, you must remove the appropriate screws, fix the bracket, and install the screws again.
Note
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
39
Installing the Cisco ASR 920 Series Router
Attaching Brackets to the Router

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
