Cisco ASR-920-12SZ-IM Hardware Installation Guide

SUMMARY STEPS
1.
Position the cable guide-left and cable guide-right against the front of the chassis and align the four screw
holes, as shown in the following figure.
2.
Secure the cable guides with the four M6x12mm screws supplied with the cable kit. The recommended
maximum torque is 3N-m.
DETAILED STEPS
Step 1
Position the cable guide-left and cable guide-right against the front of the chassis and align the four screw holes, as shown
in the following figure.

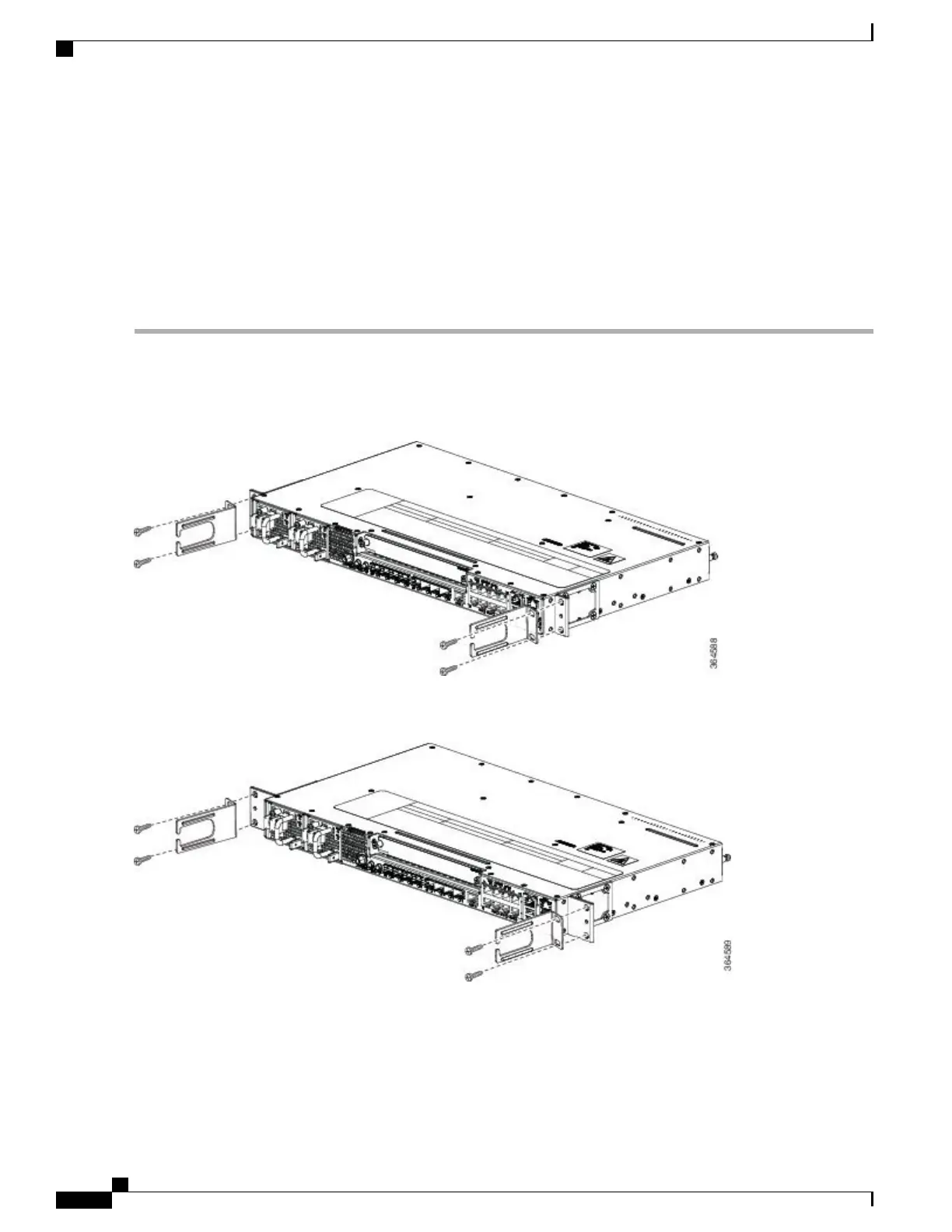

Figure 11: Cable Guide Installation For 19-inch Rack Brackets
Figure 12: Cable Guide Installation For ETSI Rack Brackets
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
48
Installing the Cisco ASR 920 Series Router
Attaching the Cable Guides

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
