Cisco ASR-920-12SZ-IM Hardware Installation Guide

SUMMARY STEPS
1.
Orient the fan tray so that the captive screws are aligned to the chassis cavity on the back panel. See the
following figure.
2.
Push the fan assembly into the chassis until the power connector seats in the backplane and the captive
installation screws make contact with the chassis.
3.
Tighten the captive installation screws, using a flat-blade or number 2 Phillips-head screwdriver.
DETAILED STEPS
Step 1
Orient the fan tray so that the captive screws are aligned to the chassis cavity on the back panel. See the following figure.

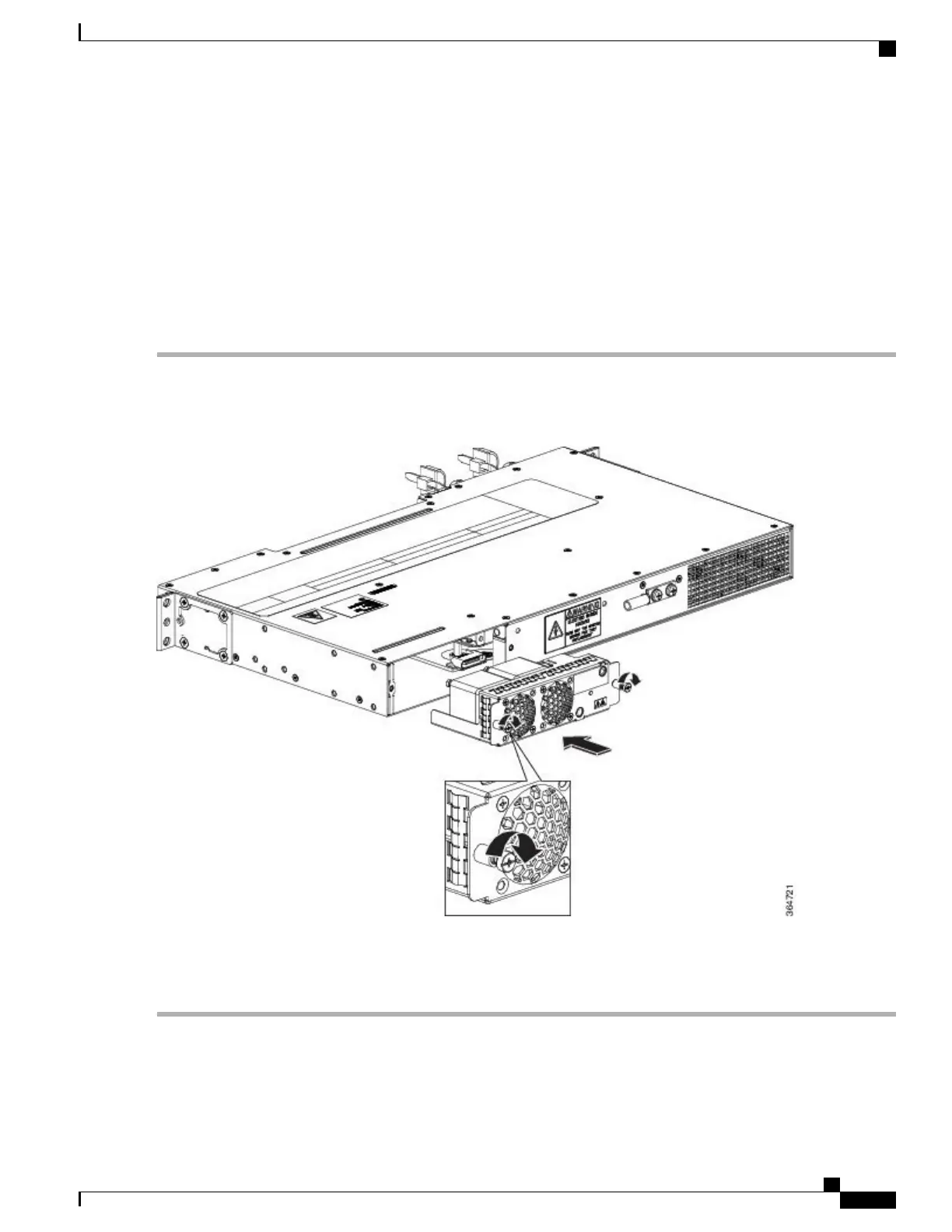

Figure 22: Installing the Fan Tray in the Chassis
Step 2
Push the fan assembly into the chassis until the power connector seats in the backplane and the captive installation screws
make contact with the chassis.
Step 3
Tighten the captive installation screws, using a flat-blade or number 2 Phillips-head screwdriver.
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
61
Installing the Cisco ASR 920 Series Router
Installing the Fan Tray

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
