Cisco ASR-920-12SZ-IM Hardware Installation Guide

DETAILED STEPS
Step 1
Ensure that the system (earth) ground connection has been made. See the following figure.
Step 2
If necessary, remove the blank power supply filler plate from the chassis power supply bay opening by loosening the
captive installation screws.
Step 3
Verify that power to the DC circuit connected to the power supply you are installing is off. To ensure that power has
been removed from the DC circuits, locate the circuit breakers for the DC circuits, switch the circuit breakers to the OFF
position, and tape the circuit-breaker switches in the OFF position.
Step 4
Grasp the power supply handle with one hand. Place your other hand underneath the power supply. Slide the power
supply into the power supply bay. Make sure that the power supply is fully seated in the bay.
Step 5
Tighten the captive installation screws of the power supply. The recommended maximum torque is 5.5 in.-lb (0.62 N-m).

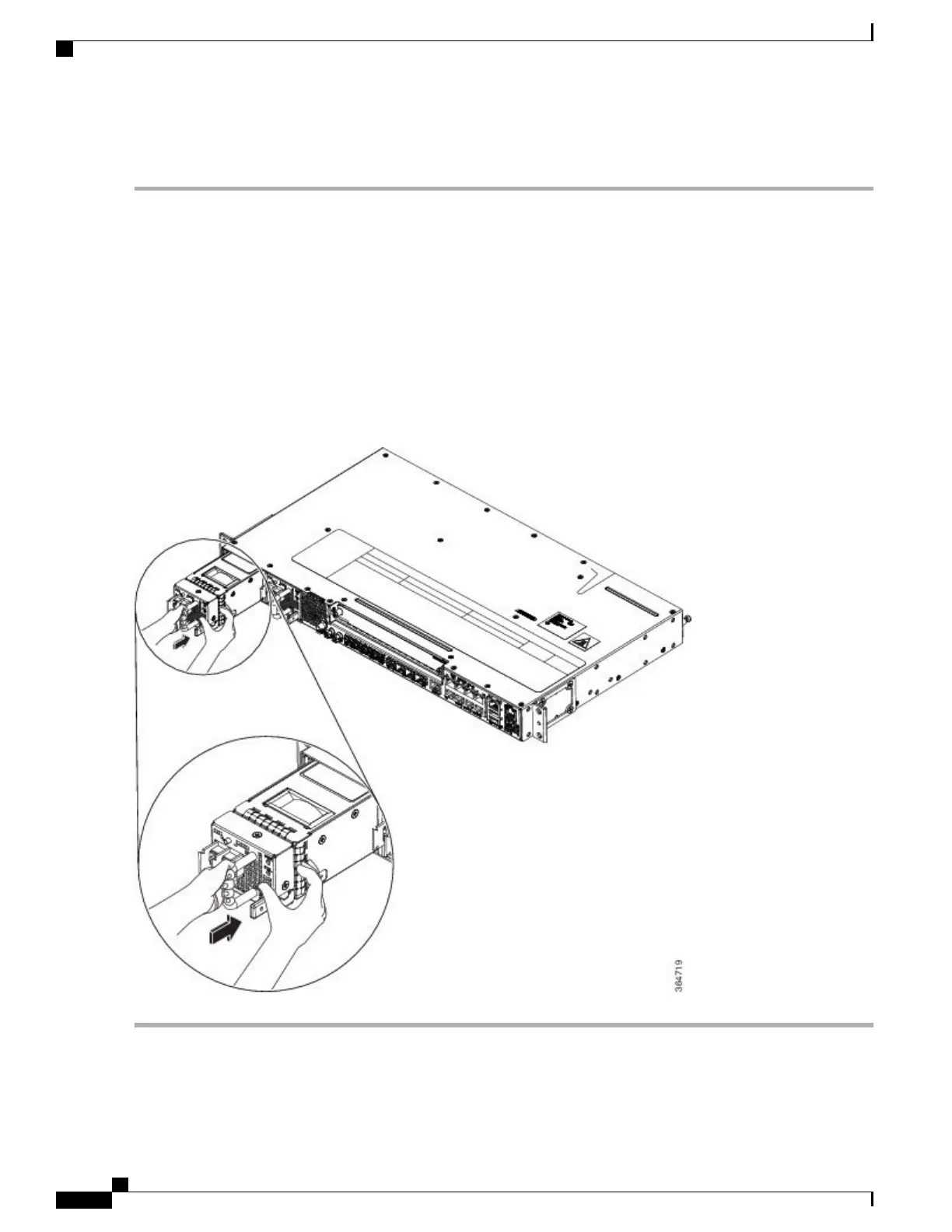

Figure 24: Installing the DC Power Supply Module
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
68
Installing the Cisco ASR 920 Series Router
Installing the DC Power Supply Module

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
