Cisco Catalyst 6500 Series Hardware Installation Guide

2-5
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 2 Catalyst 6500 Series Switch SIPs and SSCs Overview
Cisco 7600 SIP-200 Overview
• Cisco 7600 SIP-200 LEDs, page 2-5
• Cisco 7600 SIP-200 Physical Specifications, page 2-6
• Cisco 7600 SIP-200 Memory Options, page 2-6
• Cisco 7600 SIP-200 Default DIP Switch Settings, page 2-7
Cisco 7600 SIP-200 Processor
Table 2-2 describes the processor on a 7600-SIP-200.
Cisco 7600 SIP-200 LEDs
The 7600-SIP-200 has one LED as shown in Figure 2-3.

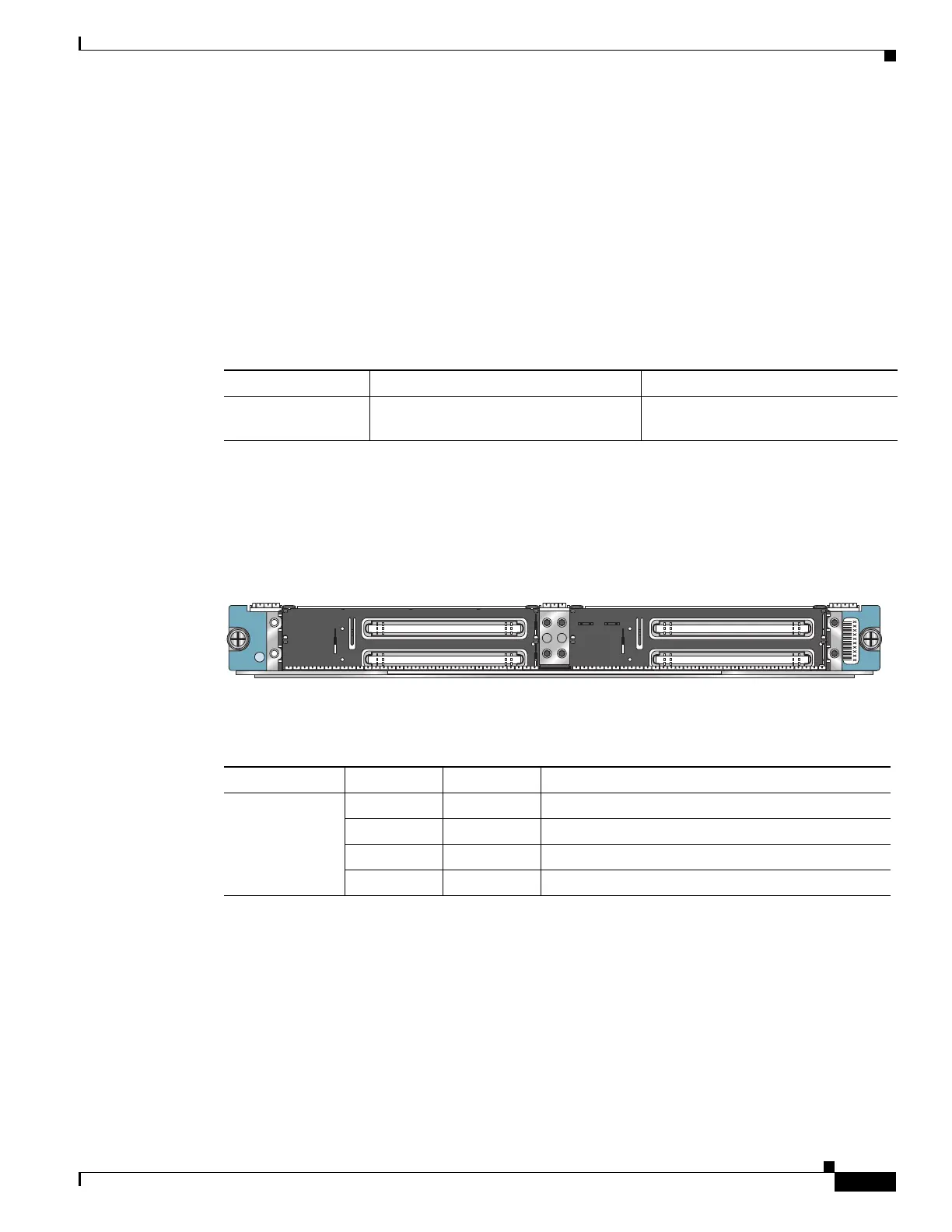

Figure 2-3 7600-SIP-200 Faceplate
Table 2-3 describes the 7600-SIP-200 LED.
Ta b l e 2-2 7600-SIP-200 Processor
Type Speed Description
CPU 800 megahertz (MHz) internal operating
frequency
Broadcom 1125 MIPS-based design
STATUS
2
0
3
1
SPA INTERFACE
PROCESSOR
7600-SIP-200
116849
Ta b l e 2-3 7600-SIP-200 LED
LED Label Color State Meaning
STATUS Red On The 7600-SIP-200 has encountered an error.
Green On The 7600-SIP-200 is online.
Yellow On The 7600-SIP-200 is loading.
Off Off The 7600-SIP-200 is powered off.
