3-42
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
1-Port 10-Gigabit Ethernet SPA Overview
1-Port 10-Gigabit Ethernet SPA LEDs
The 1-Port 10-Gigabit Ethernet SPA has two types of LEDs. There is an ACTIVE/LINK LED for the
port and the STATUS LED as shown in
Figure 3-35.

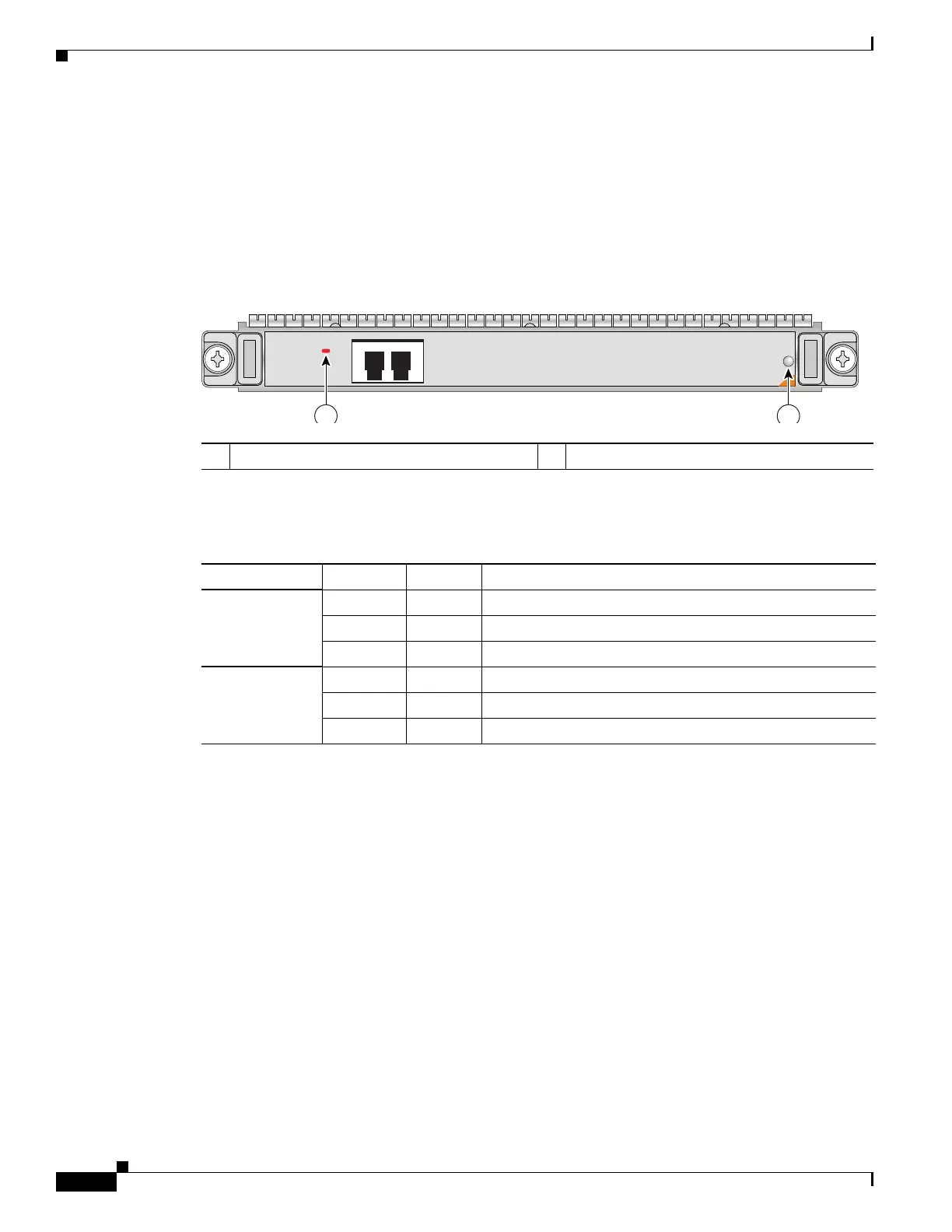

Figure 3-35 1-Port 10-Gigabit Ethernet SPA Faceplate
Table 3-22 describes the 1-Port 10-Gigabit Ethernet SPA LEDs.
1-Port 10-Gigabit Ethernet SPA Cables, Connectors, and Pinouts
The interface connector on the 1-Port 10-Gigabit Ethernet SPA is a fiber optic receiver that supports one
small form factor pluggable (XFP) module.
XFP Connections
The XFP-10GLR-OC192SR and XFP-10GER-OC192IR XFPs include an optical transmitter and
receiver pair integrated with Clock and Data Recovery
(CDR) integrated circuits. The XFPs provide
high-speed serial links at the following rates: 9.95 Gbps (OC-192) and 10.3125 Gbps (10-Gigabit
Ethernet) on single mode fibers. The transmit side recovers and retimes the 10-Gbps serial data and
passes it to a laser driver. The laser driver biases and modulates a 1310
nm or 1550 nm laser, enabling
data transmission over SMF through an LC connector. The receive side recovers and retimes the 10-Gbps
optical data stream from a photo detector trans impedance amplifier and passes it to an output driver.
See the label on the XFP for technology type and model.
1 ACTIVE/LINK LED 2 STATUS LED
STATUS
122151
ACTIVE/LINK
SPA-1X10GE-L-V2
1 2
Ta b l e 3-22 1-Port 10-Gigabit Ethernet SPA LEDs
LED Label Color State Meaning
ACTIVE/LINK Off Off Port is not enabled by software.
Green On Port is enabled by software and the link is up.
Amber On Port is enabled by software and the link is down.
STATUS Off Off SPA power is off.
Amber On SPA power is on and the SPA is being configured.
Green On SPA is ready and operational.
