Cisco Catalyst 6500 Series Hardware Installation Guide

3-45
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
2-Port Gigabit Ethernet SPA Overview
2-Port Gigabit Ethernet SPA (Version 2) LEDs
The 2-Port Gigabit Ethernet SPA (Version 2) has two types of LEDs: an A/L LED for each port (SFP and
RJ45) and a STATUS LED, as shown in
Figure 3-38.

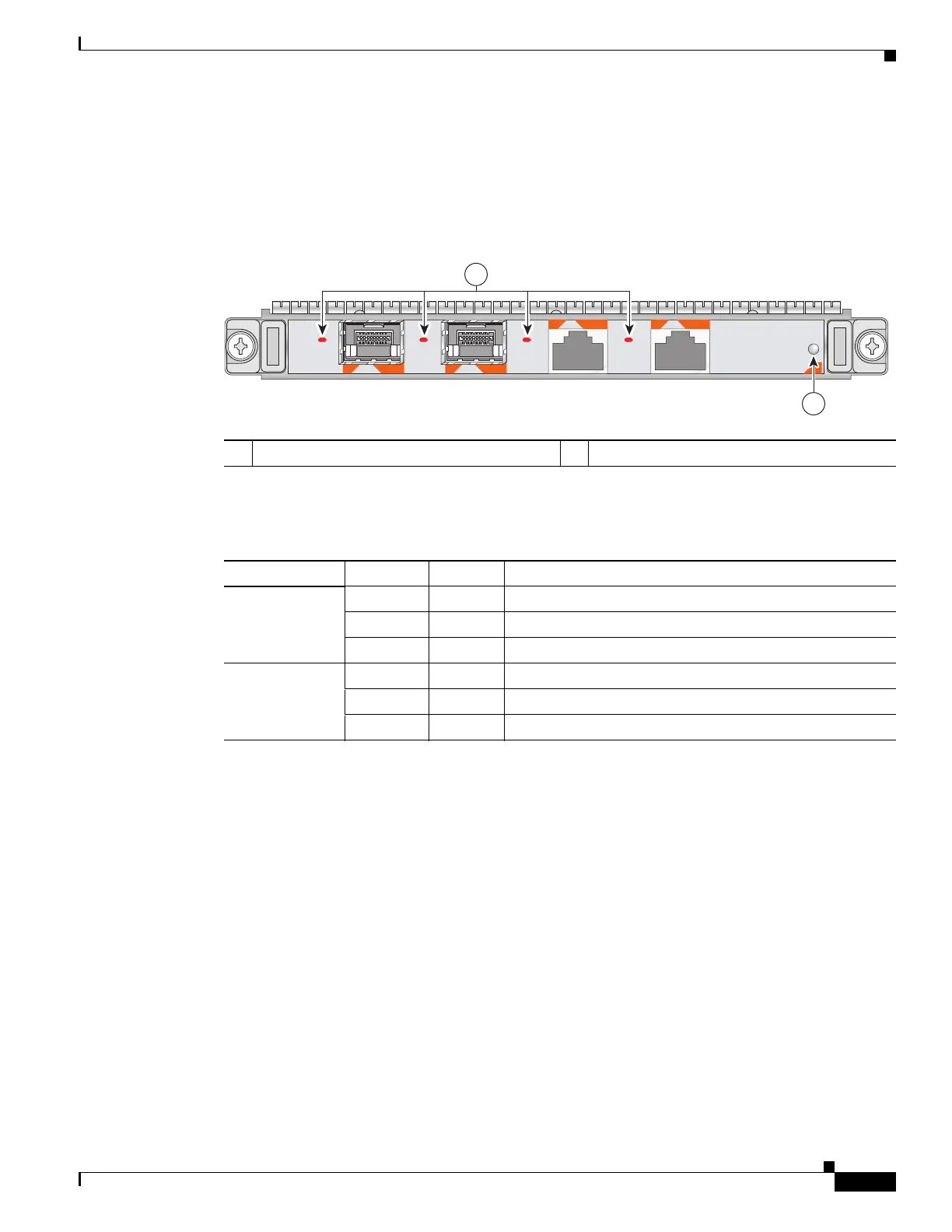

Figure 3-38 2-Port Gigabit Ethernet SPA (Version 2) Faceplate
Table 3-25 describes the 2-Port Gigabit Ethernet SPA (Version 2) LEDs.
The valid configuration of the SFP and RJ45 ports for the 2-Port Gigabit Ethernet SPA (Version 2) are
as follows:
• Port 0 (SFP) and Port 1 (SFP)
• Port 0 (SFP) and Port 1 (RJ45)
• Port 0 (RJ45) and Port 1 (SFP)
• Port 0 (RJ45) and Port 1 (RJ45)
or any single port
2-Port Fast Ethernet SPA Cables, Connectors, and Pinouts
The interface connectors on the 2-Port Fast Ethernet SPA are two individual RJ-45 receptacles. You can
use both the interface connectors simultaneously. Each connection supports IEEE
802.3 and Ethernet
10/100BASE-T interfaces compliant with appropriate standards. Cisco Systems does not supply
Category 5 unshielded twisted pair (UTP) RJ-45 cables; these cables are available commercially. The
RJ-45 connectors are shown in
Figure 3-39.
1 A/L (Active/Link) LED 2 STATUS LED
STATUS
0
1
0
1
A/L A/L A/L A/L
SPA-2X1GE-V2
211969
2
1
Ta b l e 3-25 2-Port Gigabit Ethernet SPA (Version 2) LEDs
LED Label Color State Meaning
A/L Off Off Port is not enabled.
Green On Port is enabled by software and the link is up.
Amber On Port is enabled by software and the link is down.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and the SPA is being configured.
