Chapter 3 Catalyst 6500 Series Switch SPA Overview
2-Port Gigabit Ethernet SPA Overview
The XFP module dimensions are as follows:
• Height 12.5 mm
• Width 18.35 mm
• Length 71.1mm
The XFP module temperature range is 0
o
to 70
o
C (32
o
to 158
o
F). Figure 3-36 shows an XFP module.

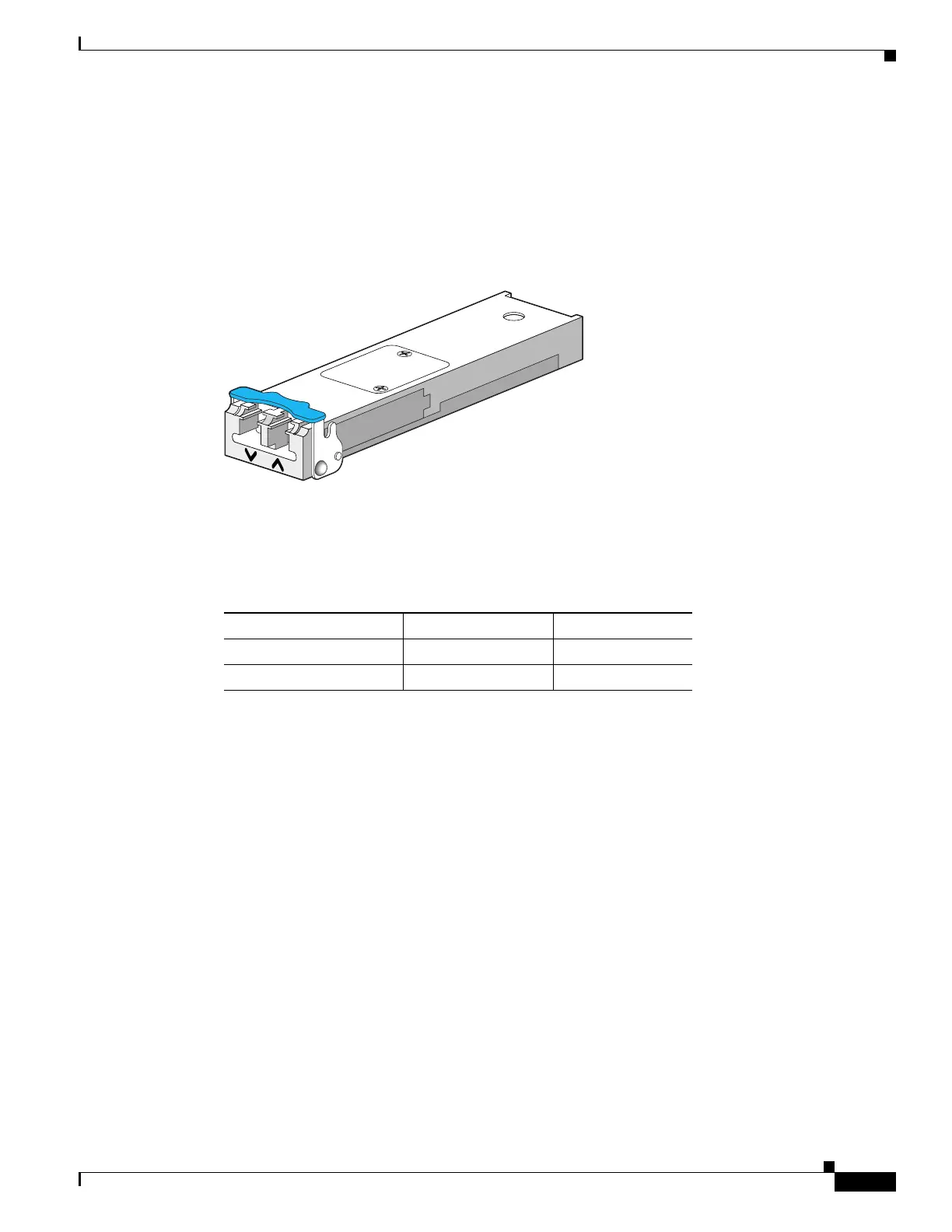

Figure 3-36 XFP Module
XFP Port Cabling Specifications
2-Port Gigabit Ethernet SPA Overview
The following sections describe the version 1 and version 2 of the 2-Port Gigabit Ethernet SPA:
• 2-Port Gigabit Ethernet SPA LEDs, page 3-44
• 2-Port Gigabit Ethernet SPA (Version 2) LEDs, page 3-45
• SFP Module Cabling and Connection Equipment, page 3-48
129499
Ta b l e 23 XFP Port Cabling Specifications
XFP Wavelength Fiber Type
XFP-10GLR-OC192SR 1310 nm SMF
XFP-10GER-OC192IR 1550 nm SMF
