Chapter 2 Catalyst 6500 Series Switch SIPs and SSCs Overview
Cisco 7600-SIP-600 Overview
Cisco 7600 SIP-400 LEDs
The 7600-SIP-400 has one LED as shown in Figure 2-6.

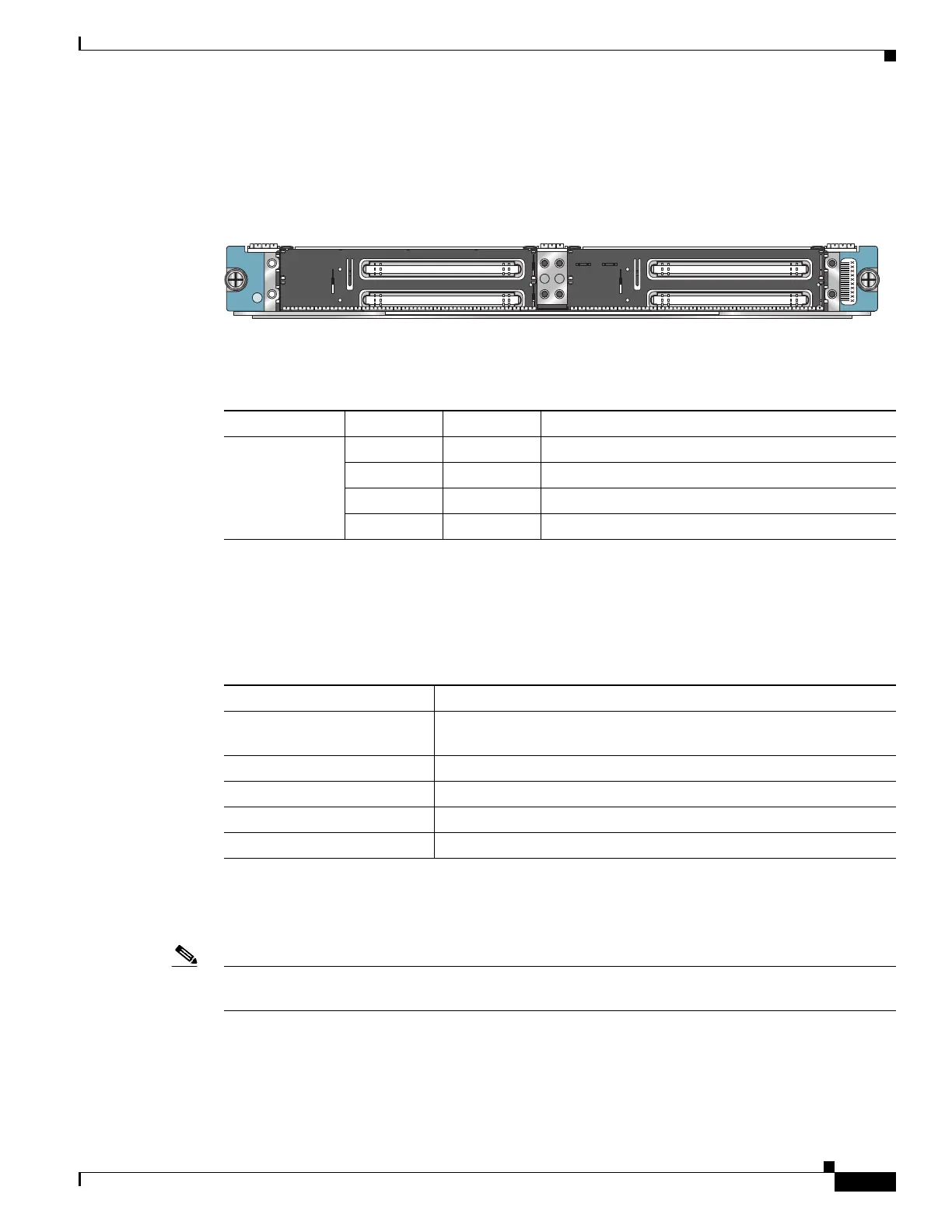

Figure 2-6 7600-SIP-400 Faceplate
Table 2-8 describes the 7600-SIP-400 LED.
Cisco 7600 SIP-400 Physical Specifications
Table 2-9 describes the 7600-SIP-400 physical specifications.
Cisco 7600-SIP-600 Overview
Note Support for the Cisco 7600 SIP-600 was removed in Cisco IOS Release 12.2(33)SXH and restored in
Cisco IOS Release 12.2(33)SXI and later releases.
The following sections describe the 7600-SIP-600:
• 7600-SIP-600 Processor, page 2-10
• 7600-SIP-600 LEDs, page 2-10
STATUS
2
0
3
1
SPA INTERFACE
PROCESSOR
7600-SIP-400
101313
Ta b l e 2-8 7600-SIP-400 LED
LED Label Color State Meaning
STATUS Red On The 7600-SIP-400 has encountered an error.
Green On The 7600-SIP-400 is online.
Yellow On The 7600-SIP-400 is loading.
Off Off The 7600-SIP-400 is powered off.
Ta b l e 2-9 7600-SIP-400 Physical Specifications
Description Specifications
Physical dimensions The SIP occupies one module slot and can be operated in Cisco 7600
series routers.
Shipping weight 8 lb (3.64 kg)
Operating temperature 32 to 104°F (0 to 40°C)
Relative humidity 10 to 90 percent, noncondensing
Storage temperature –4 to 149°F (–20 to 65°C)
