Cisco Catalyst 6500 Series Hardware Installation Guide

3-44
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
2-Port Gigabit Ethernet SPA Overview
2-Port Gigabit Ethernet SPA LEDs
The 2-Port Gigabit Ethernet SPA has two types of LEDs: an A/L LED for each port and a STATUS LED,
as shown in
Figure 3-37.

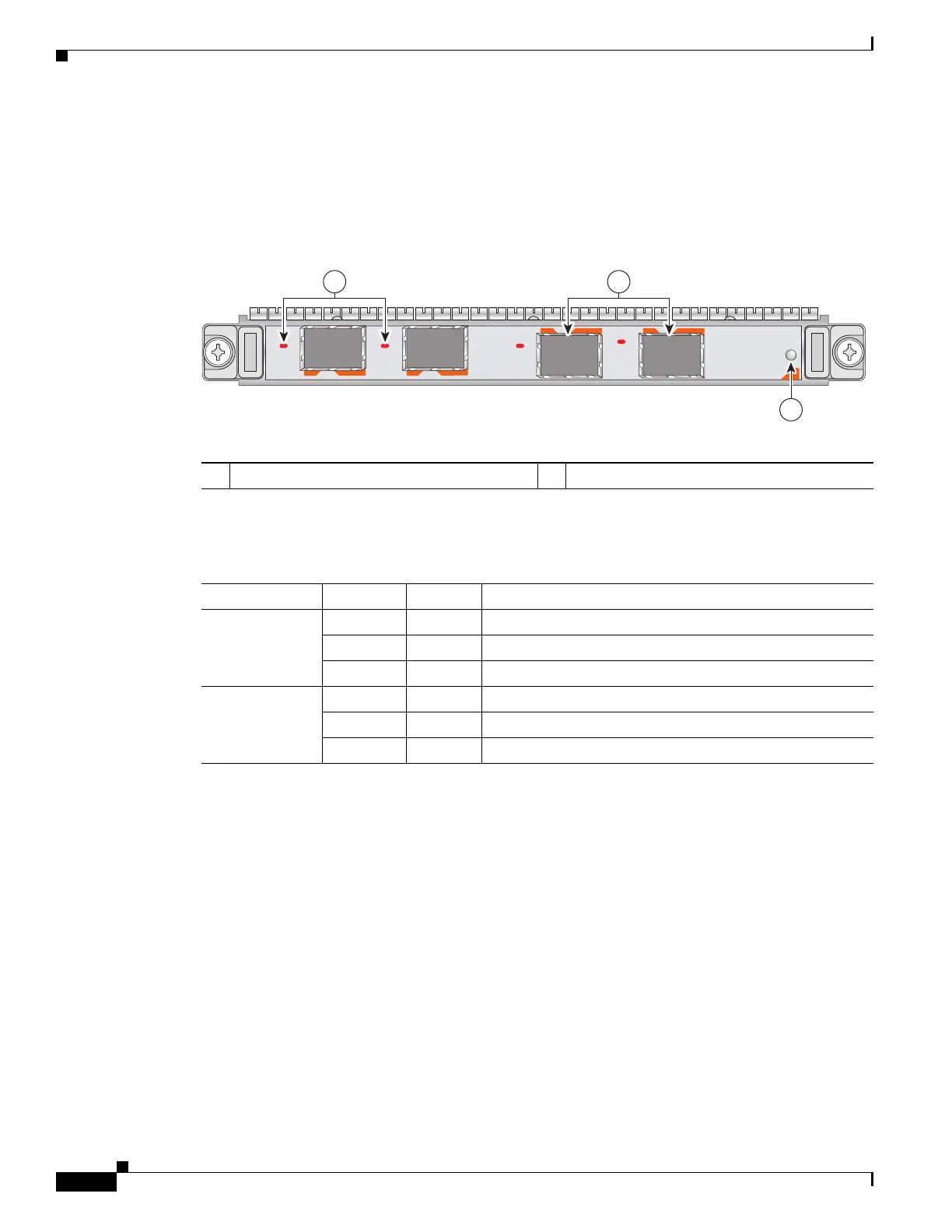

Figure 3-37 2-Port Gigabit Ethernet SPA Faceplate
Table 3-24 describes the 2-Port Gigabit Ethernet SPA LEDs.
1 A/L (Active/Link) LED 2 STATUS LED
STATUS
0
1
A/L A/L
SPA-2X1GE
0
1
A/L A/L
138041
2
1 3
Ta b l e 3-24 2-Port Gigabit Ethernet SPA LEDs
LED Label Color State Meaning
A/L Off Off Port is not enabled.
Green On Port is enabled and the link is up.
Amber On Port is enabled and the link is down.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and SPA is being configured.
