Cisco Catalyst 6500 Series Hardware Installation Guide

3-28
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
1-Port OC-192c/STM-64 POS/RPR SPA Overview
The following sections describe the 1-Port OC-192c/STM-64 POS/RPR SPA:
• 1-Port OC-192c/STM-64 POS/RPR SPA LEDs, page 3-28
• 1-Port OC-192c/STM-64 POS/RPR SPA Interface Specifications, page 3-29
• 1-Port OC-192c/STM-64 POS/RPR SPA Fixed Optical Transceiver, 40-Pin Connector, and Cables,
page 3-29
1-Port OC-192c/STM-64 POS/RPR SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR SPA has six LEDs, as shown in Figure 3-22.

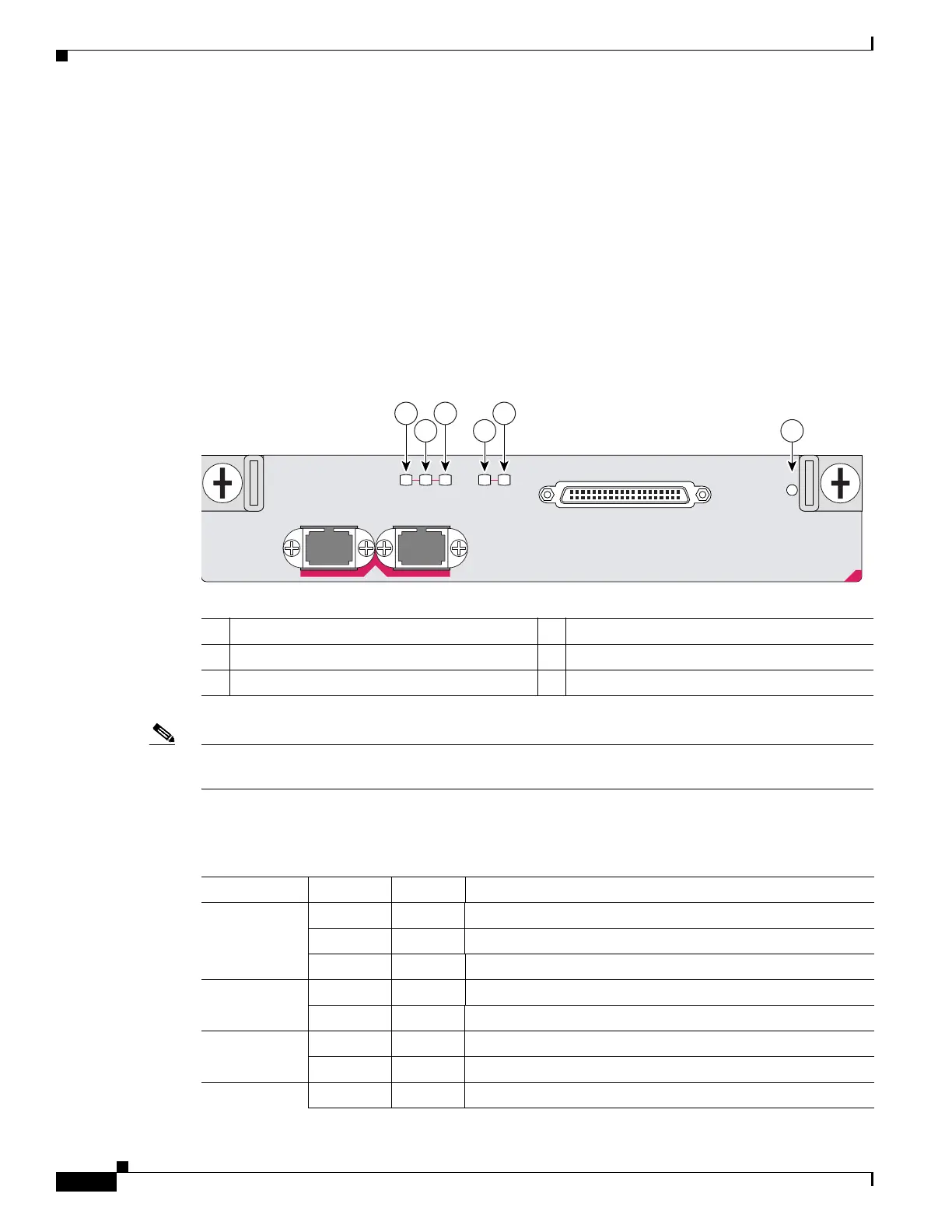

Figure 3-22 1-Port OC-192c/STM-64 POS/RPR SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. In
Cisco IOS Release 12.0(31)S, RPR/SRP mode is not supported.
Table 3-16 describes the 1-Port OC-192c/STM-64 POS/RPR SPA LEDs.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
SPA-OC192POS LR
STATUS
MATESYNC
PASSTHRU
WRAP
ACTIVE
CARRIER
0
1
2
3
4 6
5
129138
TX RX
Ta b l e 3-16 1-Port OC-192c/STM-64 POS/RPR SPA LEDs
LED Label Color State Meaning
WRAP Off Off Port is not in wrap mode.
Green On Port is in wrap mode somewhere on the ring.
Amber On Port is in wrap mode locally.
PASSTH RU Off Off Port is not in pass-thru mode.
Amber On Port is in pass-thru mode.
MATESYNC Off Off Mate port is not synchronized.
Green On Mate port is synchronized.
CARRIER Off Off Port is not enabled by software.
