Cisco 7600-SIP-600 Overview
• 7600-SIP-600 Physical Specifications, page 2-10
7600-SIP-600 Processor
Table 2-13 describes the processor on a 7600-SIP-600.
7600-SIP-600 LEDs
The 7600-SIP-600 has one LED as shown in Figure 2-7.

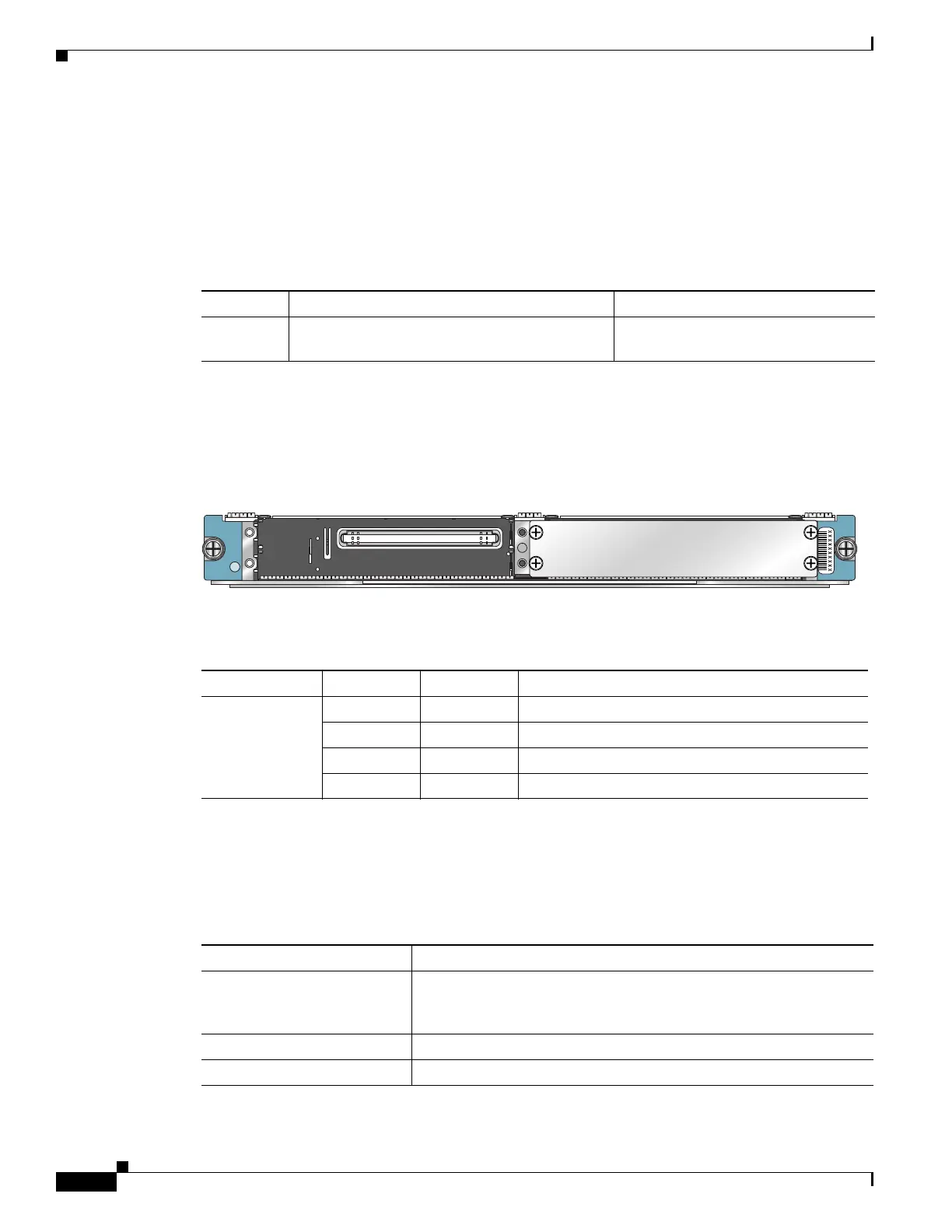

Figure 2-7 7600-SIP-600 Faceplate
Table 2-11 describes the 7600-SIP-600 LED.
7600-SIP-600 Physical Specifications
Table 2-12 describes the 7600-SIP-600 physical specifications.
Ta b l e 2-10 7600-SIP-600 Processor
Type Speed Description
CPU 400 megahertz (MHz) internal operating
frequency
Broadcom 1125 MIPS-based design
STATUS
2
0
3
1
SPA INTERFACE
PROCESSOR
7600-SIP-600
138127
Ta b l e 2-11 7600-SIP-600 LED
LED Label Color State Meaning
STATUS Red On The 7600-SIP-600 has encountered an error.
Green On The 7600-SIP-600 is online.
Yellow On The 7600-SIP-600 is loading.
— Off The 7600-SIP-600 is powered off.
Ta b l e 2-12 7600-SIP-600 Physical Specifications
Description Specifications
Physical dimensions The SIP occupies one module slot and can be operated in Cisco 7600
series routers. The Cisco 7600-SIP-600 supports installation of only a
single SPA in the first subslot.
Shipping weight 8 lb (3.64 kg)
Operating temperature 32 to 104°F (0 to 40°C)
