Cisco Catalyst 6500 Series Hardware Installation Guide

3-57
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
IPSec VPN SPA Overview
Note The 1000BASE-ZX SFP modules provide an optical power budget of 21.5 dB. You should measure your
cable plant with an optical loss test set to verify that the optical loss of the cable plant (including
connectors and splices) is less than or equal to 21.5 dB. The optical loss measurement must be performed
with a 1550-nm light source.
IPSec VPN SPA Overview
The following sections describe the IPSec VPN SPA:
• IPSec VPN SPA LEDs, page 3-57
IPSec VPN SPA LEDs
The IPSec VPN SPA has one LED, as shown in Figure 3-42.

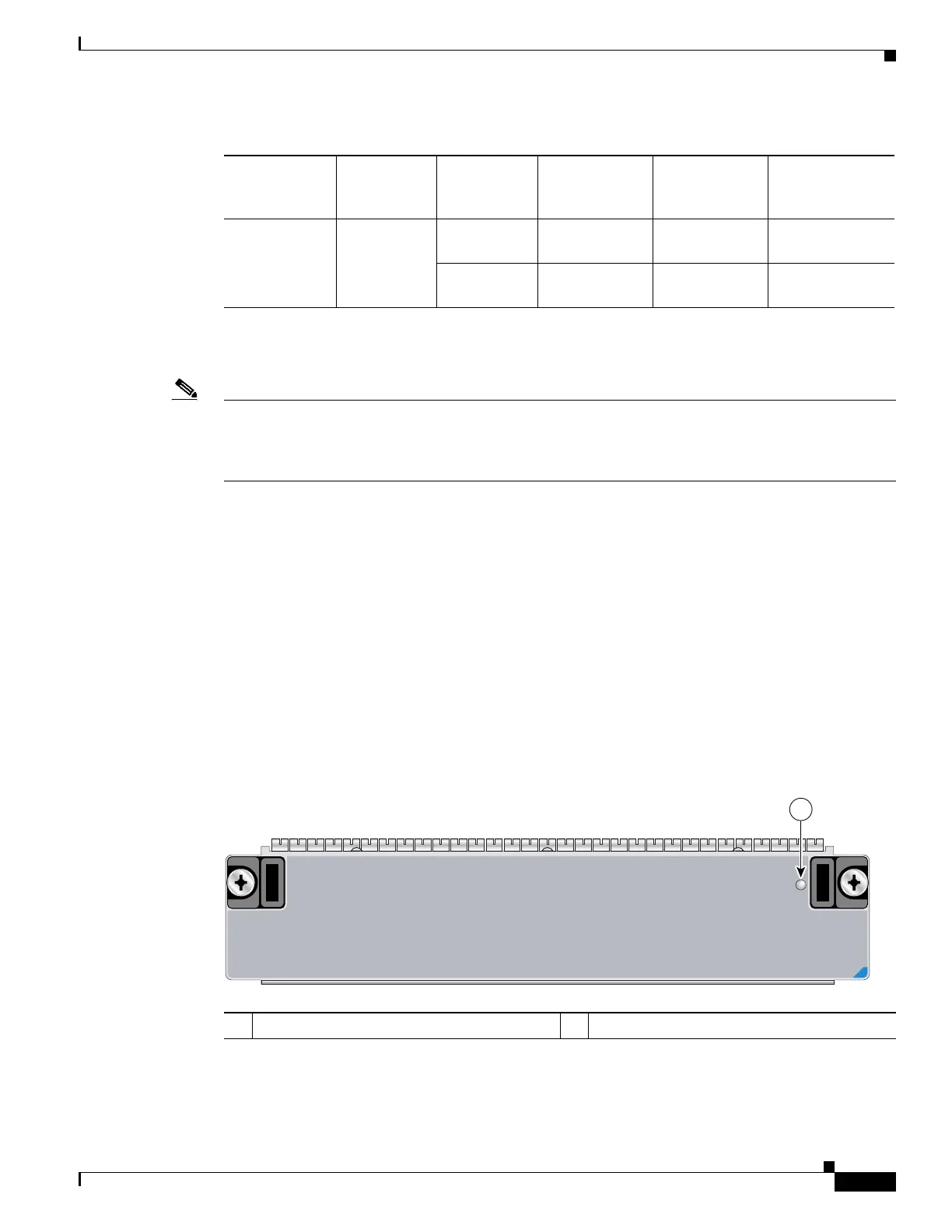

Figure 3-42 IPSec VPN SPA Faceplate
SFP-GE-Z 1550 SMF 9/10 — 49.7 miles
(80
km)
SMF
2
8 — 62.1 miles
(100
km)
1. Multimode fiber (MMF) only.
2. Dispersion-shifted single-mode fiber-optic cable.
Table 3-37 SFP Module Port Cabling Specifications (continued)
SFP Modules
Wavelength
(nm) Fiber Type
Core Size
(micron)
Modal
Bandwidth
(MHz/km)
Maximum
Cable Distance
1 STATUS LED
SPA-IPSEC-2GVPN SERVICES SPA
STATUS
129498
1
