Cisco Catalyst 6500 Series Hardware Installation Guide

3-36
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Overview
1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Overview
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA is a double-height SPA that is installed in a
SIP subslot. The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA provides SONET and SDH
network connectivity with a bandwidth of 9.95
Gbps.
For more information about SPA bandwidth, see the “Bandwidth Oversubscription” section in this
chapter. For more information about SPAs and their compatibility with SIPs and modular optics, see the
“Product Overview” chapter in this guide.
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA uses a single, 10-Gbps fixed optical receptacle
allowing a connection to multimode optical fiber. For more information on the optical fiber cables used
with this SPA, see the
“1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Fixed Optical Transceiver,
40-Pin Connector, and Cables” section on page 3-38.
The following sections describe the 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA:
• 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA LEDs, page 3-36
• 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Interface Specifications, page 3-37
• 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Fixed Optical Transceiver, 40-Pin Connector,
and Cables, page 3-38
1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA has six LEDs, as shown in Figure 3-28.

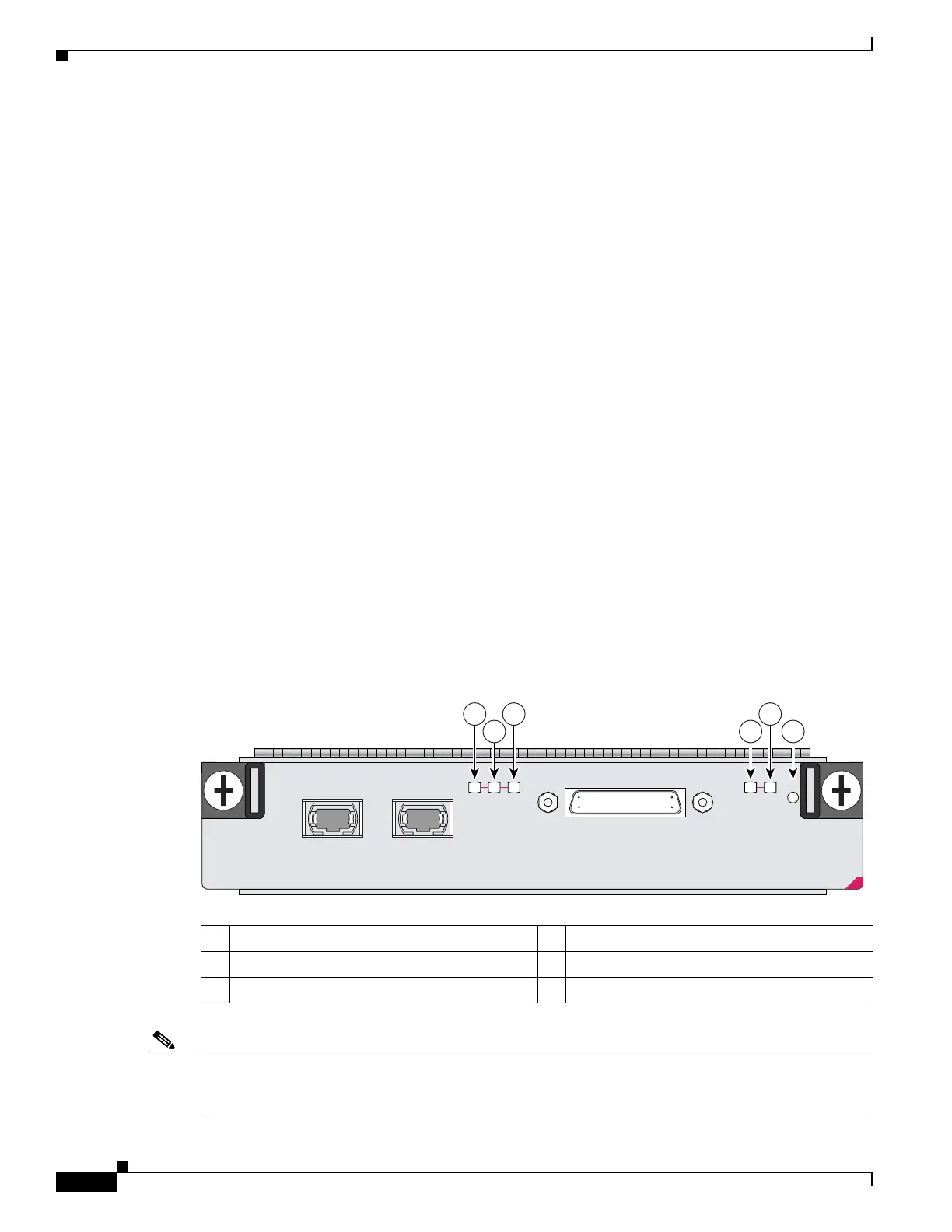

Figure 3-28 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. Support for
the RPR/SRP feature is dependent on the platform software release feature content. Verify support for
the RPR/SRP feature using SPA datasheets or by contacting your Cisco representative.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
SPA-OC192POS VSR
STATUS
MATESYNC
PASSTHRU
WRAP
ACTIVE
CARRIER
138989
TX RX
1
2
3 5
4 6
