3-11
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
1-Port Channelized STM-1/OC-3 SPA Overview

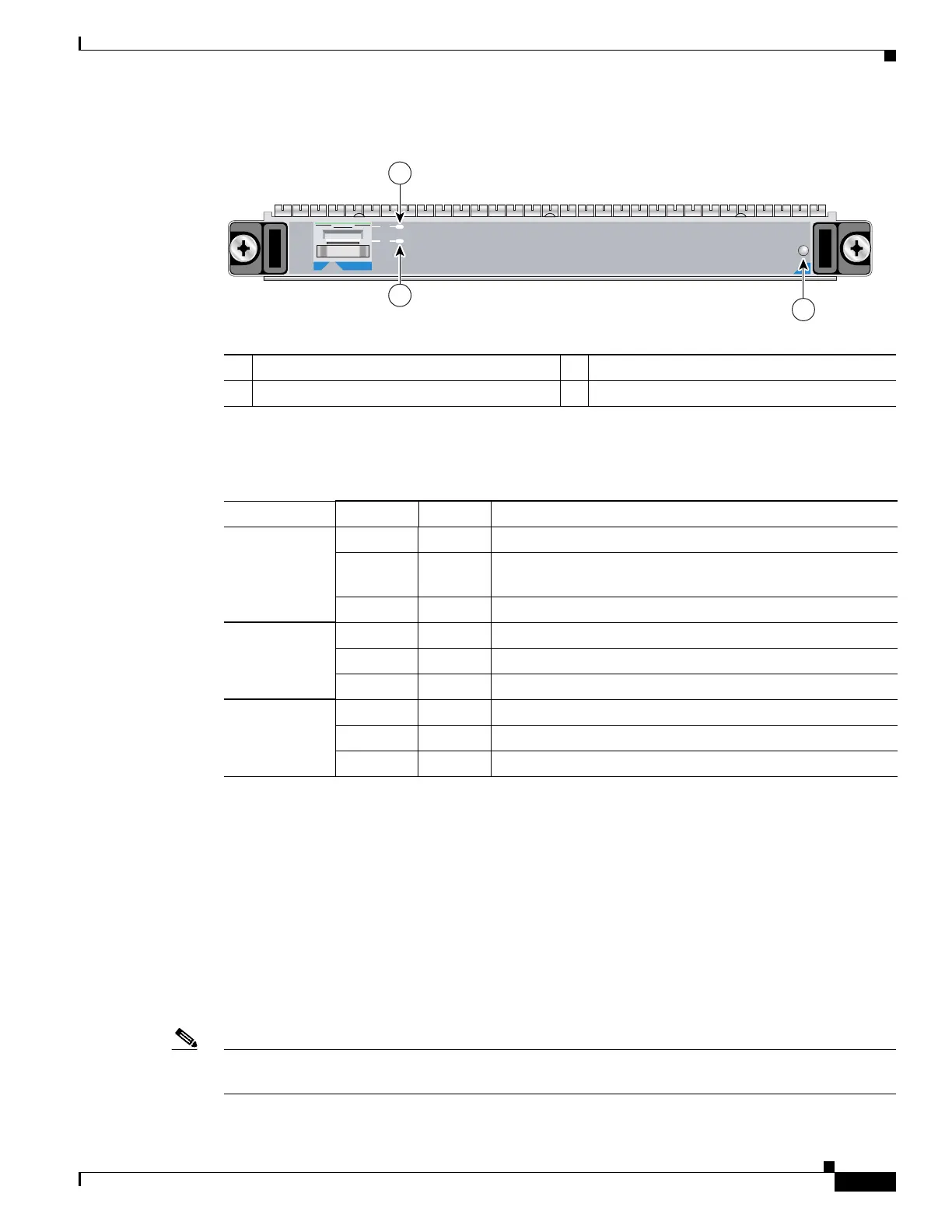

Figure 3-5 1-Port Channelized STM-1/OC-3 SPA Faceplate
Table 3-9 describes the 1-Port Channelized STM-1/OC-3 SPA LEDs.
1-Port Channelized STM-1/OC-3 SPA Interface Specifications
The framer processes incoming and outgoing SONET or SDH frames. The framer operates at OC-3/STM-1
line rates (155.52 Mbps).
Packet data is transported with a user-configured encapsulation (such as Point-to-Point Protocol [PPP])
and is mapped into the STS-3/STM-1 frame.
The 1-Port Channelized STM-1/OC-3 SPA interface is compliant with RFC 1619, PPP over
SONET/SDH, and RFC 1662, PPP in HDLC-like Framing. The 1-Port Channelized STM-1/OC-3 SPA
also provides support for SNMP v1 agent (RFC 1155–1157), and Management Information Base (MIB)
II (RFC 1213).
Note The 1-Port Channelized STM-1/OC-3 SPA supports Frame Relay Fragmentation (FRF.12) and Multilink
Fame Relay (MFR) features for Cisco IOS XR Software Release 3.6.0 and later releases.
1 C/A (Carrier/Alarm) LED 3 STATUS LED
2 A/L (Active Loopback) LED
SPA-1XCHSTM1/OC3
STATUS
138847
0
C/A
A/L
1
2
3
Ta b l e 3-9 1-Port Channelized STM-1/OC-3 SPA LEDs
LED Label Color State Meaning
C/A Off Off Port is not enabled by software.
Green On Port is enabled by software, and there is a valid T3 signal
without any alarms.
Amber On Port is enabled by software, and there is at least one alarm.
A/L Off Off Port is not enabled by software.
Green On Port is enabled by software, loopback is off.
Amber On Port is enabled by software, loopback is on.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and SPA is being configured.
