Cisco Catalyst 6500 Series Hardware Installation Guide

3-34
Catalyst 6500 Series Switch SIP, SSC, and SPA Hardware Installation Guide
OL-9041-04
Chapter 3 Catalyst 6500 Series Switch SPA Overview
1-Port OC-192c/STM-64 POS/RPR XFP SPA Overview

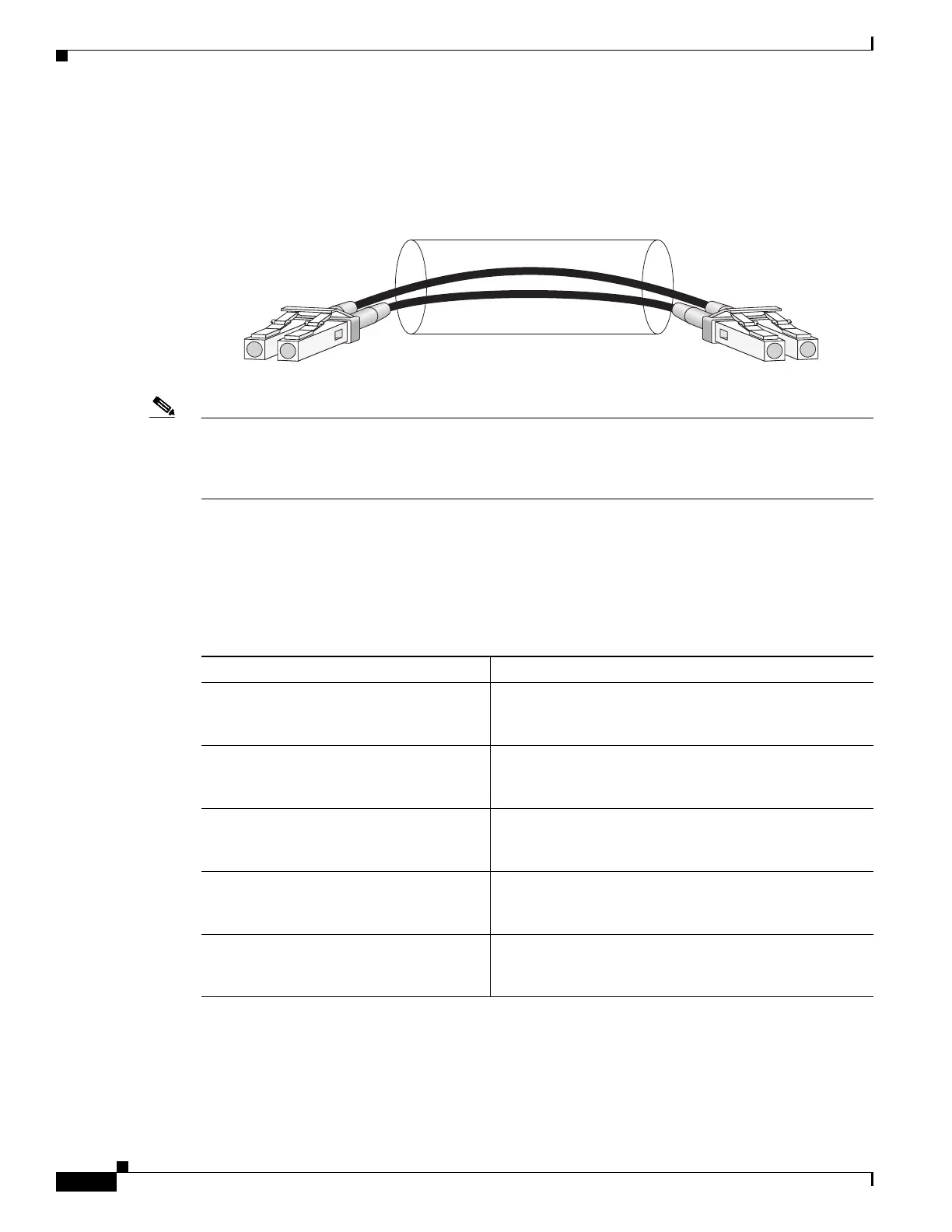

Figure 3-26 shows the cable type for use with the XFP optical transceiver module on the 1-Port
OC-192c/STM-64 POS/RPR XFP SPA.
Figure 3-26 LC-Type Cable for the XFP Optical Transceiver Modules
Note The 40-pin connector on the 1-Port OC-192c/STM-64 POS/RPR XFP SPA is used for resilient packet
ring (RPR) connections. Support for the RPR feature is dependent on the platform software release
feature content. Verify support for the RPR feature using SPA datasheets or by contacting your Cisco
representative.
OC-192 Module Connections
Table 3-18 shows the OC-192 specifications for use with the 1-Port OC-192c/STM-64 POS/RPR XFP
SPA.
/ / / /
/ /
TXRX
84929
Ta b l e 3-18 OC-192 Specifications
Specification Description
Wavelength OC-192 SR-1: 1290 nm to 1330 nm
OC-192 IR-2: 1530 nm to 1565 nm
OC-192 LR-2: 1530 nm to 1565 nm
Cabling distance (maximum) OC-192 SR-1: 2 km (1.2 miles)
OC-192 IR-2: 40 km (24.8 miles)
OC-192 LR-2: 50 miles (80 km)
Operating case temperature range OC-192 SR-1: 23 to 158 degrees F (–5 to 70 degrees C)
OC-192 IR-2: 23 to 158 degrees F (–5 to 70 degrees C)
OC-192 LR-2: 23 to 158 degrees F (–5 to 70 degrees C)
Tx Power OC-192 SR-1: –6 dBm –1 dBm
OC-192 IR-2: –1 dBm +2 dBm
OC-192 LR-2: 0 to +4 dBm
Receiver Sensitivity (maximum) OC-192 SR-1: –11 dBm
OC-192 IR-2: –14 dBm
OC-192 LR-2: –24 dBm
