11 Before connection, carefully clean the optical connectors on both fiber and
module according to the procedures in Care and Cleaning of Optical Connectors
(on page 103).

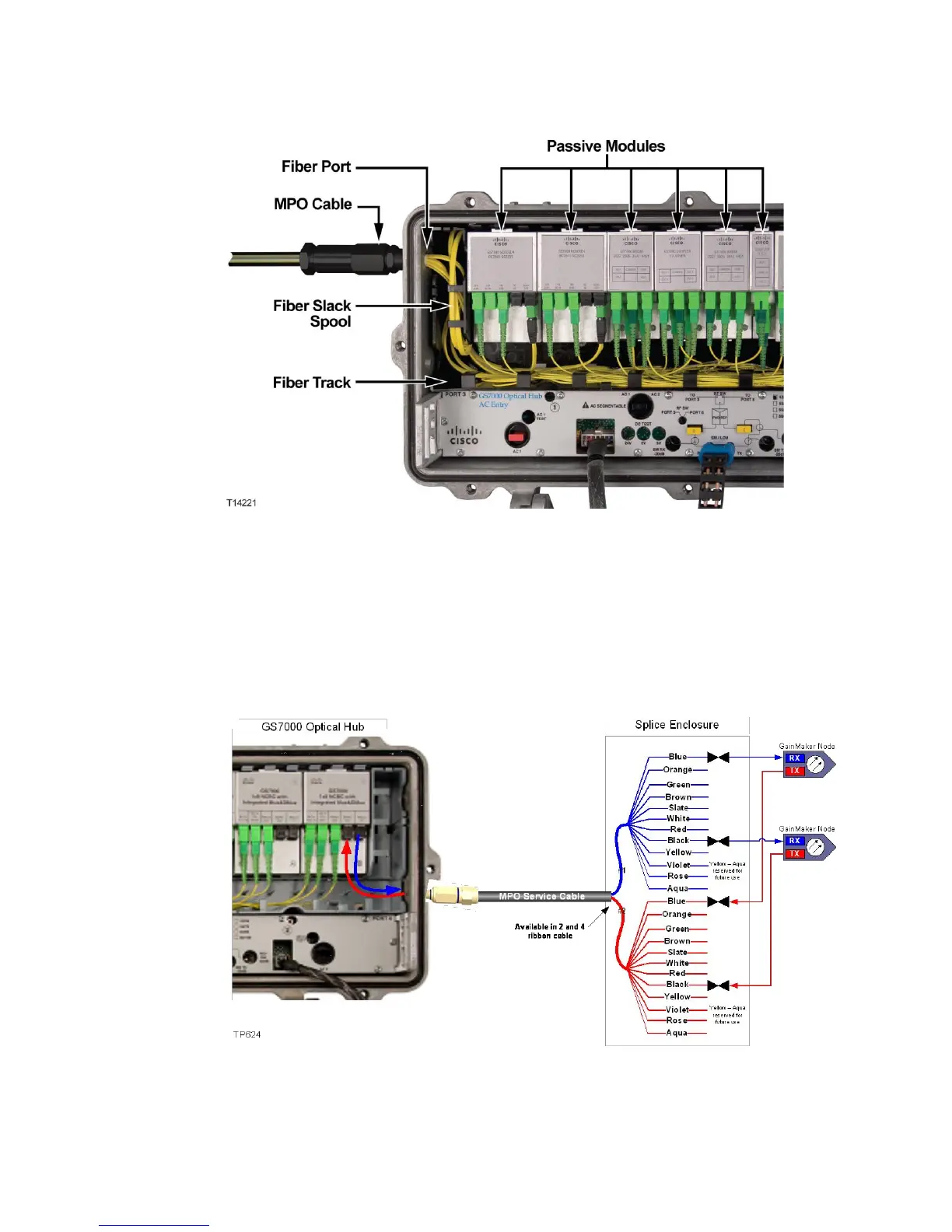

12 Open the passive module fiber connector cover. Carefully slide the fiber
connector into the module connector until it clicks.
13 Repeat steps 11 and 12 for each passive module.
14 Splice fiber pigtail of the MPO optical fiber cable to your splice enclosure.
15 Continue to Fiber Optic Connections - Active to Passive Modules (on page 33).
