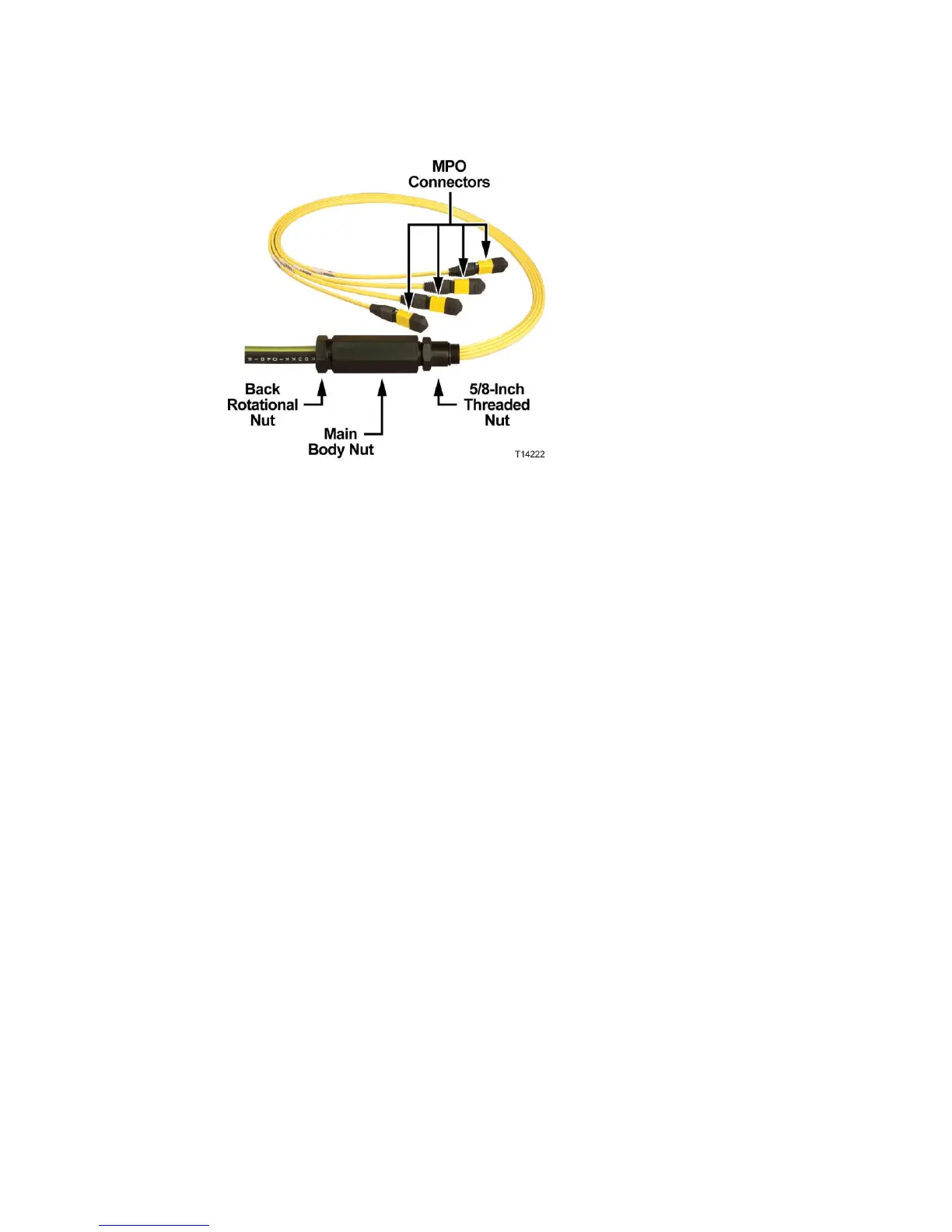

5 Hold the individual fiber cables to prevent them from rotating and carefully
thread the 5/8-inch threaded nut into the threaded hole of the fiber port.
Tighten to 20 to 25 ft-lbs (27.1 to 33.9 Nm).
6 Firmly tighten the main body nut against the 5/8-inch threaded nut, and then
the back rotational nut against the main body nut.
7 Push the heat shrink tubing over the connector body and fiber port and shrink in
place.
8 Identify the MPO fibers connectors according to their labels and determine to
which passive device each one will connect.
9 Carefully wind the individual fiber cables around the fiber slack spool. Be sure
to leave enough cable length so that each connector can reach its intended
passive module.
10 Route each fiber to its intended module through the fiber track as shown.
