Chapter 6: Configuring VLANs
Defining VLAN Membership
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
6
– Untagged — Indicates the interface is an untagged VLAN member. Packets forwarded by
the interface are untagged.
– Tagged — Indicates the interface is a tagged member of a VLAN. All packets forwarded by
the interface are tagged. The packets contain VLAN information.
– Exclude — Excludes the interface from the VLAN. However, the interface can be added to
the VLAN through GARP.
– Forbidden — Denies the interface VLAN membership, even if GARP indicates the port is
to be added.
2. Define the relevant fields.
3. Click Apply. VLAN membership is defined, and the device is updated.
Modifying VLAN Membership
1. Click Bridging > VLAN Management > Membership. The VLAN Membership Page opens:
2. Click the Edit button. The Edit VLAN Membership Page opens:

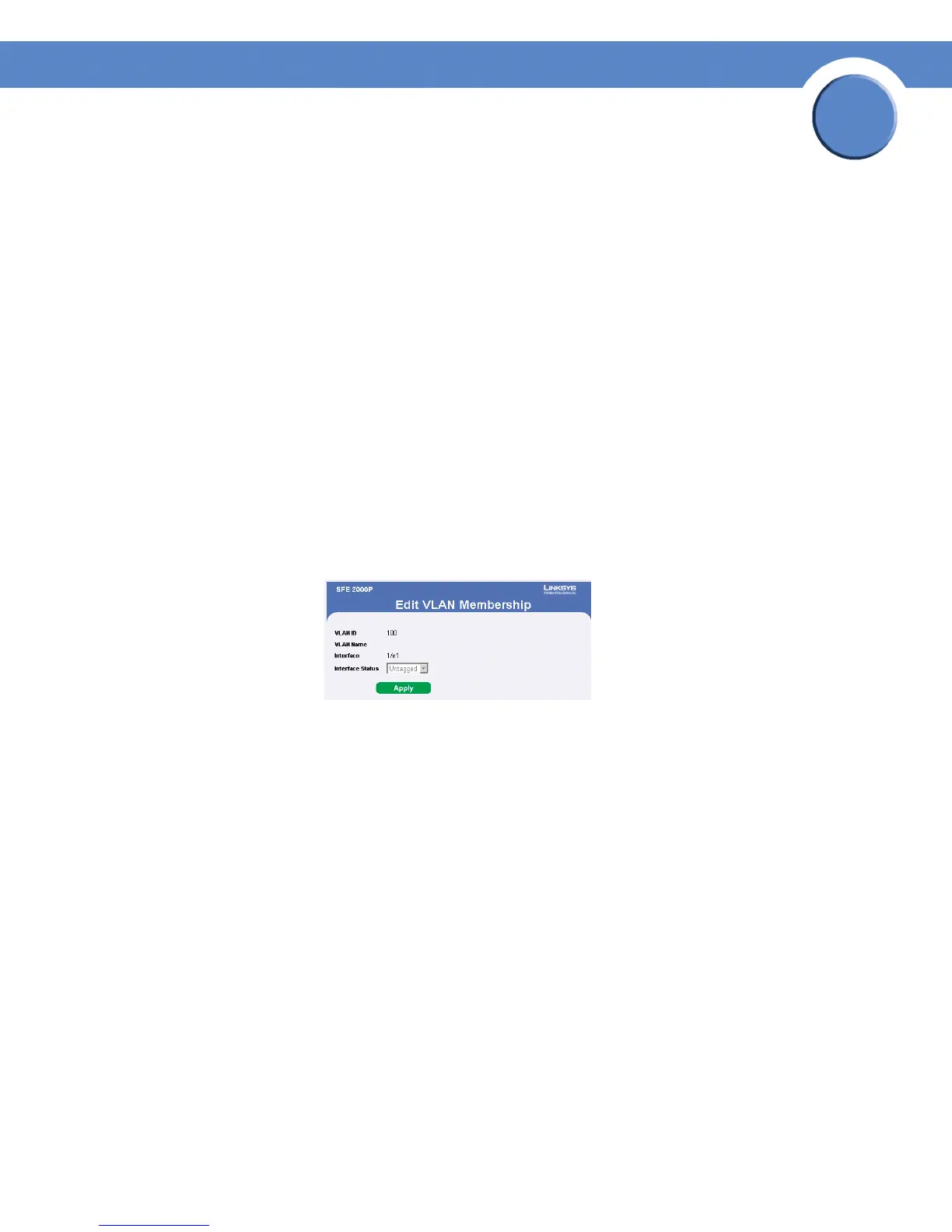

Edit VLAN Membership Page
The Edit VLAN Membership Page contains the following fields:
• VLAN ID — Displays the VLAN ID.
• VLAN Name — Displays the VLAN name.
• Interface — Displays the port or LAG attached to the VLAN.
• Interface Status — Displays the current interface status.
3. Define the relevant fields.
4. Click Apply. VLAN Membership is modified, and the device is updated.
