Chapter 6: Configuring VLANs
Protocol Group
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
6
Protocol Group
The Protocol Group Page contains information defining protocol names and the VLAN Ethernet type.
Interfaces can be classified as a specific protocol based interface.
NOTE: This setting is relevant only in Layer 2 mode.
1. Click Bridging > VLAN Management > Protocol Group. The Protocol Group Page opens:

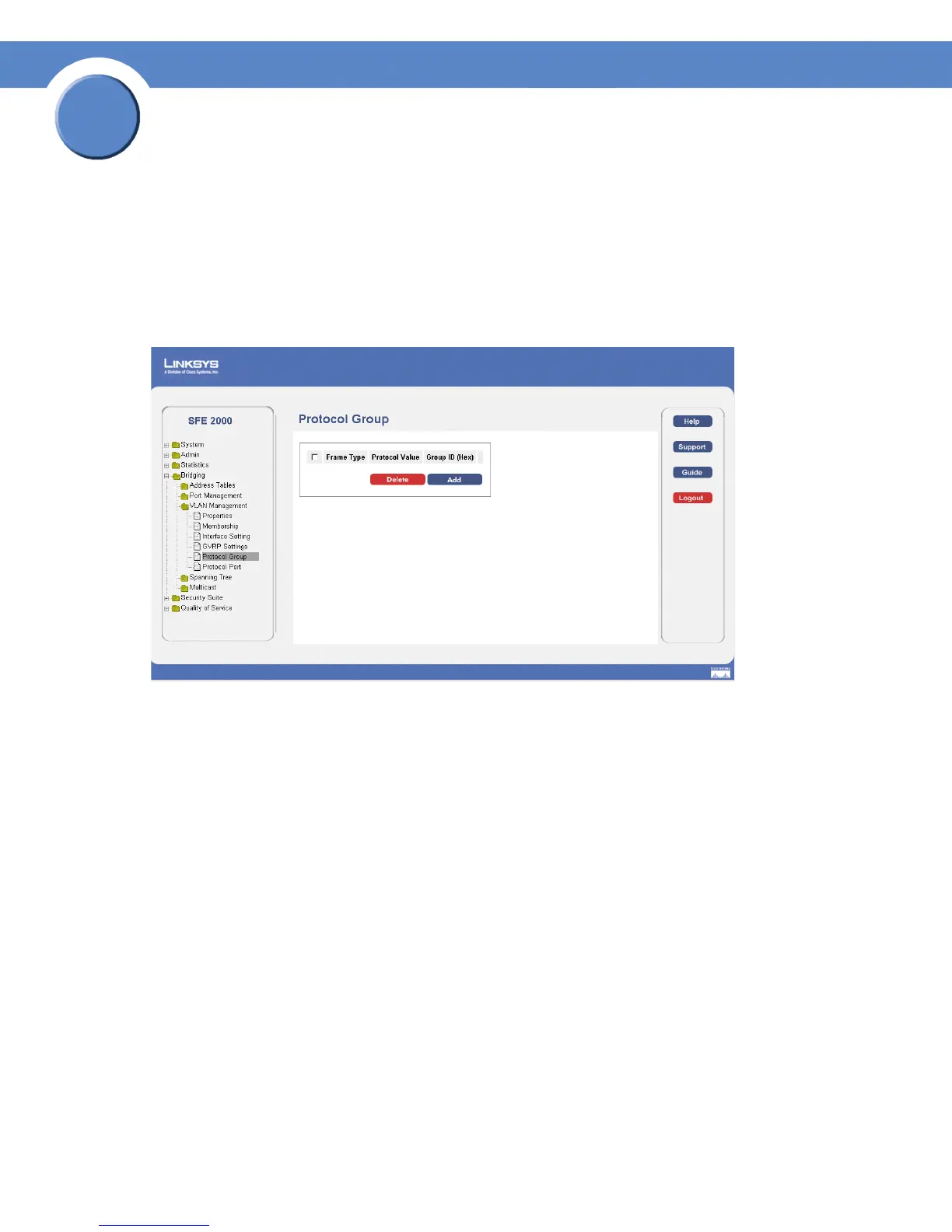

Protocol Group Page
The Protocol Group Page contains the following fields:
• Frame Type — Displays the packet type. Possible field values are Ethernet, RFC1042, and LLC
Other.
• Protocol Value — Displays the User-defined protocol name.
• Group ID (Hex) — Defines the Protocol group ID to which the interface is added. Range is 1-
2147483647.
2. Click the Add Button. The Add Protocol Group Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
