– Permit — Forwards packets which meet the ACL criteria.
– Deny — Drops packets which meet the ACL criteria.
– Shutdown — Drops packet that meet the ACL criteria, and disables the port to which the
packet was
addressed.
3. Define the relevant fields.
4. Click Apply. The MAC Based ACL is defined, and the device is updated.
Adding Rule to MAC Based ACL
1. Select an existing ACL.
2. Click the Add Rule button. The Add Rule Page opens:

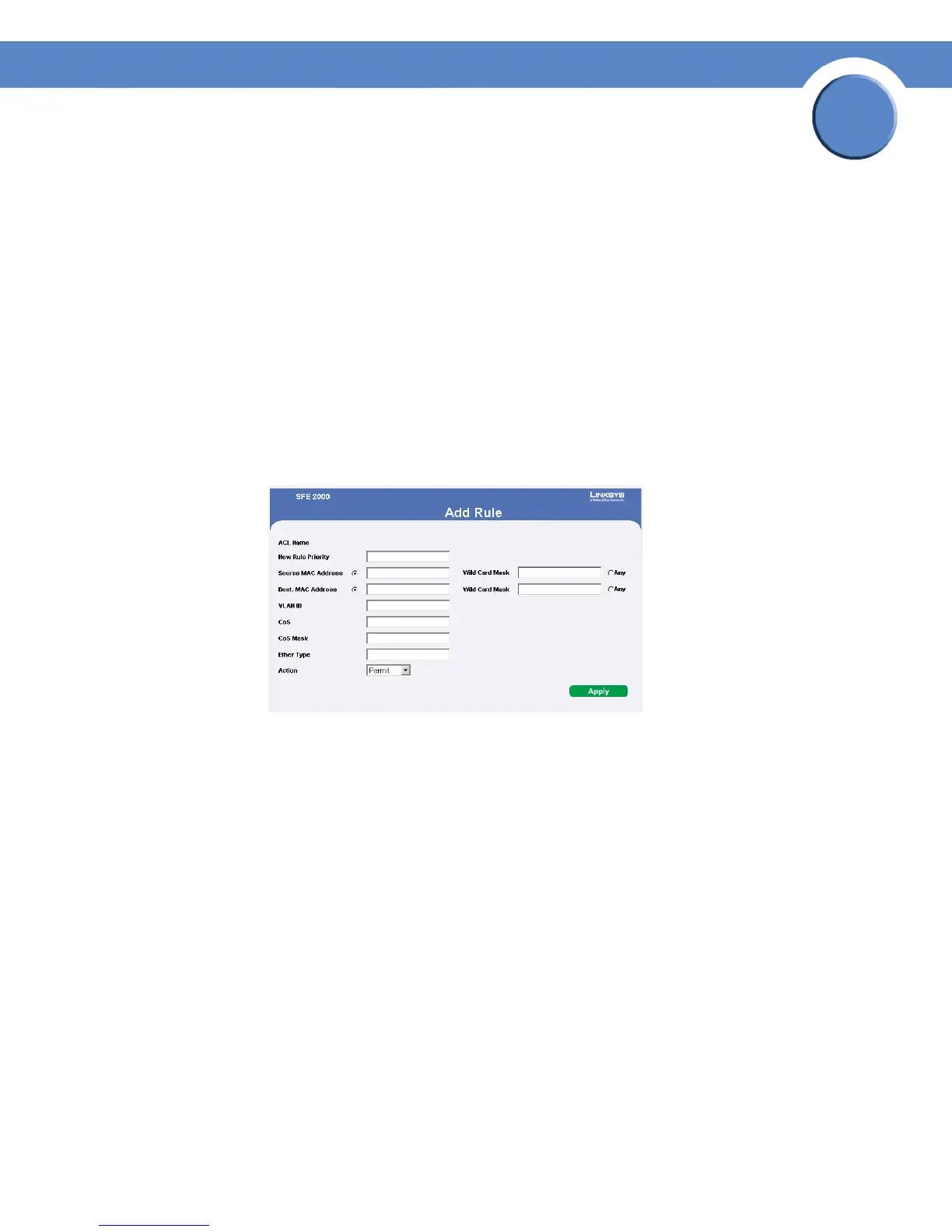

Add Rule Page
3. Define the relevant fields.
4. Click Apply. The ACL Rule is defined, and the device is updated.
Defining IP Based ACL
The Defining IP Based ACL page contains information for defining IP Based ACLs, including defining
the ACEs defined for IP Based ACLs.
1. Click Security Suite >Access Control > IP Based ACL. The IP Based ACL Page opens:
