• Frame Type — Displays the packet type. Possible field values are Ethernet, RFC1042, and LLC
Other.
• Protocol Value — Displays the User-defined protocol value.
• Group ID (Hex) — Defines the Protocol group ID to which the interface is added.
3. Define the relevant fields.
4. Click Apply. The Protocol group is modified, and the device is updated.
Protocol Port
The Protocol Port Page adds interfaces to Protocol groups. To define the protocol port:
1. Click Bridging > VLAN Management > Protocol Port. The Protocol Port Page opens:

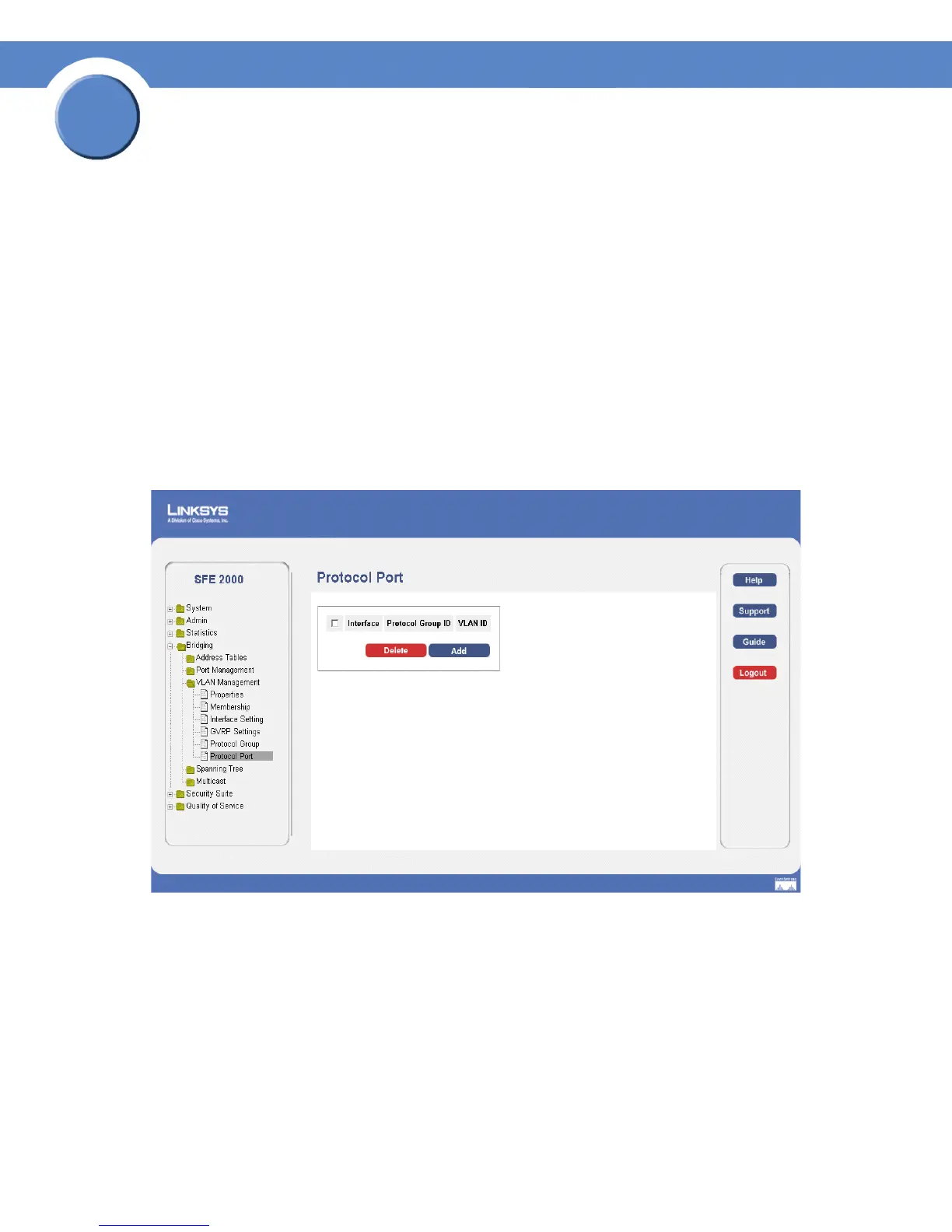

Protocol Port Page
The Protocol Port Page contains the following fields.
• Interface — Port or LAG number added to a protocol group.
• Protocol Group ID — Protocol group ID to which the interface is added. Protocol group IDs are
defined in the Protocol Group Table.
• VLAN ID — Attaches the interface to a user-defined VLAN ID. Protocol ports can either be
attached to a VLAN ID or a VLAN name.
2. Click the Add Button. The Add Protocol Port to VLAN Page opens:
To Next Page
