Cisco SGE2000 User Manual

230
Chapter 14: Managing System Logs
Viewing the Device Memory Logs
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
14
2. Click the Clear Logs button. The message logs are cleared.
Viewing the Flash Logs
The Flash Page contains information about log entries saved to the Log File in FLASH, including the
time the log was generated, the log severity, and a description of the log message. The Message Log is
available after reboot. To view the Flash Logs:

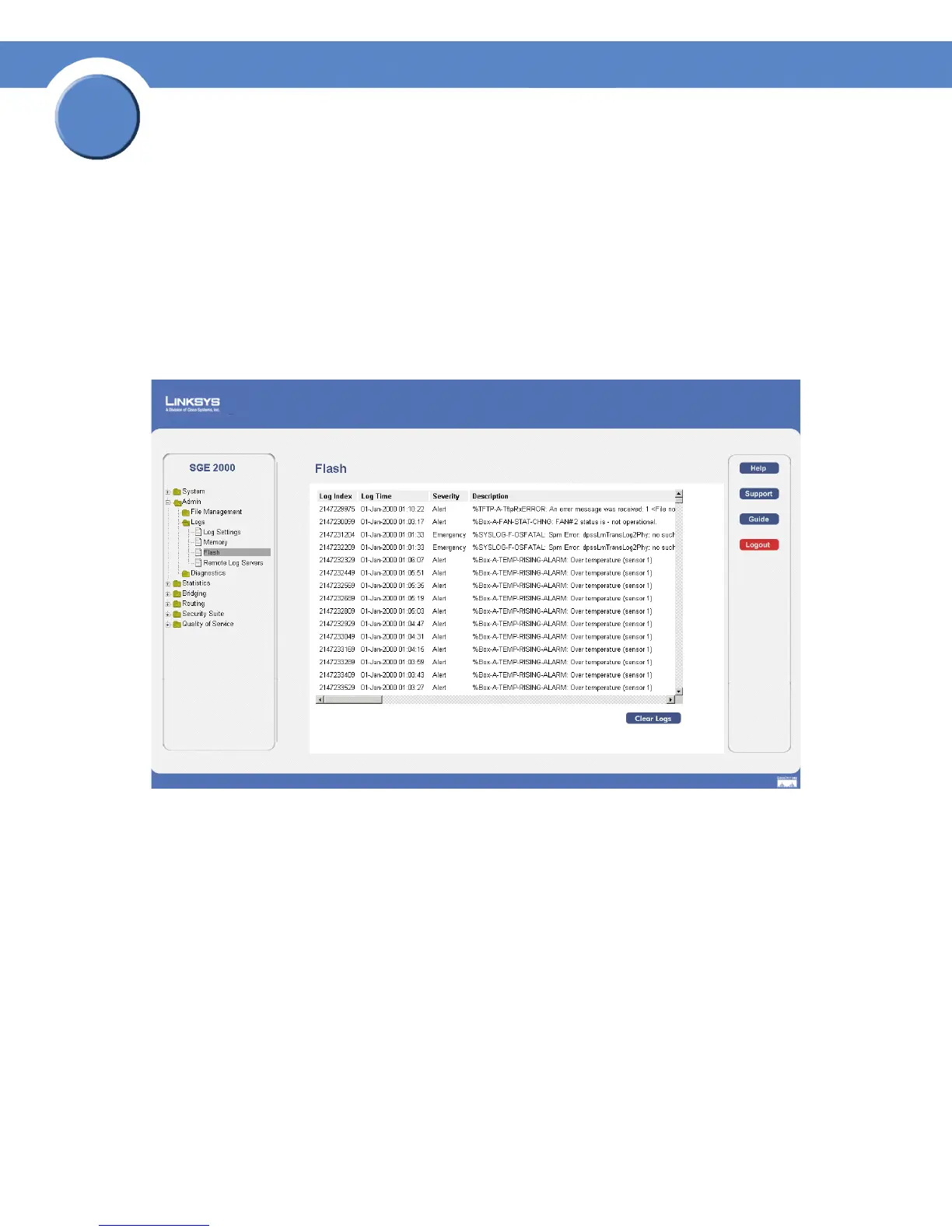

1. Click Admin > Logs > Flash. The Flash Page opens:
Flash Page
The Flash Page contains the following fields:
• Log Index — Displays the log number.
• Log Time — Displays the time at which the log was generated.
• Severity — Displays the log severity.
• Description — Displays the log message text.
Clearing Message Logs
Message Logs can be cleared from the FLASH Log Page. To clear the Flash Page:
1. Click Admin > Logs > FLASH. The Flash Page opens.
2. Click Clear Logs. The message logs are cleared.

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
