Cisco SGE2000 User Manual

140
Chapter 7: Configuring IP Information
Configuring Layer 3
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
7

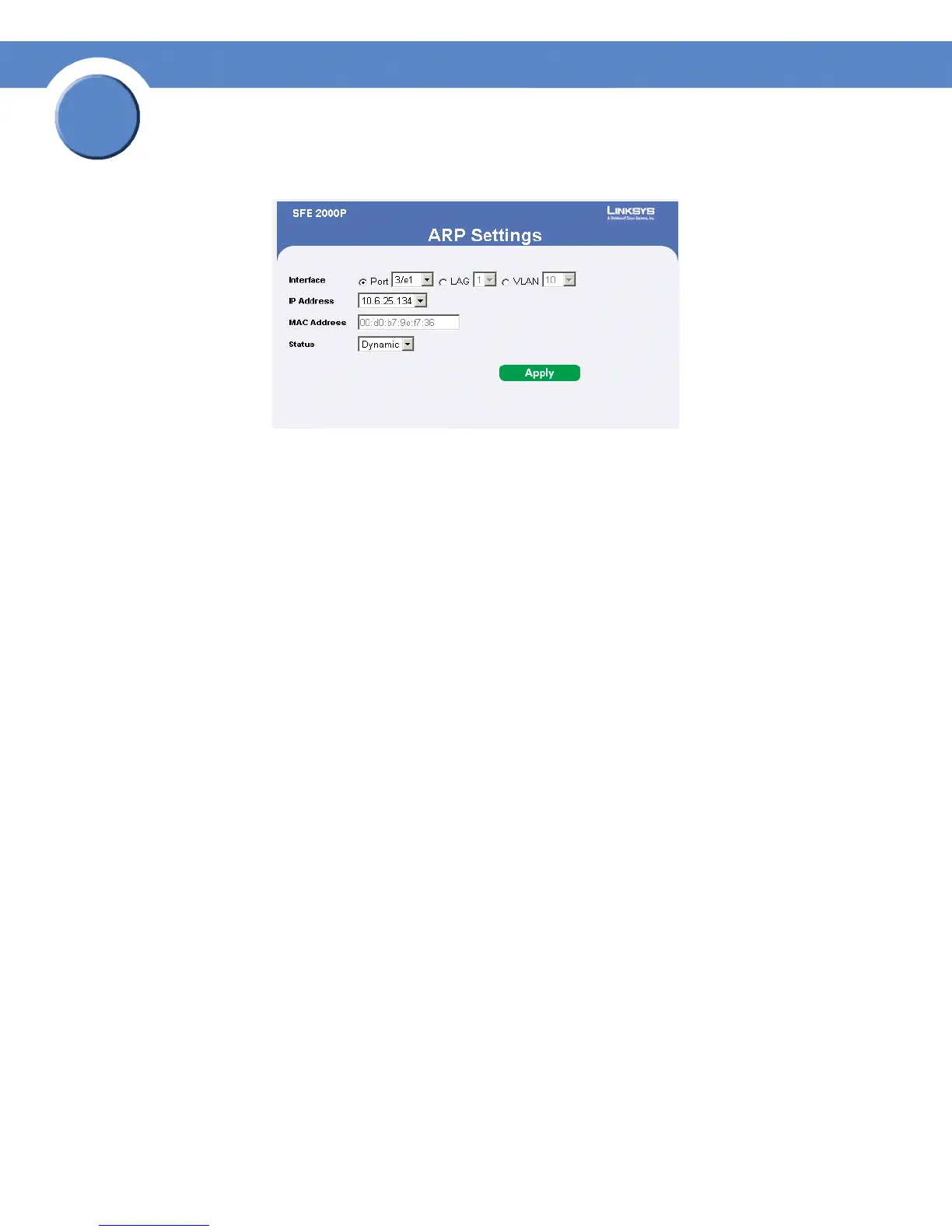

ARP Settings Page
The ARP Settings Page contains the following fields:
• Interface — Indicates the interface connected to the device.
• IP Address — Indicates the station IP address, which is associated with the MAC address filled in
below.
• MAC Address — Indicates the station MAC address, which is associated in the ARP table with the
IP address.
• Status — Indicates the ARP Table entry status. Possible field values are:
– Dynamic — Indicates the ARP entry was learned dynamically.
– Static — Indicates the ARP entry is a static entry.
3. Define the relevant fields.
4. Click Apply. The ARP Settings are modified, and the device is updated.
Defining IP Routing
Once the switch has been defined as a router, statics routes can be defined. To define IP Routing:
1. Click Routing > IP Routing. The IP Routing Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
