Cisco SGE2000 User Manual

141
Chapter 7: Configuring IP Information
Configuring Layer 3
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
7

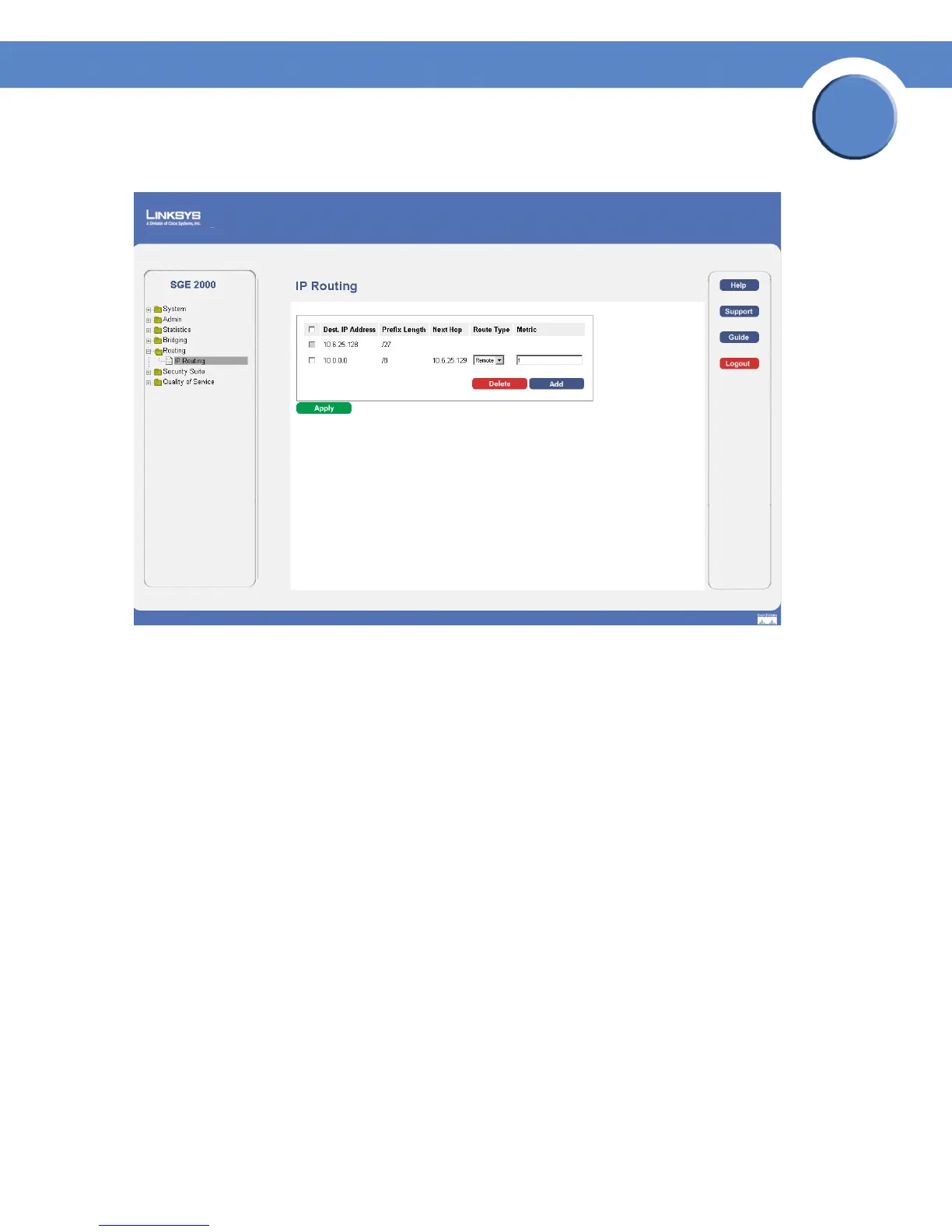

IP Routing Page
The IP Routing Page contains the following fields:
• Dest. IP Address — Defines the destination IP address.
• Prefix Length —Defines the IP route prefix for the destination IP. The prefix length must be
preceded by a forward slash (/).
• Next Hop — Indicates the next hop’s IP address or IP alias on the route.
• Route Type —Defines the route type. The possible field values are:
– Reject — Rejects the route, and stops routing to the destination network via all gateways.
– Remote — Indicates the route is a remote path.
• Metric — Indicates the administrative distance to the next hop. The range is 1-255. The default
value is 1.
2. Click the Add button. The IP Static Route Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
