Chapter 12: Configuring Quality of Service
Defining QoS Basic Mode
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
12
Defining QoS Basic Mode

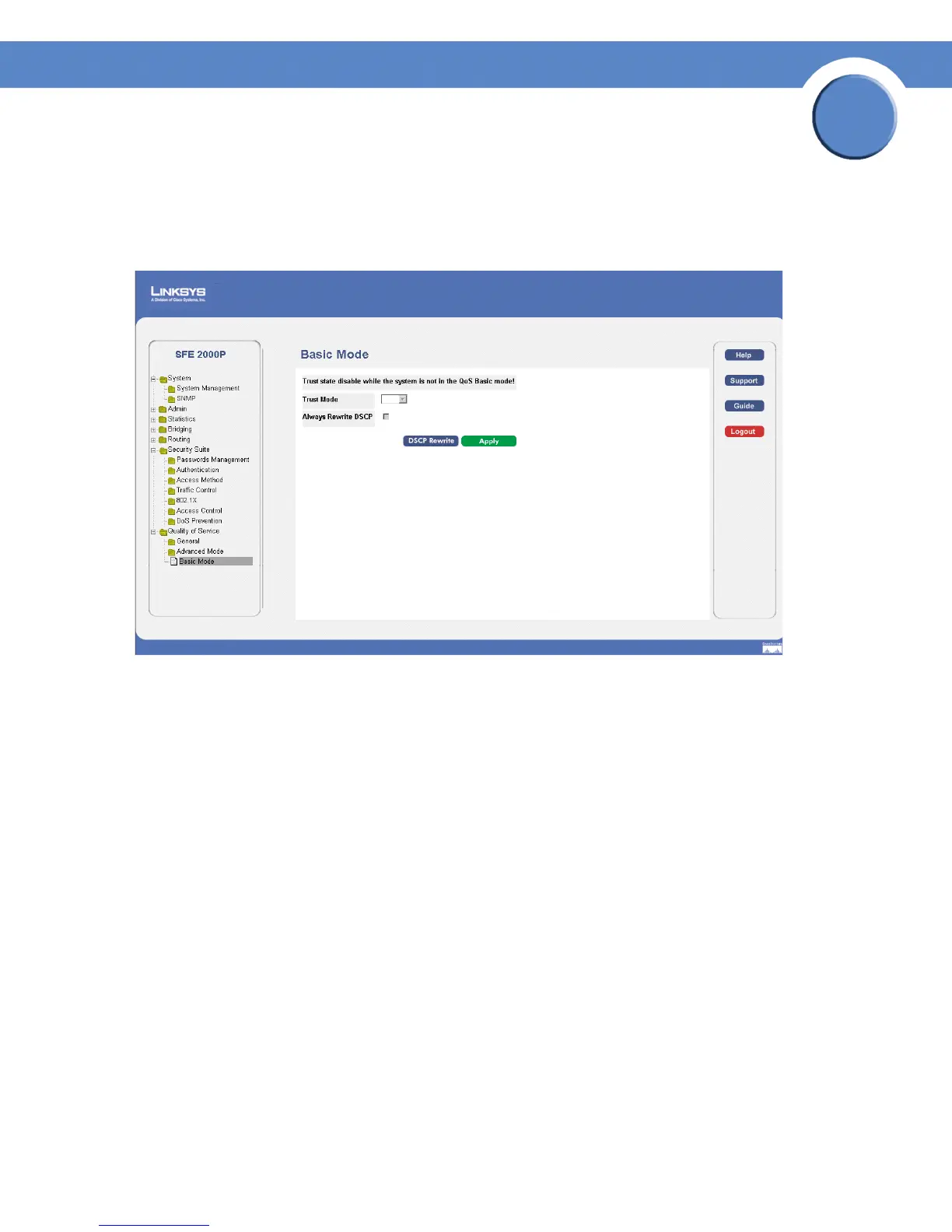

1. Click Quality of Service > Basic Mode. The Basic Mode Page opens:
Basic Mode Page
The Basic Mode Page contains the following fields:
• Trust Mode — Displays the trust mode. If a packet’s CoS tag and DSCP tag, and TCP/UDP
mapping are mapped to different queues, the Trust Mode determines the queue to which the packet is
assigned. Possible values are:
– CoS — Sets trust mode to CoS on the device. The CoS mapping determines the packet
queue
– DSCP — Sets trust mode to DSCP on the device. The DSCP mapping determines the packet
queue.
2. Click the DSCP Rewrite button. The DSCP Mapping Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
